| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C04_001T01_9000003126_21161cztM0_level2.evt | modeM0/AS1C04_001T01_9000003126_21161cztM0_level2_quad_clean.evt |
| Size (bytes) | 503,199,360 | 132,393,600 |
| Size | 479.9 MB | 126.3 MB |
| Events in quadrant A | 3,007,237 | 910,176 |
| Events in quadrant B | 3,481,422 | 928,864 |
| Events in quadrant C | 3,219,912 | 912,783 |
| Events in quadrant D | 5,122,512 | 837,495 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12878 | 2 |
| B | 0 | 14481 | 2 |
| C | 0 | 13480 | 3 |
| D | 0 | 19444 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6024 | 12 | 0.199203% |
| B | 6024 | 51 | 0.846614% |
| C | 6023 | 70 | 1.162212% |
| D | 6023 | 522 | 8.666777% |

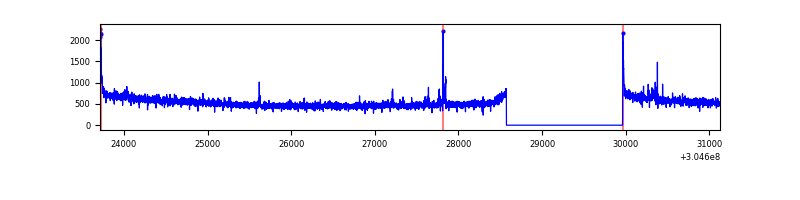

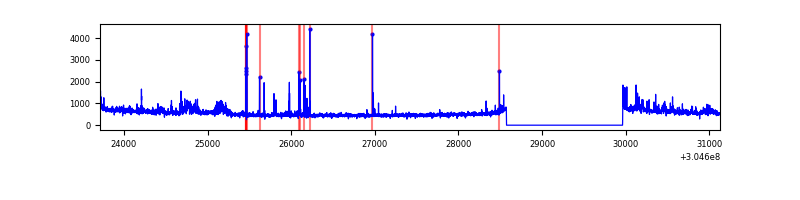

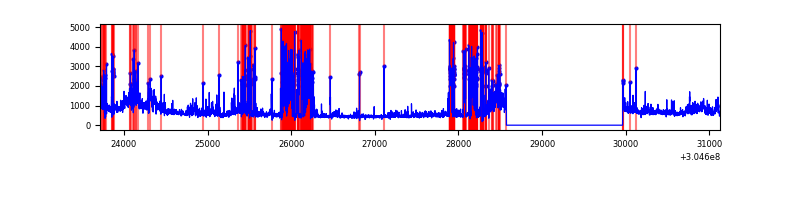

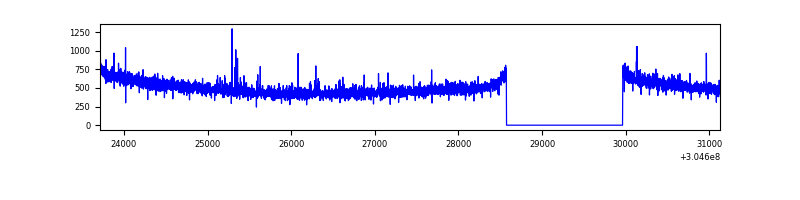

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7414 | 6025 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7414 | 6025 | 12 | 12 | 0.16% | 0.20% |  |
| C | 7413 | 6024 | 7 | 7 | 0.09% | 0.12% |  |
| D | 7413 | 6023 | 394 | 394 | 5.31% | 6.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 12409 | 76.16 | 774 | 760 | 153.0 |
| A | 13 | 254 | 9266 | 55.61 | 774 | 760 | 153.0 |
| A | 5 | 16 | 7621 | 44.86 | 774 | 760 | 153.0 |
| B | 0 | 244 | 172541 | 1207.51 | 783 | 765 | 142.3 |
| B | 0 | 182 | 58578 | 406.4 | 783 | 765 | 142.3 |
| B | 0 | 190 | 42736 | 295.04 | 783 | 765 | 142.3 |
| C | 14 | 238 | 121640 | 682.56 | 768 | 776 | 177.1 |
| C | 3 | 233 | 52202 | 290.42 | 768 | 776 | 177.1 |
| C | 0 | 10 | 42007 | 232.84 | 768 | 776 | 177.1 |
| D | 1 | 52 | 881205 | 4982.27 | 740 | 720 | 176.7 |
| D | 1 | 20 | 476218 | 2690.63 | 740 | 720 | 176.7 |
| D | 2 | 14 | 345255 | 1949.57 | 740 | 720 | 176.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

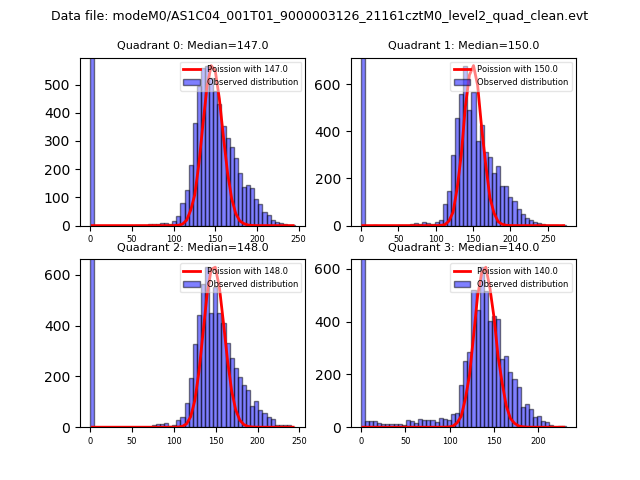

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

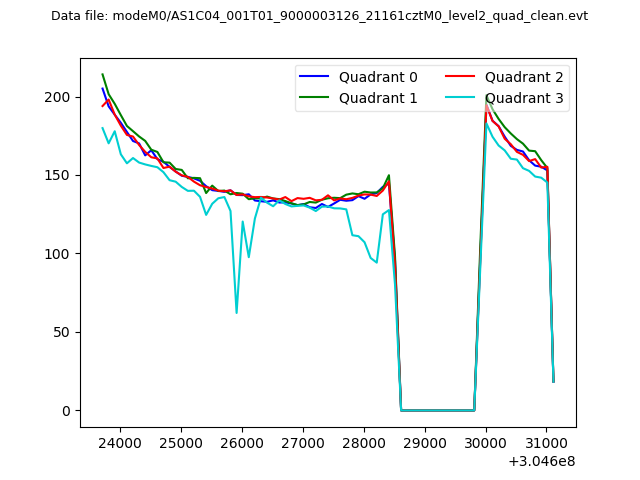

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

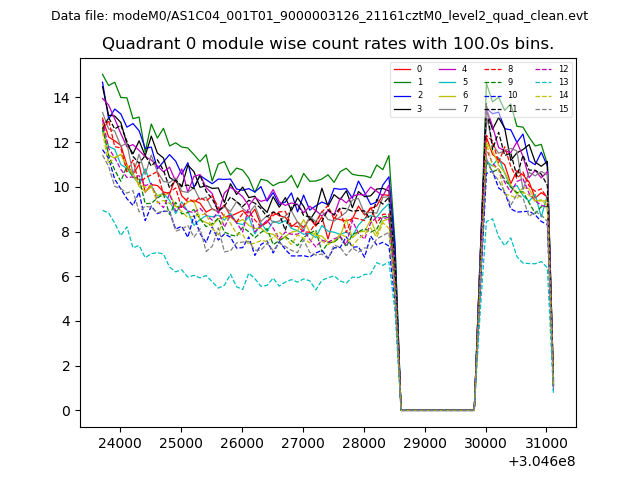

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

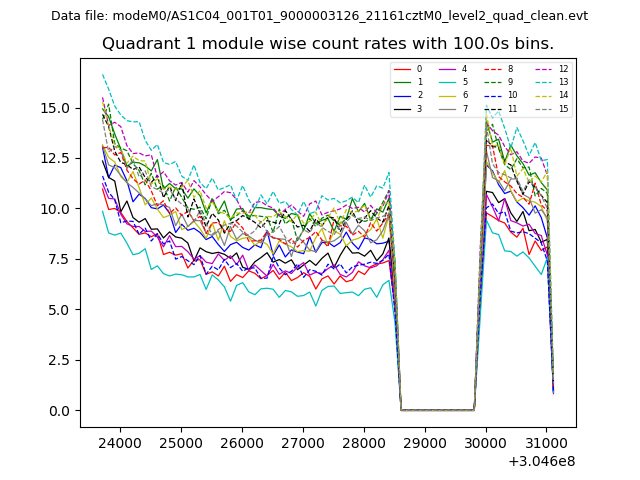

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

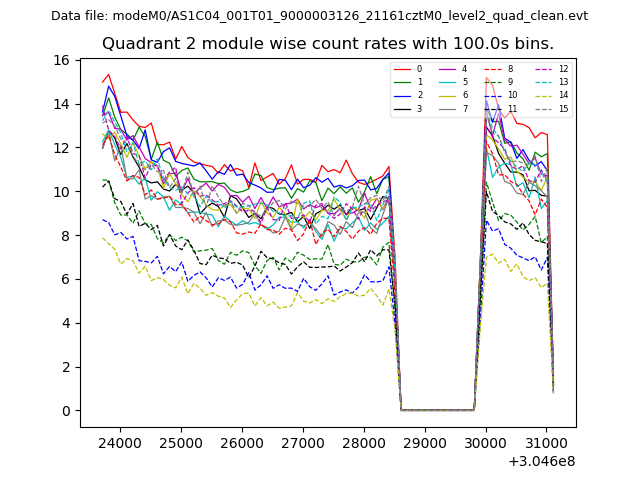

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

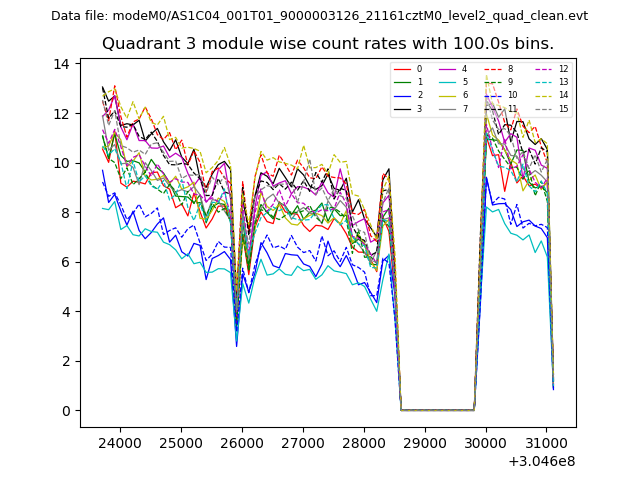

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

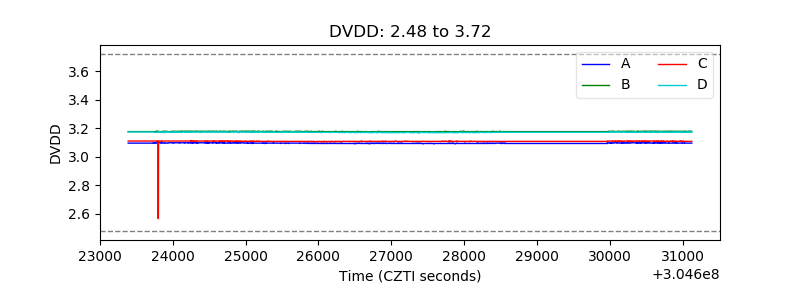

| D_VDD |  |

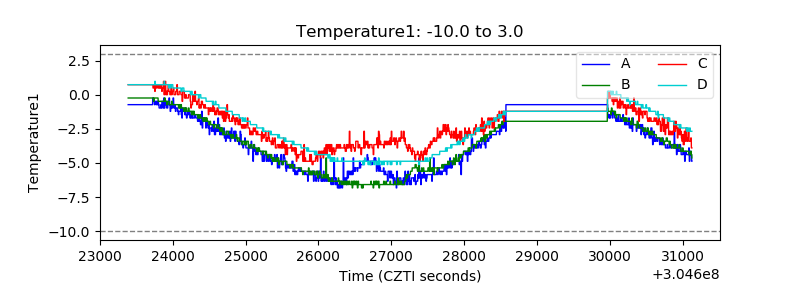

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

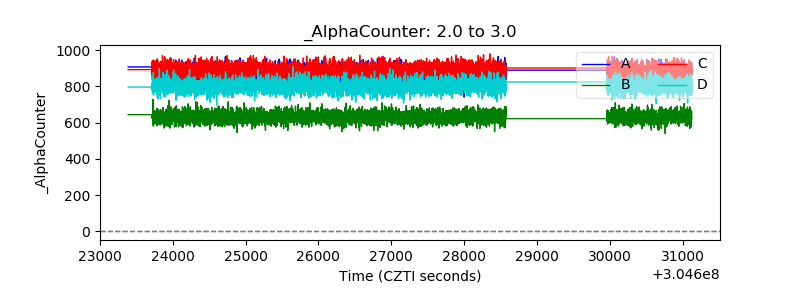

| Alpha Counter |  |

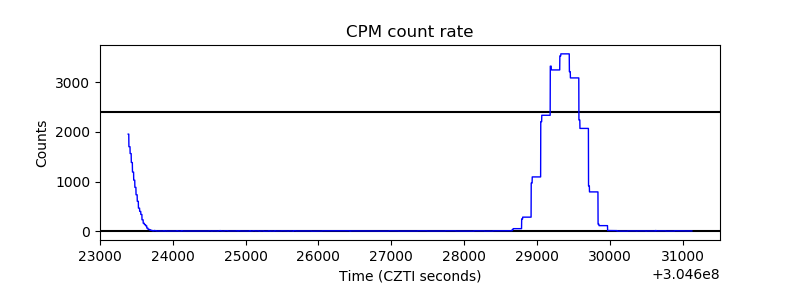

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

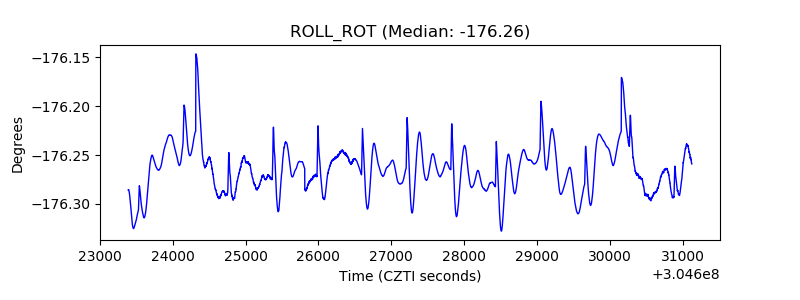

| _ROLL_ROT |  |

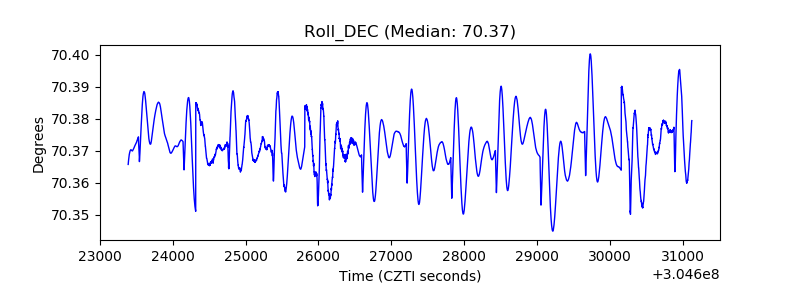

| _Roll_DEC |  |
| _Roll_RA |  |

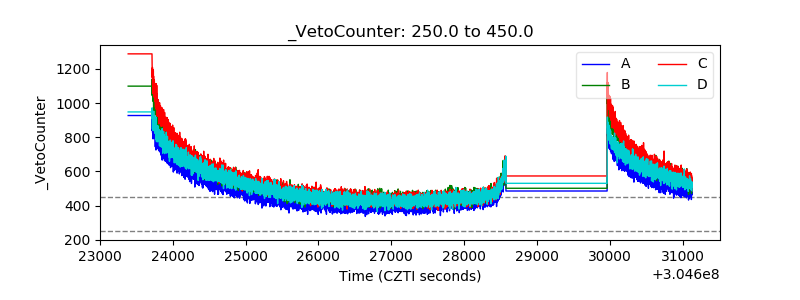

| Veto Counter |  |
