| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C04_001T01_9000003126_21163cztM0_level2.evt | modeM0/AS1C04_001T01_9000003126_21163cztM0_level2_quad_clean.evt |
| Size (bytes) | 517,677,120 | 124,850,880 |
| Size | 493.7 MB | 119.1 MB |
| Events in quadrant A | 2,919,771 | 860,845 |
| Events in quadrant B | 3,200,590 | 884,206 |
| Events in quadrant C | 3,067,626 | 857,692 |
| Events in quadrant D | 6,070,829 | 747,383 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12758 | 2 |
| B | 0 | 13548 | 2 |
| C | 0 | 13038 | 2 |
| D | 0 | 22347 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6181 | 30 | 0.485358% |
| B | 6181 | 68 | 1.100146% |
| C | 6181 | 107 | 1.731111% |
| D | 6181 | 1015 | 16.421291% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7466 | 6182 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7466 | 6182 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7466 | 6181 | 7 | 7 | 0.09% | 0.11% |  |
| D | 7466 | 6182 | 852 | 852 | 11.41% | 13.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10239 | 63.59 | 751 | 736 | 149.4 |
| A | 13 | 252 | 9868 | 61.1 | 751 | 736 | 149.4 |
| A | 8 | 6 | 8588 | 52.54 | 751 | 736 | 149.4 |
| B | 0 | 189 | 71248 | 495.68 | 761 | 742 | 142.2 |
| B | 0 | 190 | 43248 | 298.83 | 761 | 742 | 142.2 |
| B | 0 | 197 | 25624 | 174.93 | 761 | 742 | 142.2 |
| C | 14 | 238 | 116980 | 688.89 | 737 | 741 | 168.7 |
| C | 0 | 10 | 44264 | 257.94 | 737 | 741 | 168.7 |
| C | 3 | 233 | 32045 | 185.52 | 737 | 741 | 168.7 |
| D | 1 | 52 | 2048168 | 12506.4 | 680 | 660 | 163.7 |
| D | 1 | 239 | 717003 | 4375.5 | 680 | 660 | 163.7 |
| D | 1 | 20 | 400853 | 2444.42 | 680 | 660 | 163.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

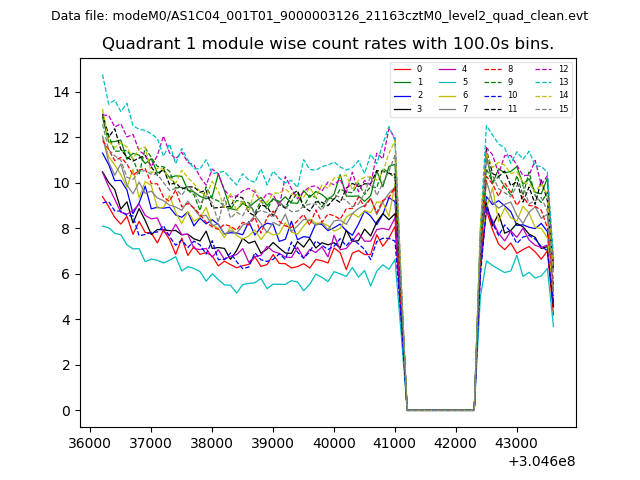

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

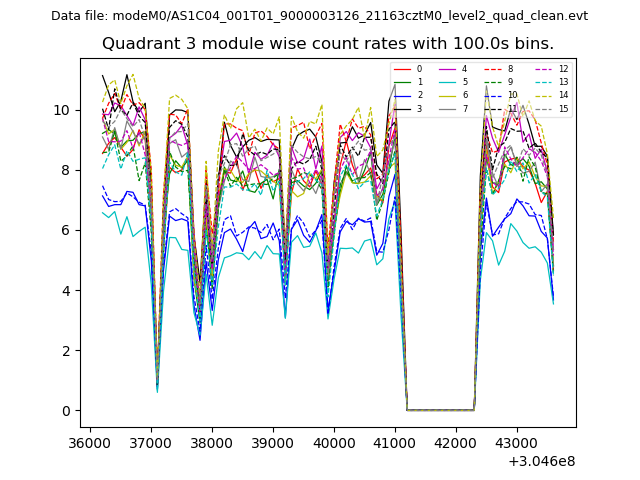

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

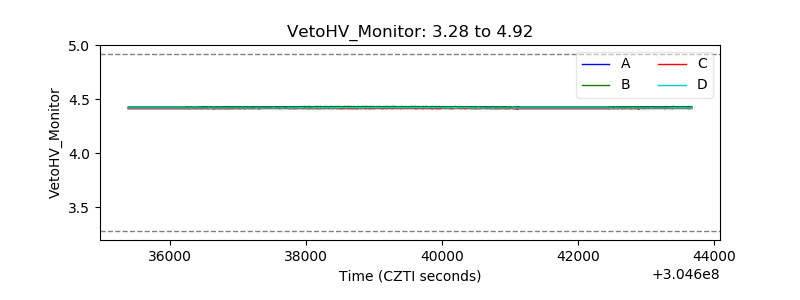

| Veto HV Monitor |  |
| Veto LLD |  |

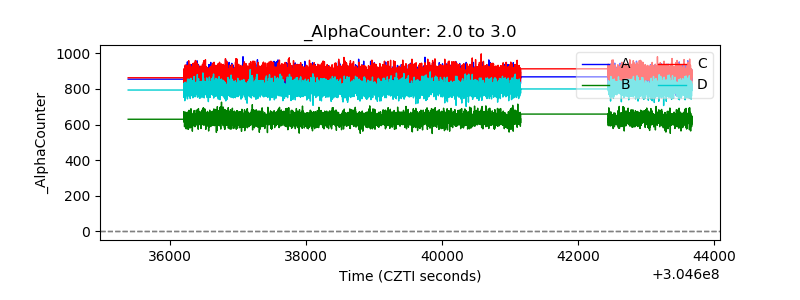

| Alpha Counter |  |

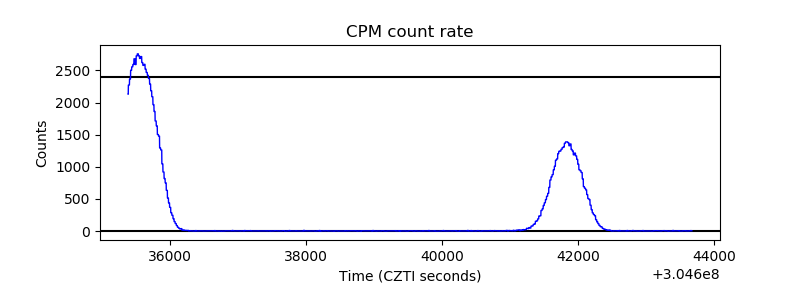

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

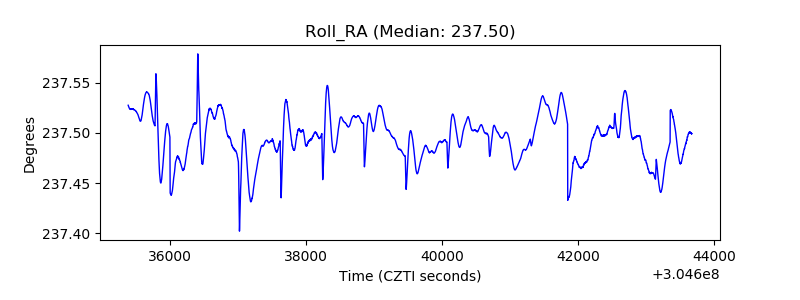

| _Roll_RA |  |
| Veto Counter |  |
