| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_062T01_9000003132_21176cztM0_level2.evt | modeM0/AS1A05_062T01_9000003132_21176cztM0_level2_quad_clean.evt |
| Size (bytes) | 514,172,160 | 96,408,000 |
| Size | 490.4 MB | 91.9 MB |
| Events in quadrant A | 3,793,607 | 639,396 |
| Events in quadrant B | 3,505,218 | 655,239 |
| Events in quadrant C | 3,128,372 | 620,525 |
| Events in quadrant D | 4,731,057 | 578,327 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15290 | 2 |
| B | 0 | 14366 | 2 |
| C | 0 | 13066 | 2 |
| D | 0 | 18073 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6096 | 63 | 1.033465% |
| B | 6097 | 79 | 1.295719% |
| C | 6097 | 65 | 1.066098% |
| D | 6097 | 226 | 3.706741% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7511 | 6098 | 17 | 17 | 0.23% | 0.28% |  |
| B | 7512 | 6099 | 38 | 38 | 0.51% | 0.62% |  |
| C | 7512 | 6099 | 6 | 6 | 0.08% | 0.10% |  |
| D | 7512 | 6099 | 185 | 185 | 2.46% | 3.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 229 | 683360 | 4276.35 | 799 | 787 | 159.6 |
| A | 5 | 16 | 13246 | 78.06 | 799 | 787 | 159.6 |
| A | 8 | 6 | 9722 | 55.98 | 799 | 787 | 159.6 |
| B | 3 | 64 | 104176 | 689.18 | 805 | 788 | 150.0 |
| B | 0 | 182 | 62262 | 409.79 | 805 | 788 | 150.0 |
| B | 0 | 189 | 41490 | 271.32 | 805 | 788 | 150.0 |
| C | 14 | 238 | 119794 | 678.01 | 756 | 764 | 175.6 |
| C | 0 | 10 | 42793 | 239.4 | 756 | 764 | 175.6 |
| C | 3 | 233 | 14114 | 76.04 | 756 | 764 | 175.6 |
| D | 7 | 238 | 804488 | 4399.75 | 750 | 729 | 182.7 |
| D | 1 | 52 | 445105 | 2432.5 | 750 | 729 | 182.7 |
| D | 1 | 20 | 188595 | 1028.37 | 750 | 729 | 182.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

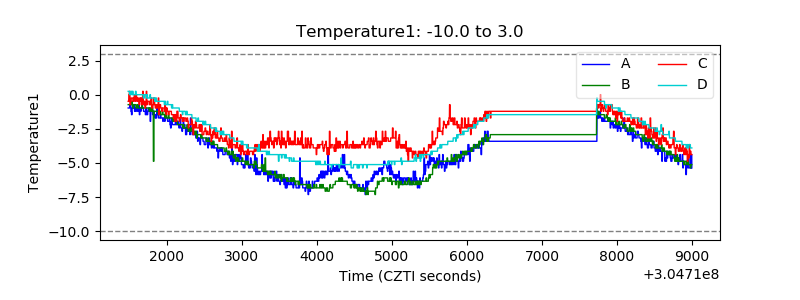

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
