| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_009T03_9000003128_21170cztM0_level2.evt | modeM0/AS1A06_009T03_9000003128_21170cztM0_level2_quad_clean.evt |
| Size (bytes) | 752,832,000 | 92,808,000 |
| Size | 718.0 MB | 88.5 MB |
| Events in quadrant A | 3,788,785 | 593,082 |
| Events in quadrant B | 3,982,996 | 601,882 |
| Events in quadrant C | 3,716,052 | 581,217 |
| Events in quadrant D | 10,793,494 | 500,383 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16036 | 2 |
| B | 0 | 16301 | 2 |
| C | 0 | 15764 | 2 |
| D | 0 | 37442 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7667 | 122 | 1.591235% |
| B | 7667 | 133 | 1.734707% |
| C | 7667 | 153 | 1.995565% |
| D | 7667 | 1610 | 20.999087% |

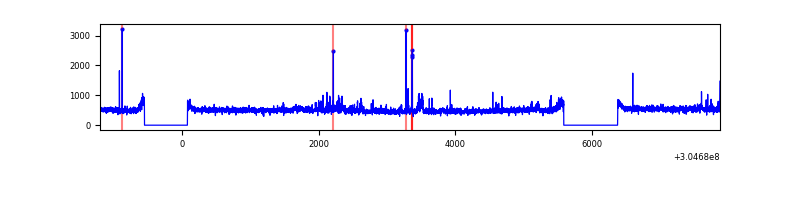

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9087 | 7667 | 10 | 10 | 0.11% | 0.13% |  |
| B | 9087 | 7668 | 6 | 6 | 0.07% | 0.08% |  |
| C | 9087 | 7667 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9087 | 7667 | 1432 | 1432 | 15.76% | 18.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 89012 | 456.82 | 955 | 932 | 192.8 |
| A | 13 | 254 | 11655 | 55.61 | 955 | 932 | 192.8 |
| A | 0 | 226 | 8247 | 37.94 | 955 | 932 | 192.8 |
| B | 0 | 189 | 63902 | 343.86 | 952 | 927 | 183.1 |
| B | 0 | 230 | 62588 | 336.69 | 952 | 927 | 183.1 |
| B | 12 | 111 | 21938 | 114.73 | 952 | 927 | 183.1 |
| C | 14 | 238 | 142949 | 656.68 | 915 | 919 | 216.3 |
| C | 13 | 61 | 6384 | 25.27 | 915 | 919 | 216.3 |
| C | 7 | 220 | 4602 | 17.03 | 915 | 919 | 216.3 |
| D | 1 | 20 | 3414972 | 16085.03 | 867 | 844 | 212.3 |
| D | 7 | 238 | 2770494 | 13048.69 | 867 | 844 | 212.3 |
| D | 1 | 52 | 972958 | 4579.93 | 867 | 844 | 212.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

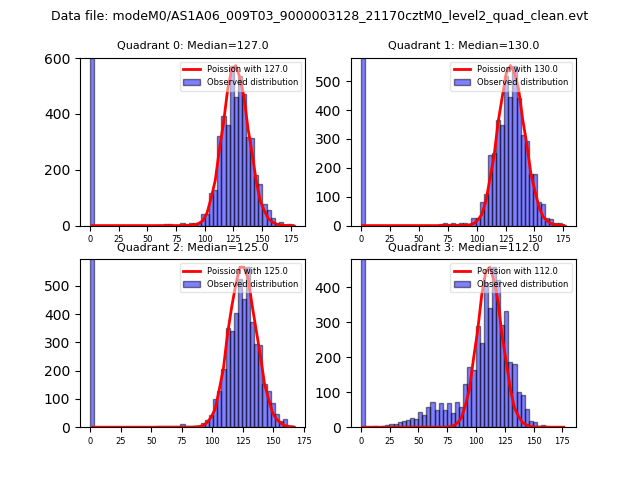

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

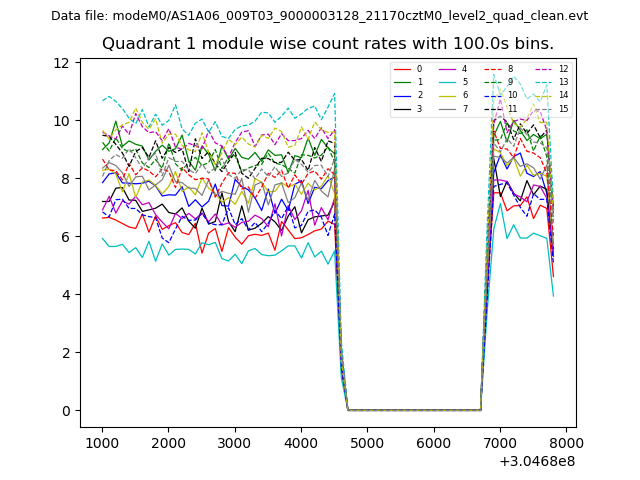

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

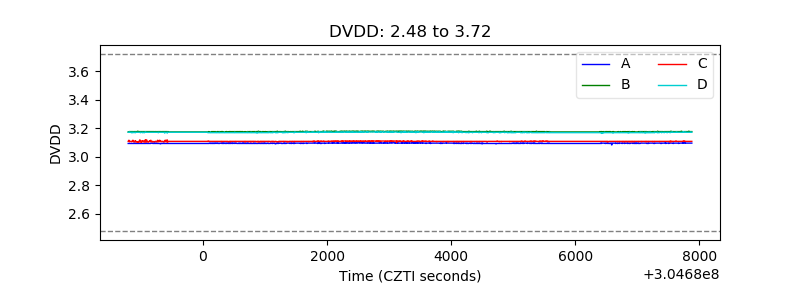

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

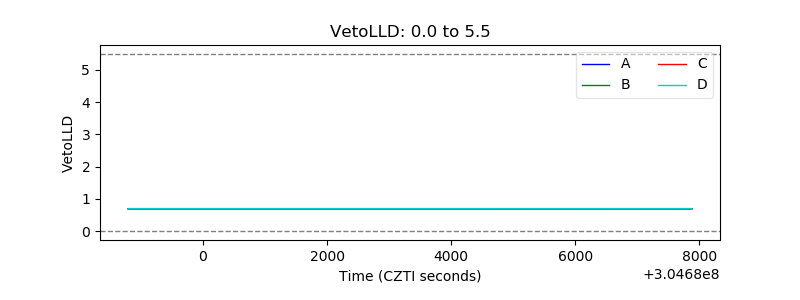

| Veto LLD |  |
| Alpha Counter |  |

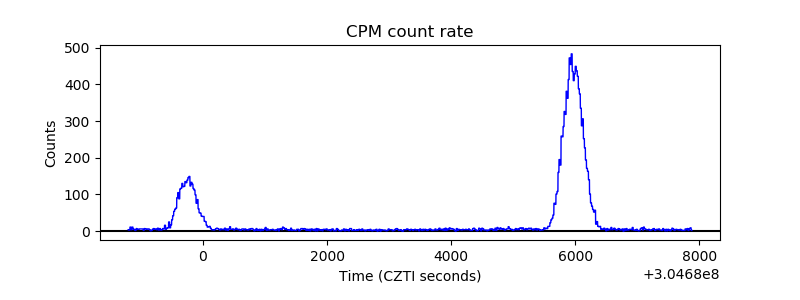

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

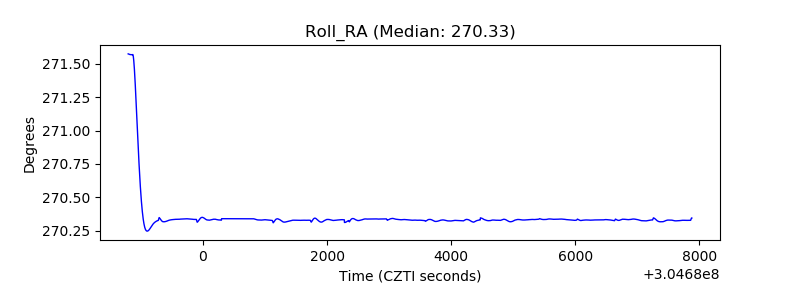

| _Roll_RA |  |

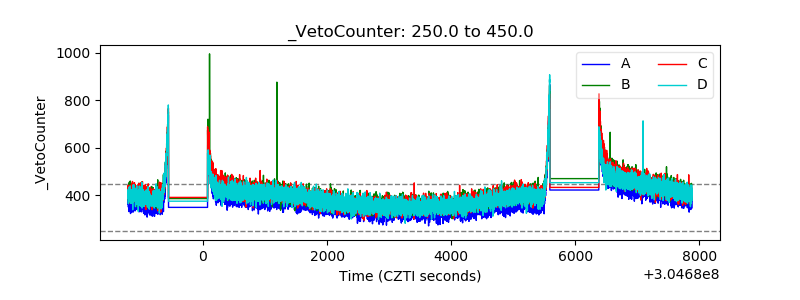

| Veto Counter |  |
