| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_002T01_9000003134_21193cztM0_level2.evt | modeM0/AS1A06_002T01_9000003134_21193cztM0_level2_quad_clean.evt |
| Size (bytes) | 495,132,480 | 88,381,440 |
| Size | 472.2 MB | 84.3 MB |
| Events in quadrant A | 3,179,869 | 566,289 |
| Events in quadrant B | 3,245,318 | 577,965 |
| Events in quadrant C | 3,191,665 | 550,676 |
| Events in quadrant D | 4,937,153 | 528,295 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13726 | 2 |
| B | 0 | 13731 | 2 |
| C | 0 | 13549 | 2 |
| D | 0 | 19046 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6492 | 33 | 0.508318% |
| B | 6492 | 59 | 0.908811% |
| C | 6492 | 68 | 1.047443% |
| D | 6492 | 439 | 6.762169% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7482 | 6493 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7482 | 6493 | 5 | 5 | 0.07% | 0.08% |  |
| C | 7482 | 6493 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7482 | 6493 | 385 | 385 | 5.15% | 5.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 252 | 113905 | 702.37 | 794 | 778 | 161.1 |
| A | 13 | 254 | 9612 | 54.85 | 794 | 778 | 161.1 |
| A | 0 | 226 | 6889 | 37.94 | 794 | 778 | 161.1 |
| B | 0 | 190 | 27626 | 176.76 | 800 | 781 | 151.9 |
| B | 12 | 111 | 17914 | 112.81 | 800 | 781 | 151.9 |
| B | 0 | 230 | 17164 | 107.87 | 800 | 781 | 151.9 |
| C | 14 | 238 | 120644 | 670.57 | 763 | 771 | 178.8 |
| C | 3 | 233 | 60758 | 335.57 | 763 | 771 | 178.8 |
| C | 0 | 10 | 28938 | 157.57 | 763 | 771 | 178.8 |
| D | 1 | 52 | 907608 | 4969.19 | 747 | 723 | 182.5 |
| D | 7 | 238 | 644633 | 3528.24 | 747 | 723 | 182.5 |
| D | 1 | 20 | 133173 | 725.75 | 747 | 723 | 182.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

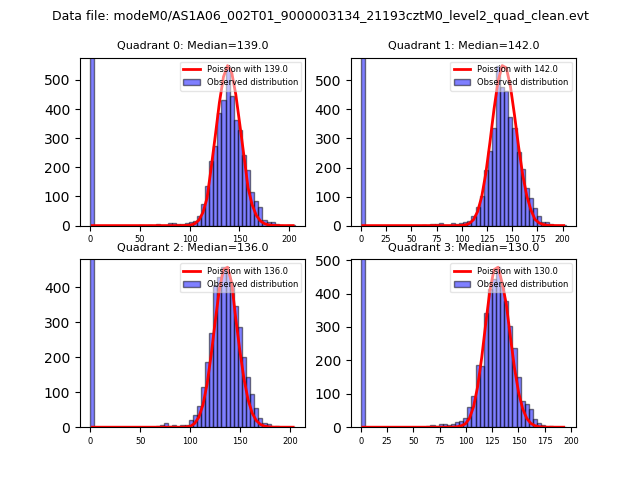

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

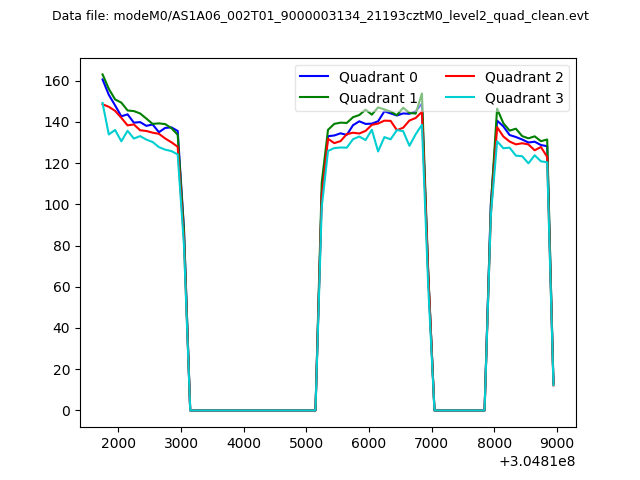

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

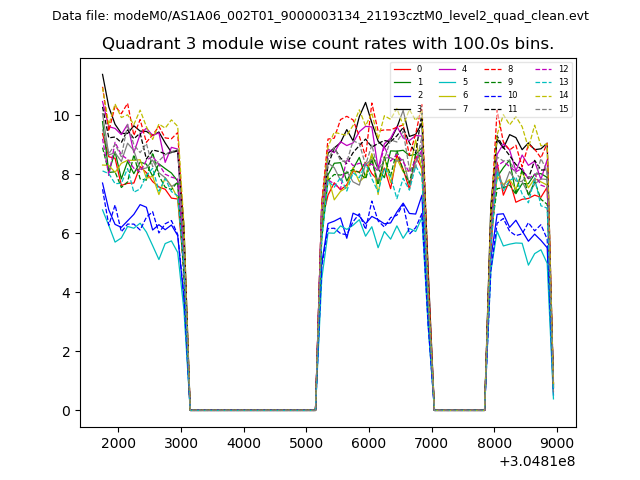

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

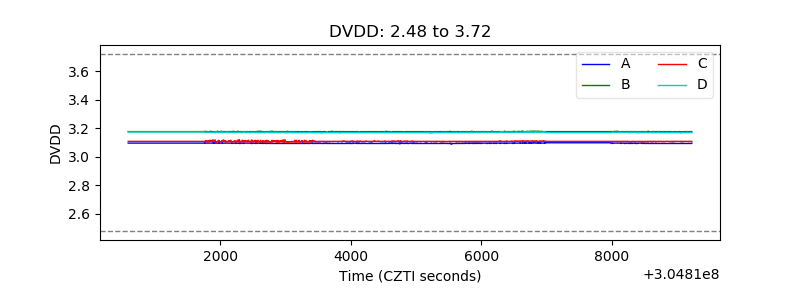

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

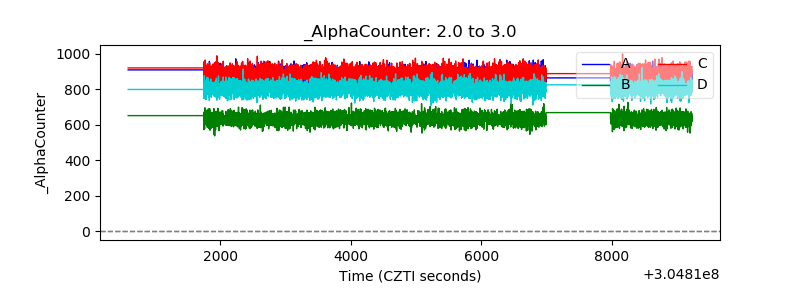

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

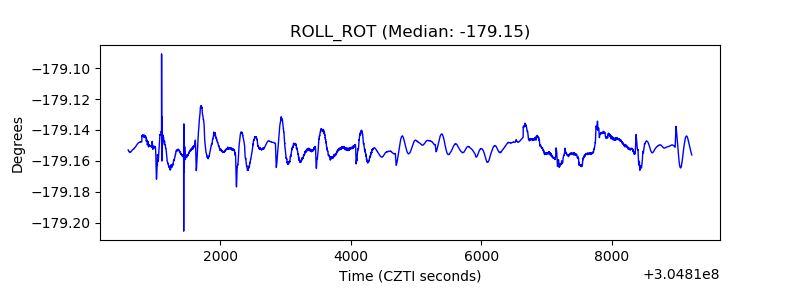

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
