| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_002T01_9000003134_21196cztM0_level2.evt | modeM0/AS1A06_002T01_9000003134_21196cztM0_level2_quad_clean.evt |
| Size (bytes) | 637,378,560 | 88,410,240 |
| Size | 607.9 MB | 84.3 MB |
| Events in quadrant A | 4,522,979 | 541,795 |
| Events in quadrant B | 4,011,790 | 553,465 |
| Events in quadrant C | 4,042,775 | 530,786 |
| Events in quadrant D | 6,188,527 | 499,779 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 160 | 0 |
| B | 0 | 160 | 0 |
| C | 0 | 160 | 0 |
| D | 0 | 160 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18666 | 3 |
| B | 0 | 17045 | 4 |
| C | 0 | 17117 | 3 |
| D | 0 | 23821 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7935 | 270 | 3.402647% |
| B | 7934 | 276 | 3.478699% |
| C | 7934 | 315 | 3.970255% |
| D | 7934 | 474 | 5.974288% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

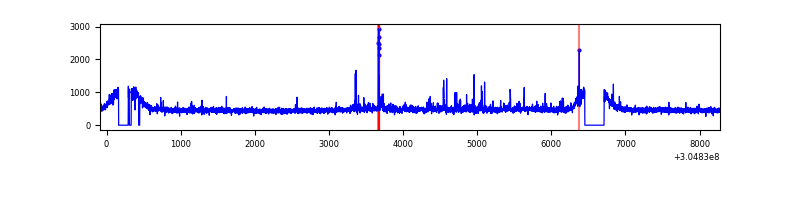

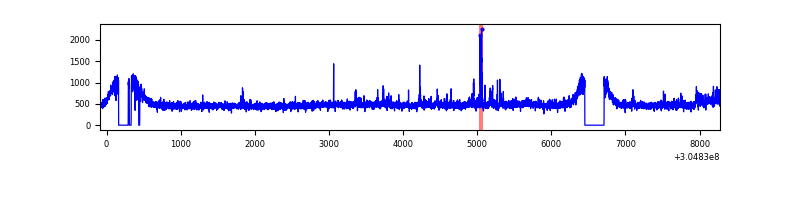

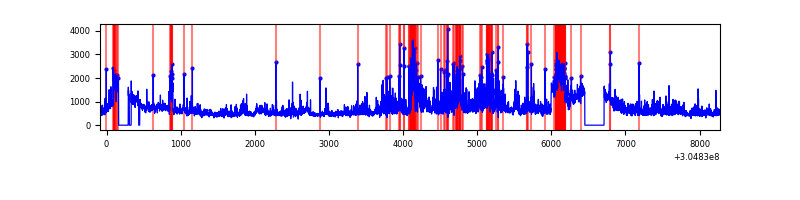

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8365 | 7939 | 36 | 36 | 0.43% | 0.45% |  |
| B | 8364 | 7938 | 7 | 7 | 0.08% | 0.09% |  |
| C | 8364 | 7936 | 2 | 2 | 0.02% | 0.03% |  |
| D | 8364 | 7936 | 215 | 215 | 2.57% | 2.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 252 | 668479 | 3307.09 | 985 | 965 | 201.8 |
| A | 11 | 47 | 36465 | 175.88 | 985 | 965 | 201.8 |
| A | 13 | 254 | 11257 | 50.99 | 985 | 965 | 201.8 |
| B | 0 | 197 | 36655 | 185.6 | 986 | 959 | 192.3 |
| B | 3 | 64 | 32428 | 163.62 | 986 | 959 | 192.3 |
| B | 0 | 190 | 25121 | 125.63 | 986 | 959 | 192.3 |
| C | 3 | 233 | 188524 | 830.76 | 947 | 953 | 225.8 |
| C | 14 | 238 | 144578 | 636.12 | 947 | 953 | 225.8 |
| C | 8 | 128 | 12240 | 49.99 | 947 | 953 | 225.8 |
| D | 1 | 239 | 822349 | 3530.88 | 940 | 912 | 232.6 |
| D | 12 | 235 | 530955 | 2278.35 | 940 | 912 | 232.6 |
| D | 7 | 238 | 338388 | 1450.61 | 940 | 912 | 232.6 |

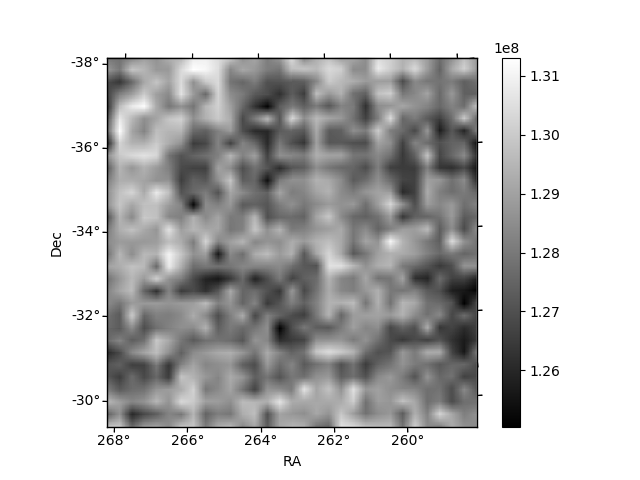

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

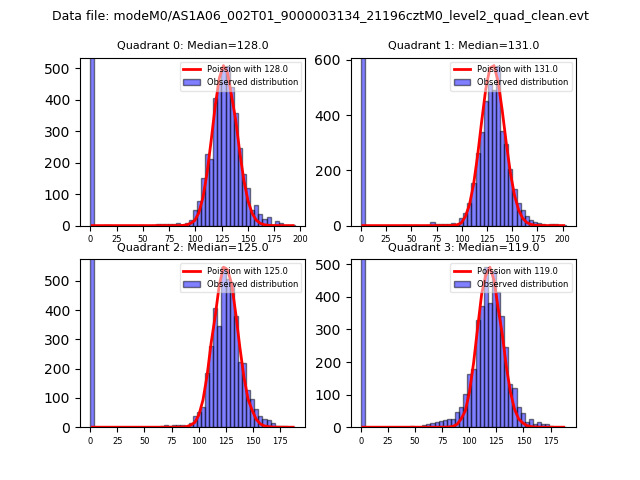

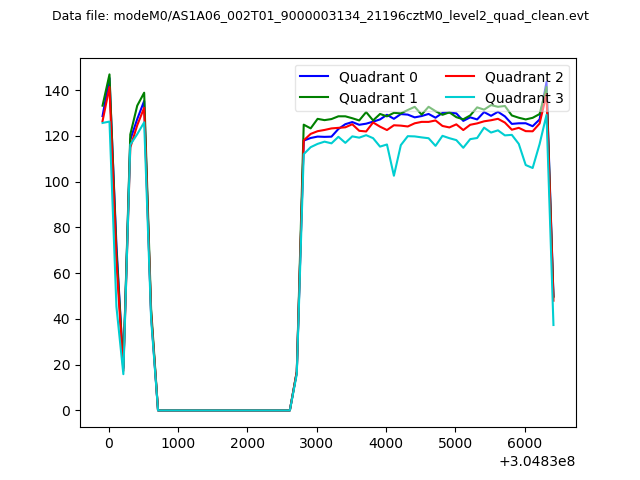

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

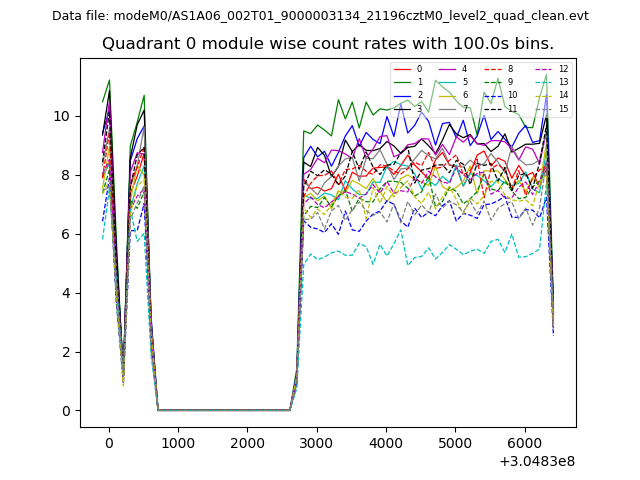

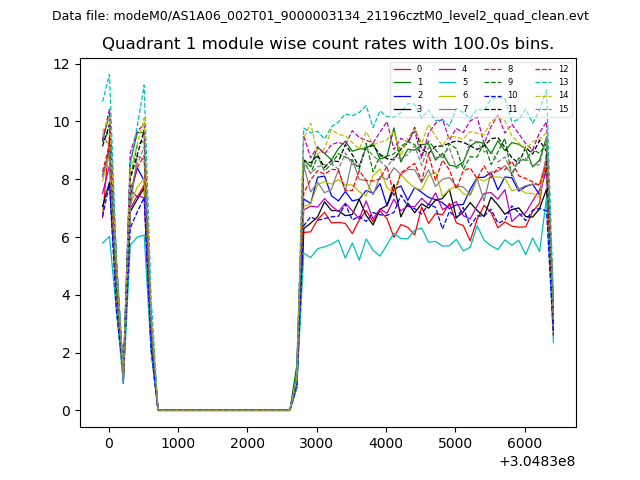

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

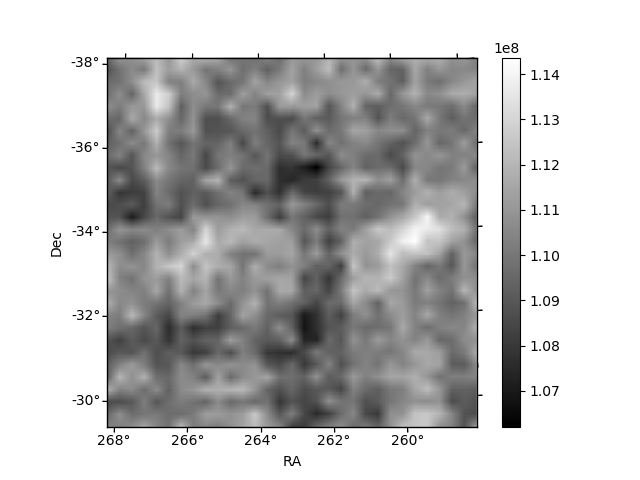

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

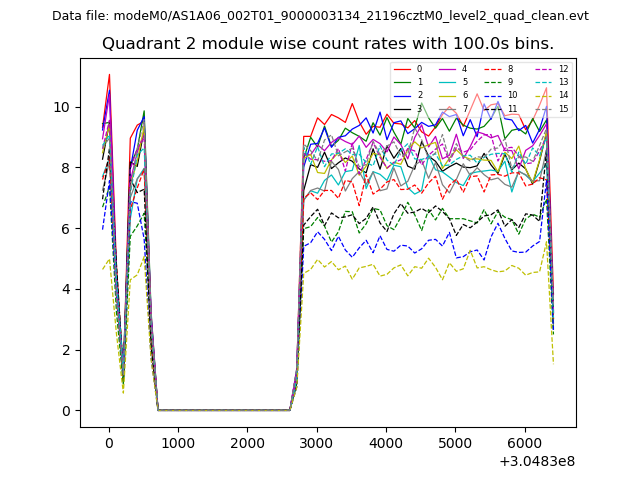

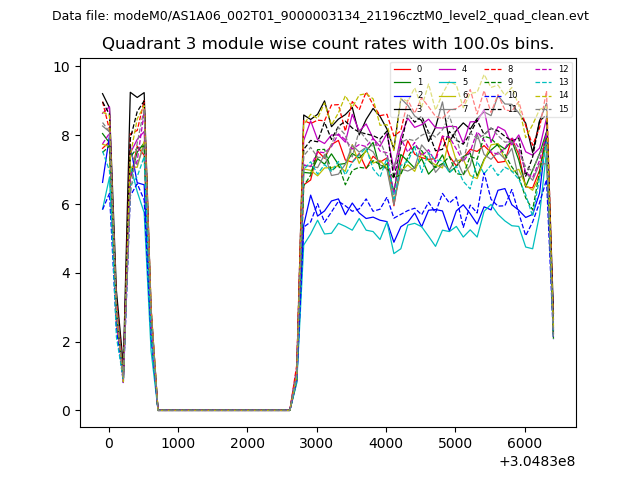

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

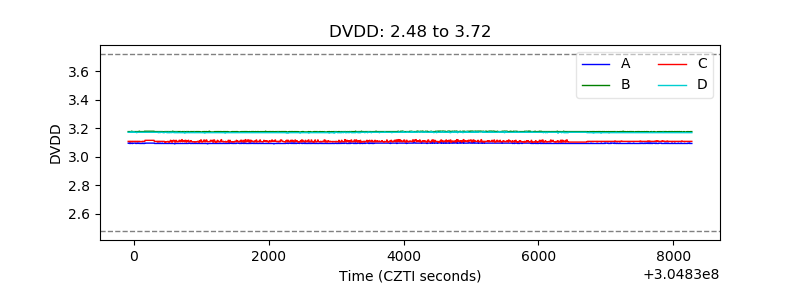

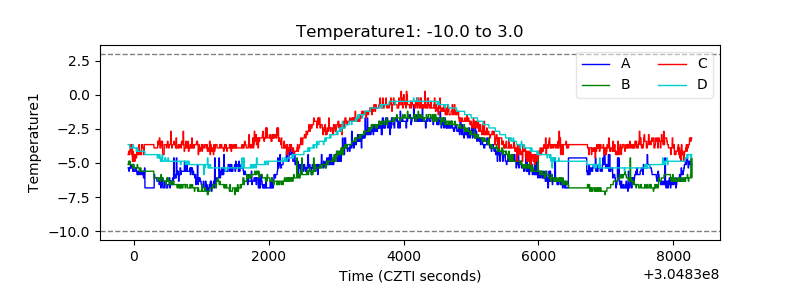

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

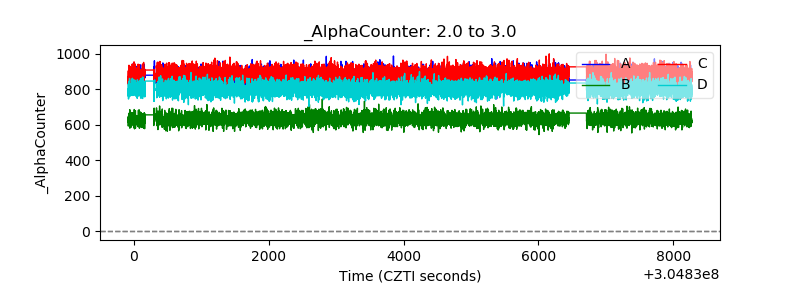

| Alpha Counter |  |

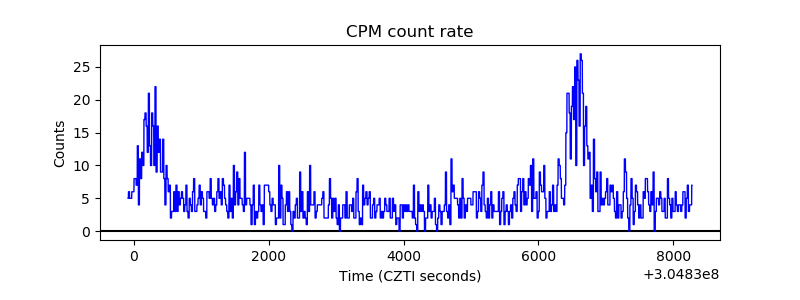

| _CPM_Rate |  |

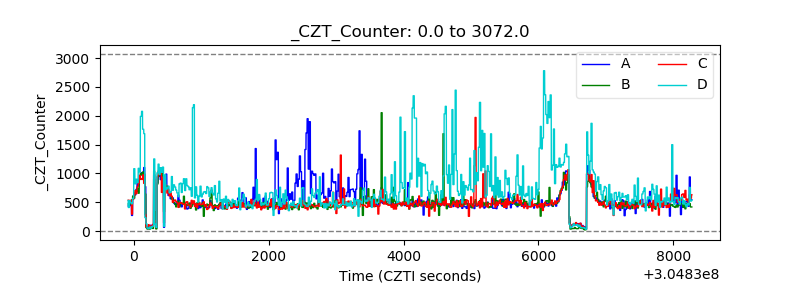

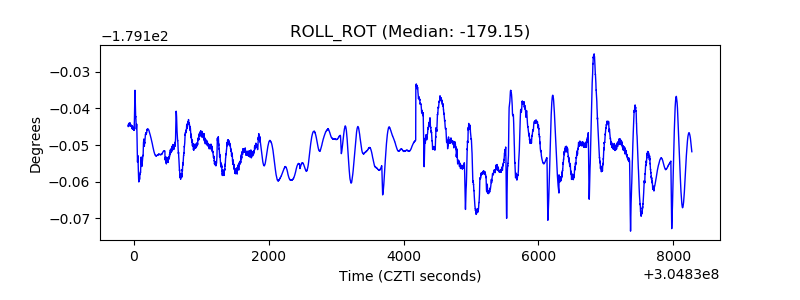

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

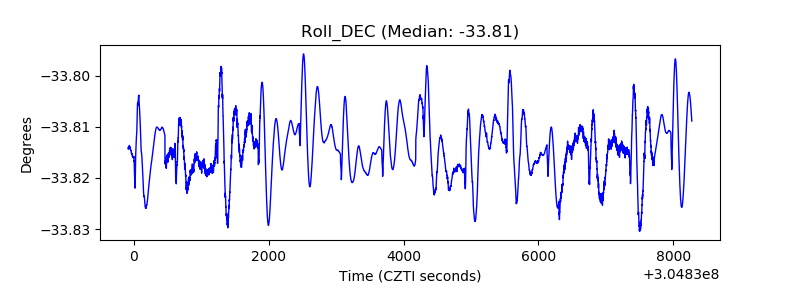

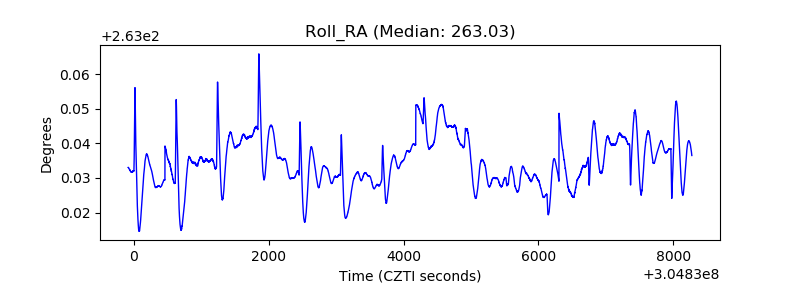

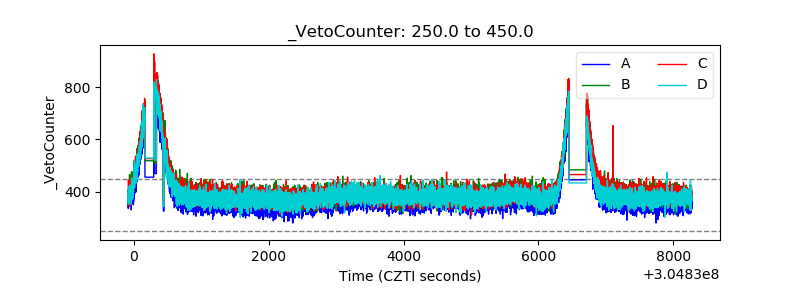

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
