| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_002T01_9000003134_21202cztM0_level2.evt | modeM0/AS1A06_002T01_9000003134_21202cztM0_level2_quad_clean.evt |
| Size (bytes) | 587,108,160 | 105,880,320 |
| Size | 559.9 MB | 101.0 MB |
| Events in quadrant A | 3,488,111 | 732,766 |
| Events in quadrant B | 4,827,380 | 705,305 |
| Events in quadrant C | 3,330,535 | 698,729 |
| Events in quadrant D | 5,688,642 | 610,644 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14777 | 2 |
| B | 0 | 18633 | 2 |
| C | 0 | 14187 | 2 |
| D | 0 | 21525 | 9 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6584 | 64 | 0.972053% |
| B | 6584 | 544 | 8.262454% |
| C | 6584 | 92 | 1.397327% |
| D | 6583 | 917 | 13.929819% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7729 | 6584 | 5 | 5 | 0.06% | 0.08% |  |
| B | 7729 | 6584 | 436 | 436 | 5.64% | 6.62% |  |
| C | 7729 | 6584 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7727 | 6582 | 550 | 550 | 7.12% | 8.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 252 | 93100 | 540.75 | 850 | 833 | 170.6 |
| A | 11 | 47 | 86344 | 501.16 | 850 | 833 | 170.6 |
| A | 15 | 236 | 27858 | 158.39 | 850 | 833 | 170.6 |
| B | 0 | 182 | 1366835 | 8700.94 | 816 | 796 | 157.0 |
| B | 0 | 230 | 130845 | 828.34 | 816 | 796 | 157.0 |
| B | 0 | 190 | 41670 | 260.35 | 816 | 796 | 157.0 |
| C | 14 | 238 | 126106 | 671.21 | 798 | 804 | 186.7 |
| C | 3 | 233 | 78317 | 415.22 | 798 | 804 | 186.7 |
| C | 0 | 207 | 15194 | 77.08 | 798 | 804 | 186.7 |
| D | 7 | 238 | 2234496 | 12368.25 | 733 | 711 | 180.6 |
| D | 1 | 52 | 235718 | 1301.21 | 733 | 711 | 180.6 |
| D | 12 | 235 | 161394 | 889.69 | 733 | 711 | 180.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

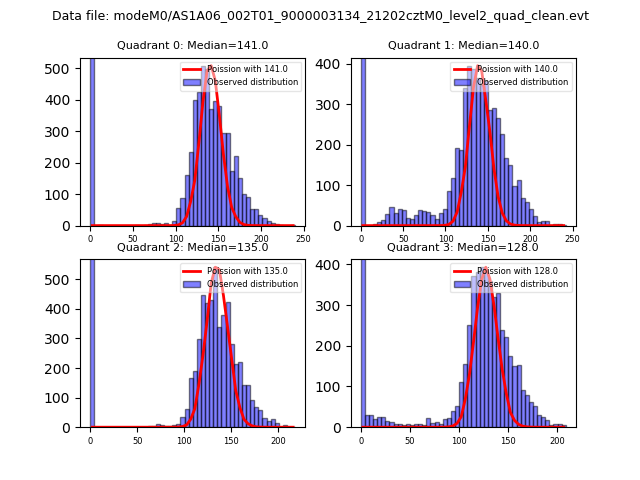

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
