| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_002T01_9000003134_21208cztM0_level2.evt | modeM0/AS1A06_002T01_9000003134_21208cztM0_level2_quad_clean.evt |
| Size (bytes) | 516,101,760 | 89,412,480 |
| Size | 492.2 MB | 85.3 MB |
| Events in quadrant A | 3,531,934 | 570,622 |
| Events in quadrant B | 3,424,776 | 583,138 |
| Events in quadrant C | 3,247,694 | 557,878 |
| Events in quadrant D | 4,969,602 | 527,234 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14730 | 2 |
| B | 0 | 14414 | 2 |
| C | 0 | 13937 | 2 |
| D | 0 | 19356 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6726 | 46 | 0.683913% |
| B | 6726 | 63 | 0.936664% |
| C | 6726 | 90 | 1.338091% |
| D | 6726 | 261 | 3.880464% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7491 | 6727 | 3 | 3 | 0.04% | 0.04% |  |
| B | 7491 | 6726 | 5 | 5 | 0.07% | 0.07% |  |
| C | 7491 | 6727 | 13 | 13 | 0.17% | 0.19% |  |
| D | 7491 | 6727 | 161 | 161 | 2.15% | 2.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 377813 | 2285.57 | 817 | 800 | 165.0 |
| A | 13 | 254 | 7967 | 43.45 | 817 | 800 | 165.0 |
| A | 0 | 226 | 7183 | 38.7 | 817 | 800 | 165.0 |
| B | 0 | 182 | 129203 | 818.81 | 819 | 797 | 156.8 |
| B | 3 | 64 | 26003 | 160.73 | 819 | 797 | 156.8 |
| B | 0 | 190 | 21146 | 129.76 | 819 | 797 | 156.8 |
| C | 14 | 238 | 121792 | 660.55 | 782 | 785 | 183.2 |
| C | 0 | 10 | 33375 | 177.9 | 782 | 785 | 183.2 |
| C | 0 | 207 | 24907 | 131.68 | 782 | 785 | 183.2 |
| D | 7 | 238 | 1363400 | 7131.69 | 779 | 756 | 191.1 |
| D | 13 | 174 | 202399 | 1055.34 | 779 | 756 | 191.1 |
| D | 1 | 52 | 127222 | 661.89 | 779 | 756 | 191.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

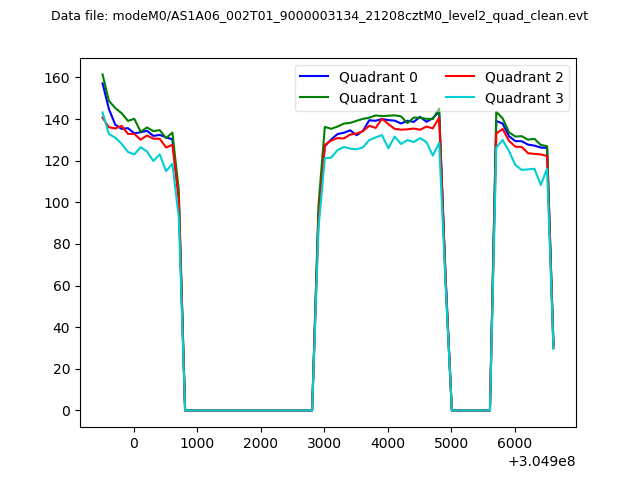

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

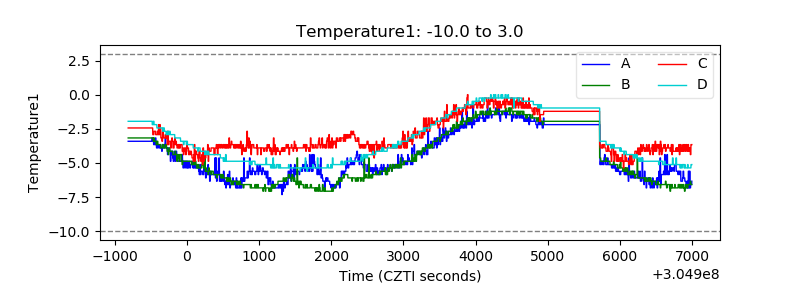

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
