| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_002T01_9000003134_21209cztM0_level2.evt | modeM0/AS1A06_002T01_9000003134_21209cztM0_level2_quad_clean.evt |
| Size (bytes) | 645,122,880 | 87,937,920 |
| Size | 615.2 MB | 83.9 MB |
| Events in quadrant A | 3,695,185 | 561,439 |
| Events in quadrant B | 3,890,835 | 566,436 |
| Events in quadrant C | 3,820,592 | 544,551 |
| Events in quadrant D | 7,635,220 | 480,405 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15523 | 2 |
| B | 0 | 16221 | 2 |
| C | 0 | 16156 | 2 |
| D | 0 | 27779 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7324 | 81 | 1.105953% |
| B | 7324 | 153 | 2.089022% |
| C | 7324 | 119 | 1.624795% |
| D | 7323 | 1062 | 14.502253% |

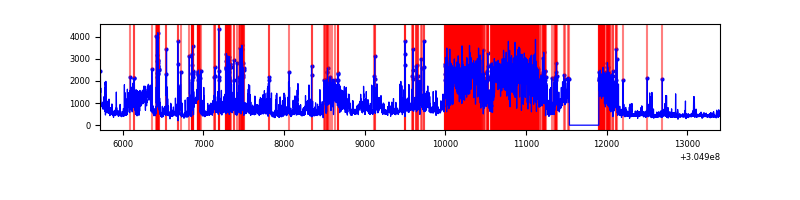

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7689 | 7325 | 33 | 33 | 0.43% | 0.45% |  |
| B | 7689 | 7325 | 54 | 54 | 0.70% | 0.74% |  |
| C | 7689 | 7325 | 17 | 17 | 0.22% | 0.23% |  |
| D | 7688 | 7324 | 874 | 874 | 11.37% | 11.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 268478 | 1491.75 | 884 | 868 | 179.4 |
| A | 13 | 252 | 9179 | 46.33 | 884 | 868 | 179.4 |
| A | 11 | 47 | 9119 | 45.99 | 884 | 868 | 179.4 |
| B | 0 | 182 | 142808 | 835.15 | 884 | 862 | 170.0 |
| B | 3 | 64 | 123105 | 719.22 | 884 | 862 | 170.0 |
| B | 0 | 189 | 84912 | 494.51 | 884 | 862 | 170.0 |
| C | 0 | 239 | 229200 | 1150.46 | 844 | 847 | 198.5 |
| C | 3 | 233 | 140206 | 702.1 | 844 | 847 | 198.5 |
| C | 14 | 238 | 130787 | 654.65 | 844 | 847 | 198.5 |
| D | 7 | 238 | 2421556 | 12121.18 | 811 | 788 | 199.7 |
| D | 1 | 52 | 1159831 | 5803.52 | 811 | 788 | 199.7 |
| D | 13 | 174 | 551139 | 2755.7 | 811 | 788 | 199.7 |

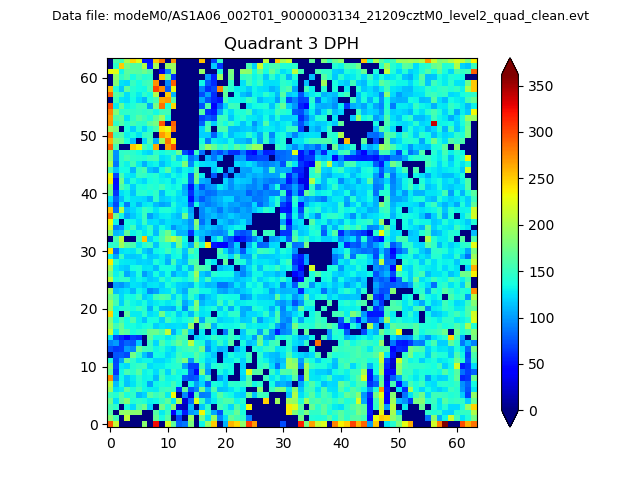

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

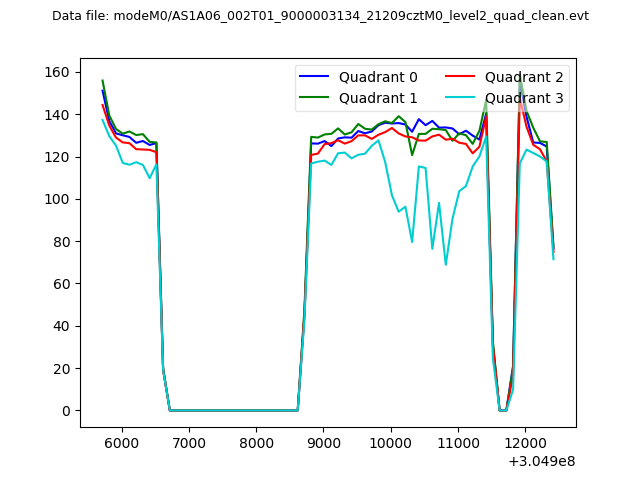

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

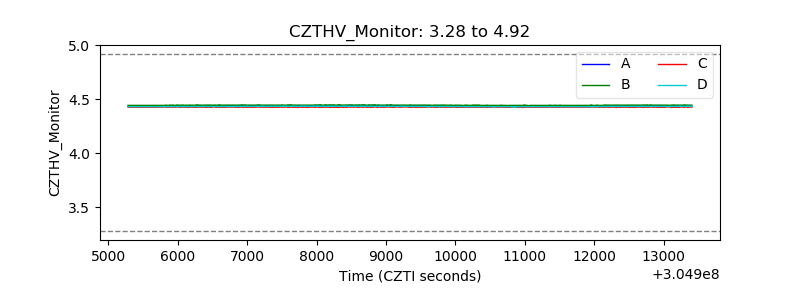

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

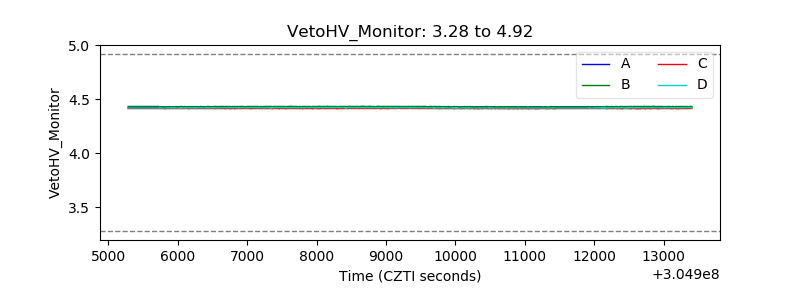

| Veto HV Monitor |  |

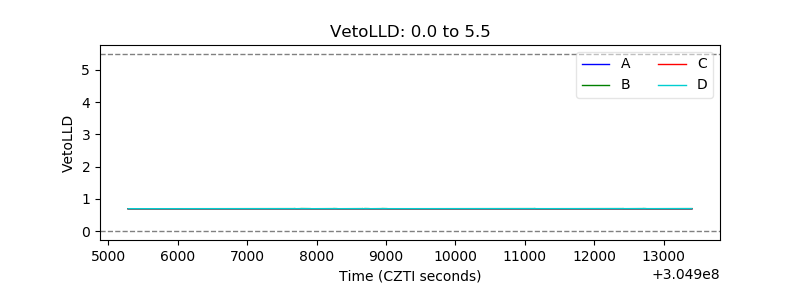

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

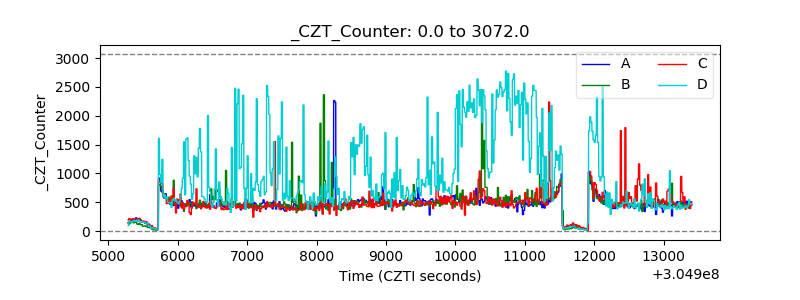

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

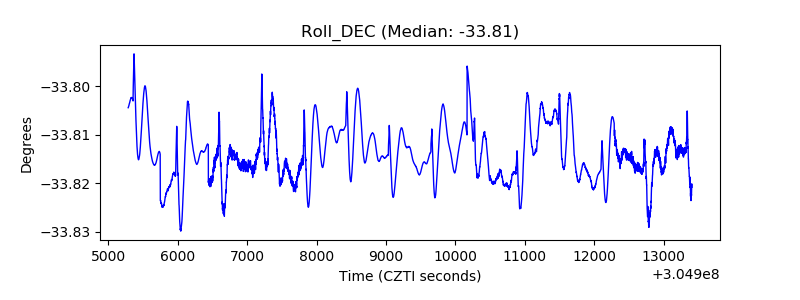

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
