| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_005T05_9000003136_21222cztM0_level2.evt | modeM0/AS1A06_005T05_9000003136_21222cztM0_level2_quad_clean.evt |
| Size (bytes) | 500,682,240 | 92,730,240 |
| Size | 477.5 MB | 88.4 MB |
| Events in quadrant A | 3,129,871 | 600,769 |
| Events in quadrant B | 3,216,142 | 616,889 |
| Events in quadrant C | 3,105,564 | 590,023 |
| Events in quadrant D | 5,271,225 | 547,891 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13501 | 2 |
| B | 0 | 13760 | 2 |
| C | 0 | 13455 | 2 |
| D | 0 | 20031 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6496 | 14 | 0.215517% |
| B | 6496 | 39 | 0.600369% |
| C | 6496 | 67 | 1.031404% |
| D | 6496 | 330 | 5.080049% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7521 | 6497 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7521 | 6497 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7521 | 6497 | 5 | 5 | 0.07% | 0.08% |  |

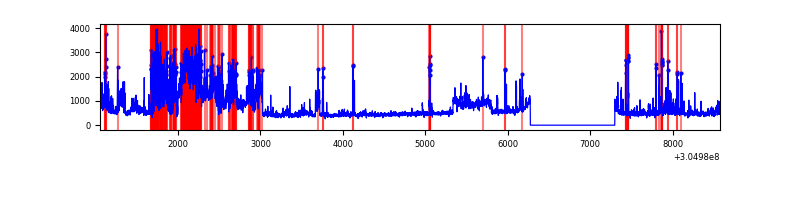

| D | 7521 | 6497 | 392 | 392 | 5.21% | 6.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 45493 | 279.91 | 792 | 778 | 159.7 |
| A | 11 | 47 | 30107 | 183.6 | 792 | 778 | 159.7 |
| A | 13 | 254 | 9640 | 55.47 | 792 | 778 | 159.7 |
| B | 0 | 190 | 31887 | 205.66 | 797 | 777 | 151.3 |
| B | 0 | 228 | 17892 | 113.14 | 797 | 777 | 151.3 |
| B | 12 | 111 | 17600 | 111.21 | 797 | 777 | 151.3 |
| C | 14 | 238 | 119008 | 668.04 | 754 | 760 | 177.0 |
| C | 0 | 10 | 33722 | 186.22 | 754 | 760 | 177.0 |
| C | 0 | 207 | 7194 | 36.35 | 754 | 760 | 177.0 |
| D | 13 | 174 | 1531233 | 8461.65 | 749 | 729 | 180.9 |
| D | 7 | 238 | 456087 | 2517.52 | 749 | 729 | 180.9 |
| D | 15 | 0 | 84031 | 460.55 | 749 | 729 | 180.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

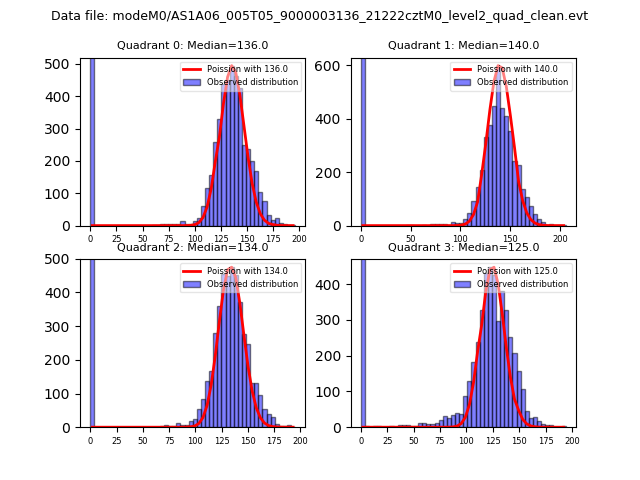

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

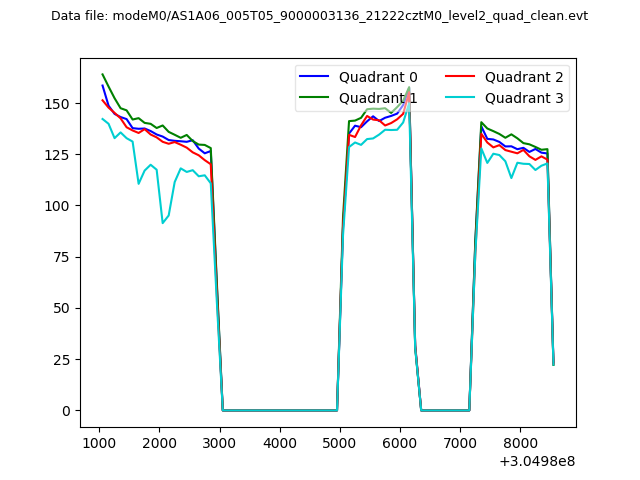

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

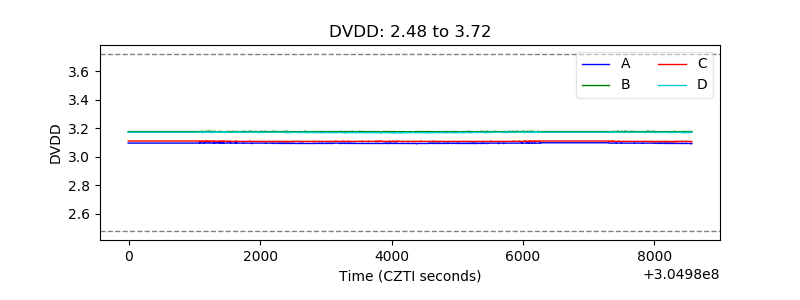

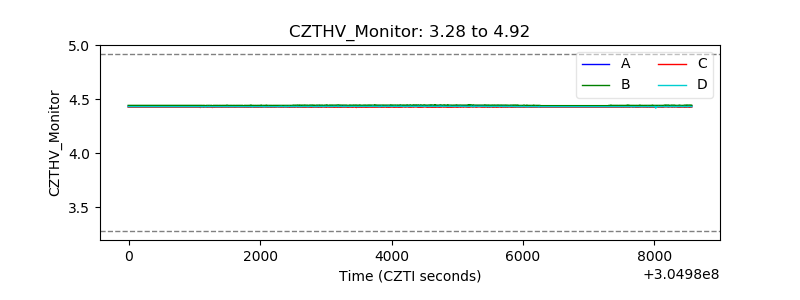

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

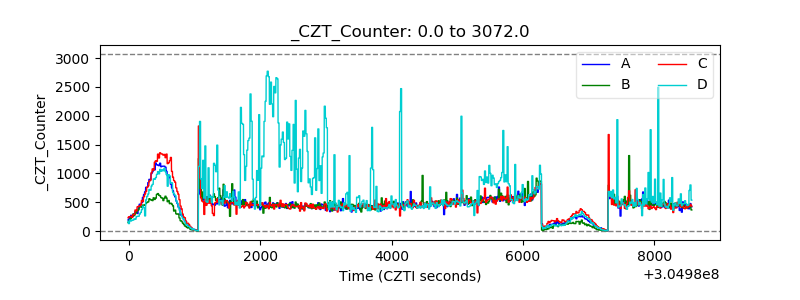

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

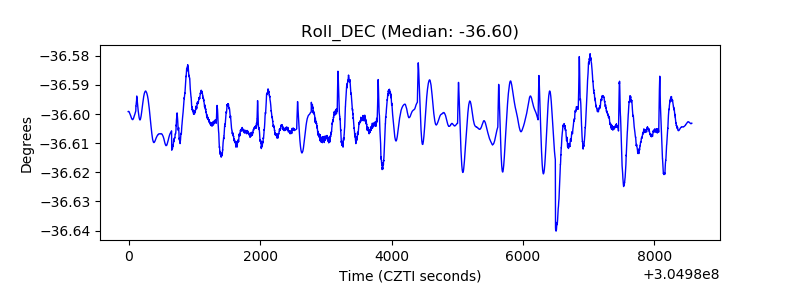

| _Roll_DEC |  |

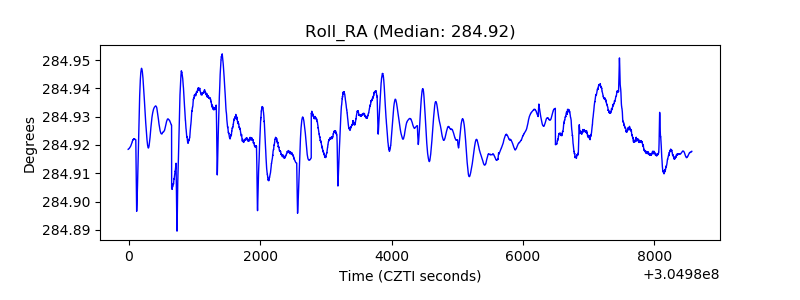

| _Roll_RA |  |
| Veto Counter |  |
