| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_037T01_9000003140_21248cztM0_level2.evt | modeM0/AS1A05_037T01_9000003140_21248cztM0_level2_quad_clean.evt |
| Size (bytes) | 678,847,680 | 113,575,680 |
| Size | 647.4 MB | 108.3 MB |
| Events in quadrant A | 3,480,815 | 811,963 |
| Events in quadrant B | 3,610,398 | 815,405 |
| Events in quadrant C | 3,383,521 | 771,671 |
| Events in quadrant D | 9,653,357 | 595,384 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14461 | 1 |
| B | 0 | 14959 | 1 |
| C | 0 | 14100 | 1 |
| D | 0 | 33036 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6359 | 66 | 1.037899% |
| B | 6360 | 98 | 1.540881% |
| C | 6360 | 95 | 1.493711% |
| D | 6360 | 2358 | 37.075472% |

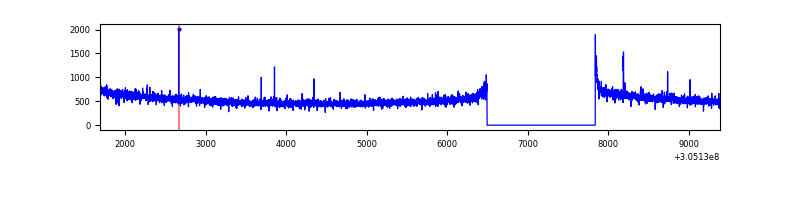

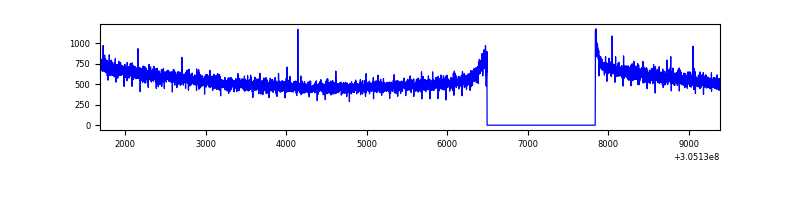

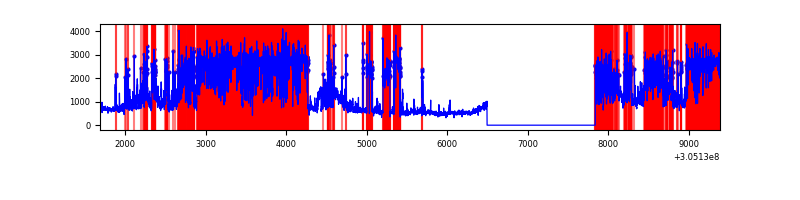

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

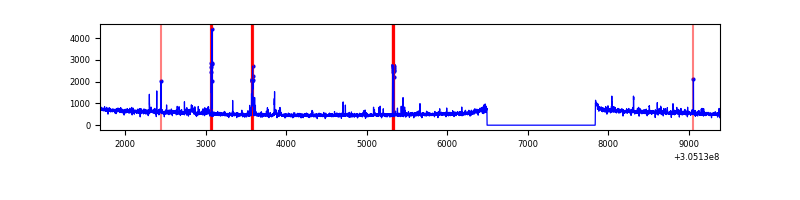

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7704 | 6359 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7705 | 6361 | 30 | 30 | 0.39% | 0.47% |  |
| C | 7705 | 6361 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7705 | 6360 | 2160 | 2160 | 28.03% | 33.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 44050 | 244.84 | 886 | 872 | 176.4 |
| A | 5 | 168 | 15137 | 80.89 | 886 | 872 | 176.4 |
| A | 13 | 254 | 10201 | 52.9 | 886 | 872 | 176.4 |
| B | 3 | 64 | 81218 | 495.06 | 867 | 849 | 162.3 |
| B | 0 | 190 | 41859 | 252.62 | 867 | 849 | 162.3 |
| B | 5 | 250 | 35892 | 215.86 | 867 | 849 | 162.3 |
| C | 14 | 238 | 131730 | 692.39 | 826 | 832 | 189.1 |
| C | 0 | 207 | 14272 | 71.09 | 826 | 832 | 189.1 |
| C | 0 | 10 | 10741 | 52.41 | 826 | 832 | 189.1 |
| D | 14 | 34 | 2541424 | 14383.81 | 726 | 707 | 176.6 |
| D | 1 | 52 | 2380948 | 13475.3 | 726 | 707 | 176.6 |
| D | 1 | 239 | 550644 | 3113.37 | 726 | 707 | 176.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

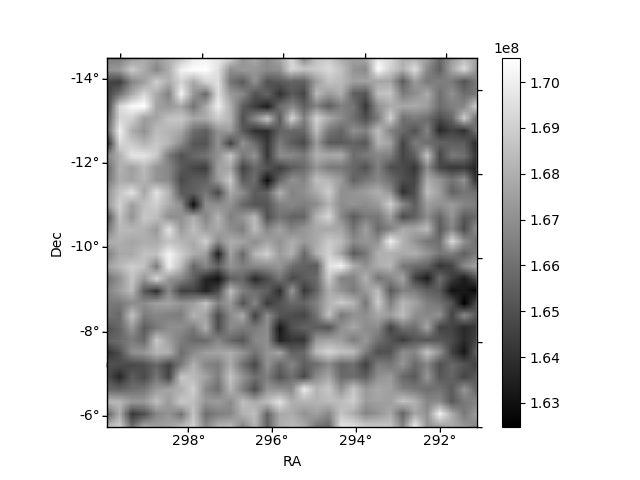

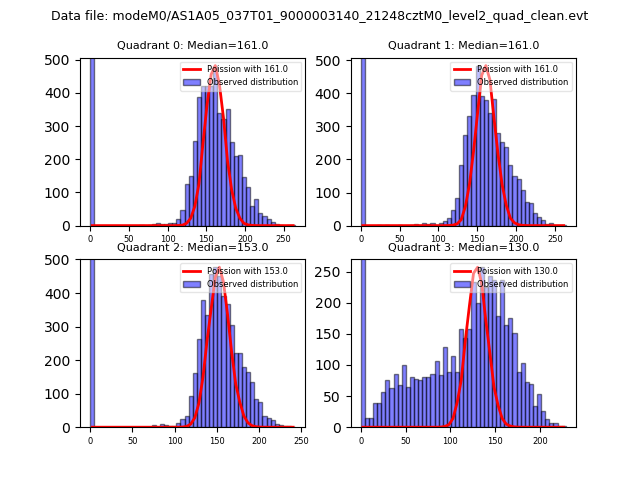

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

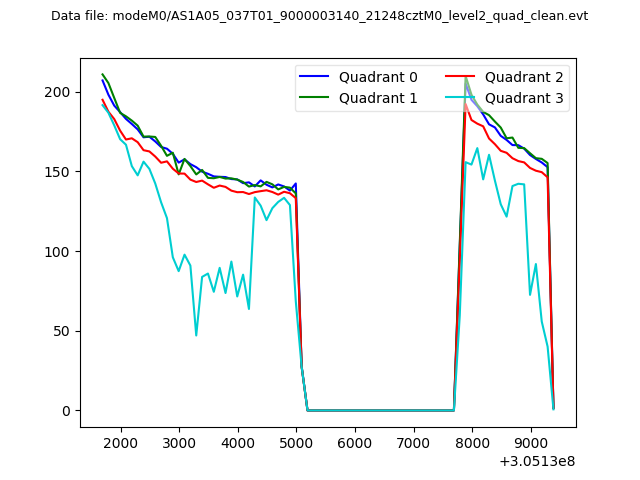

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

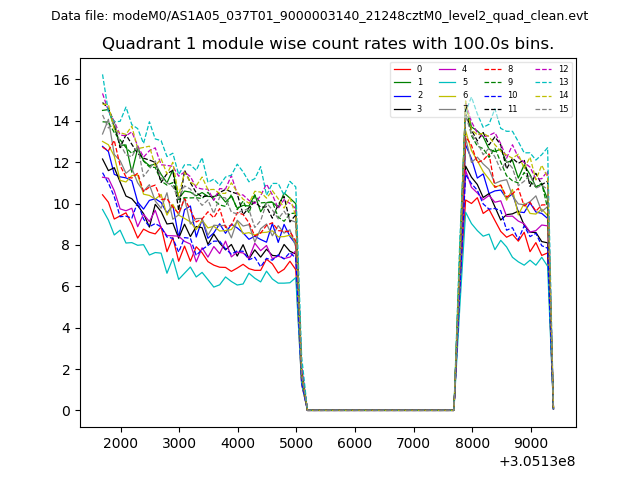

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

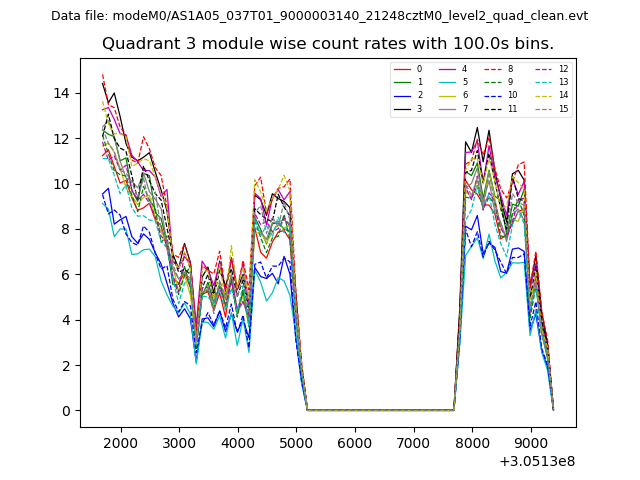

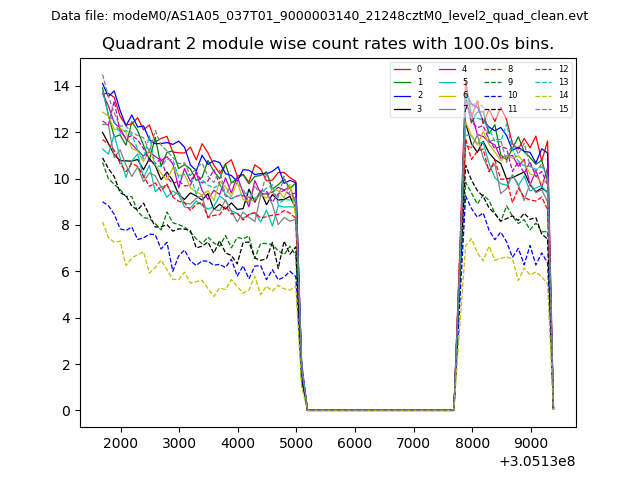

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

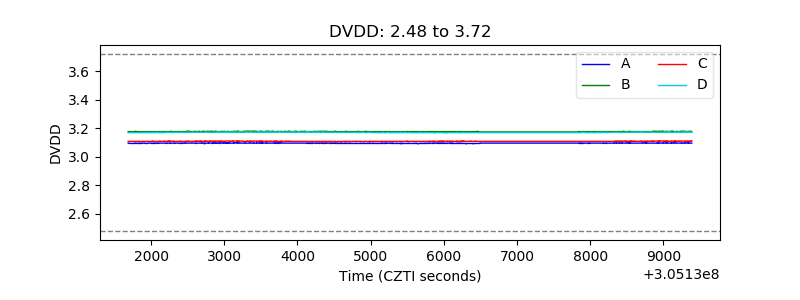

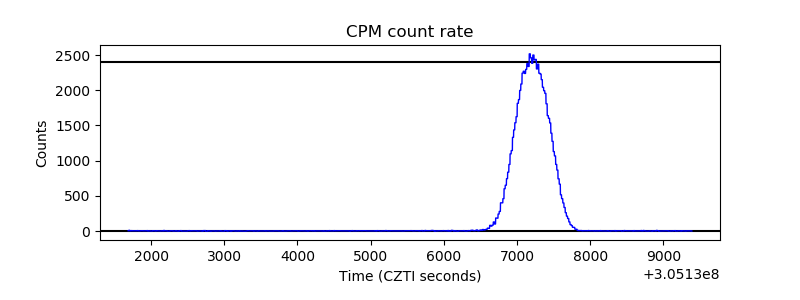

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

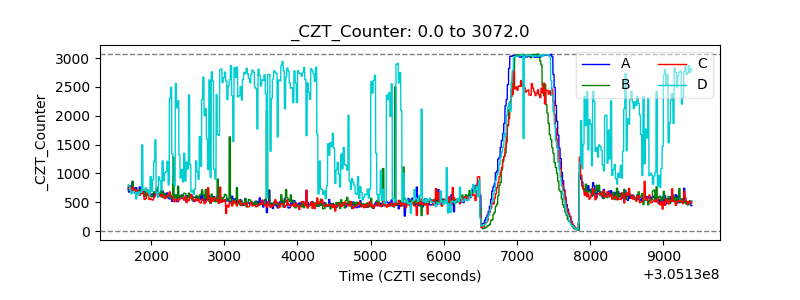

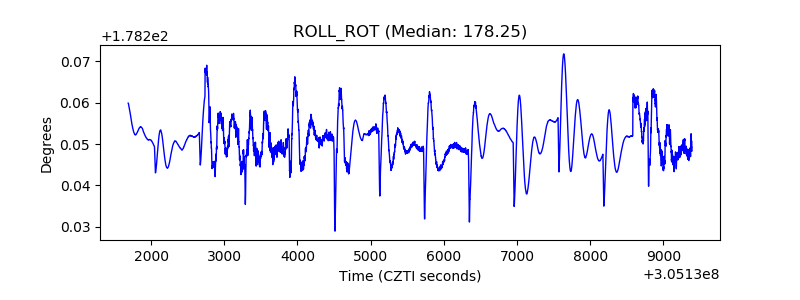

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

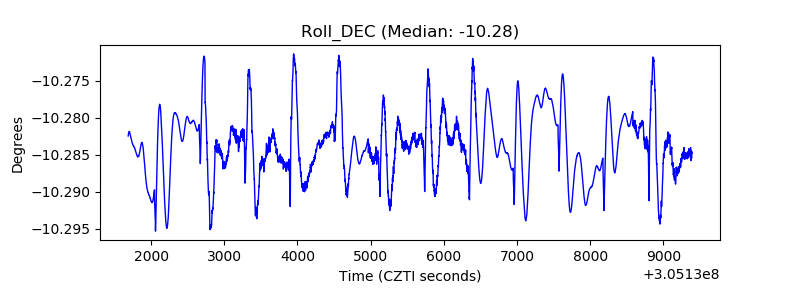

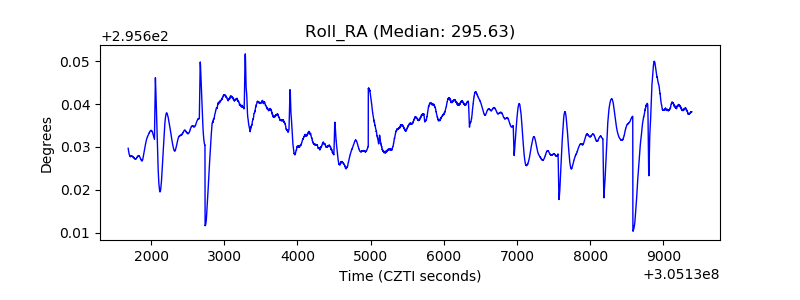

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
