| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_037T01_9000003140_21263cztM0_level2.evt | modeM0/AS1A05_037T01_9000003140_21263cztM0_level2_quad_clean.evt |
| Size (bytes) | 571,501,440 | 114,465,600 |
| Size | 545.0 MB | 109.2 MB |
| Events in quadrant A | 3,458,984 | 788,335 |
| Events in quadrant B | 3,539,502 | 790,898 |
| Events in quadrant C | 3,363,663 | 750,349 |
| Events in quadrant D | 6,514,617 | 692,936 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14343 | 1 |
| B | 0 | 14627 | 1 |
| C | 0 | 13991 | 1 |
| D | 0 | 23641 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6360 | 117 | 1.839623% |
| B | 6361 | 136 | 2.138029% |
| C | 6361 | 144 | 2.263795% |
| D | 6360 | 861 | 13.537736% |

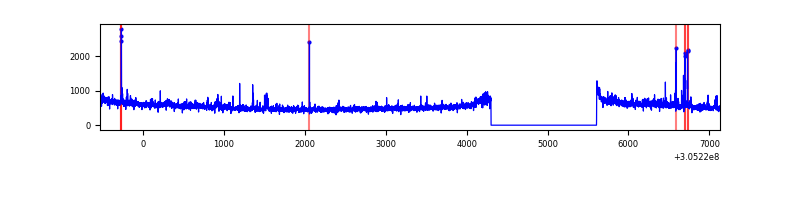

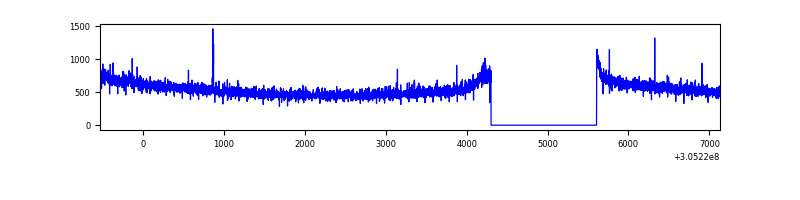

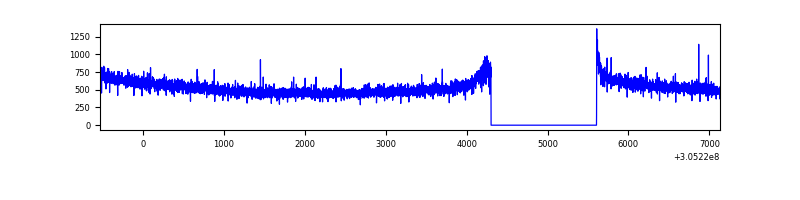

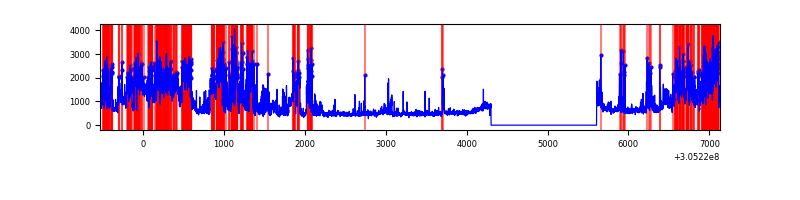

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7665 | 6360 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7666 | 6361 | 9 | 9 | 0.12% | 0.14% |  |
| C | 7666 | 6361 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7665 | 6360 | 641 | 641 | 8.36% | 10.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 14802 | 78.52 | 887 | 871 | 177.4 |
| A | 13 | 252 | 14126 | 74.71 | 887 | 871 | 177.4 |
| A | 12 | 96 | 10200 | 52.58 | 887 | 871 | 177.4 |
| B | 0 | 190 | 41766 | 247.75 | 872 | 854 | 165.1 |
| B | 0 | 228 | 28486 | 167.33 | 872 | 854 | 165.1 |
| B | 3 | 64 | 26646 | 156.19 | 872 | 854 | 165.1 |
| C | 14 | 238 | 132131 | 689.86 | 827 | 834 | 190.3 |
| C | 13 | 61 | 5881 | 26.52 | 827 | 834 | 190.3 |
| C | 0 | 10 | 4230 | 17.84 | 827 | 834 | 190.3 |
| D | 12 | 235 | 1032807 | 5222.69 | 829 | 811 | 197.6 |
| D | 13 | 174 | 944622 | 4776.41 | 829 | 811 | 197.6 |
| D | 1 | 52 | 643524 | 3252.62 | 829 | 811 | 197.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

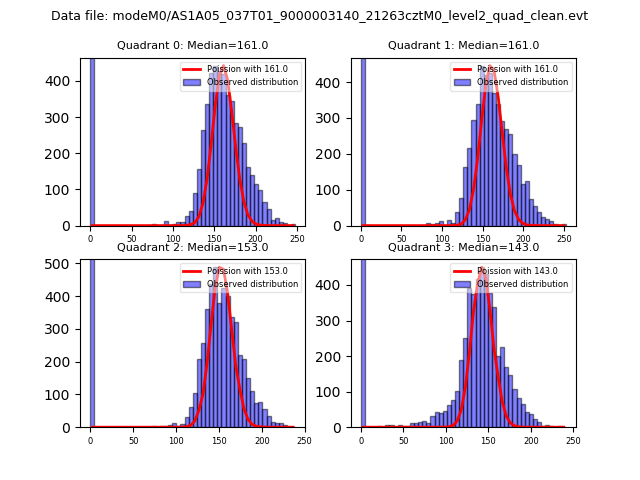

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

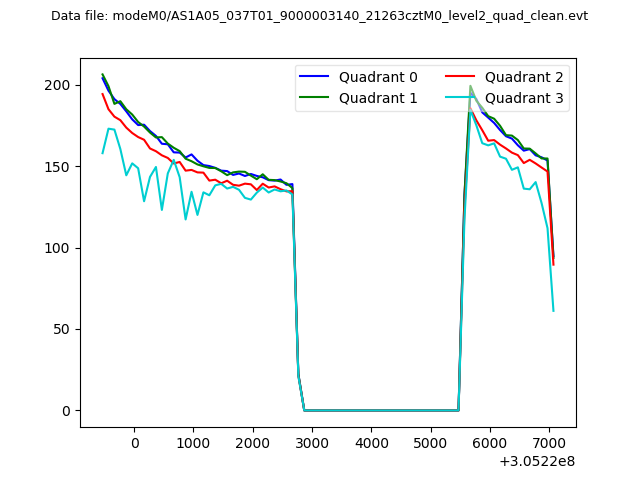

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

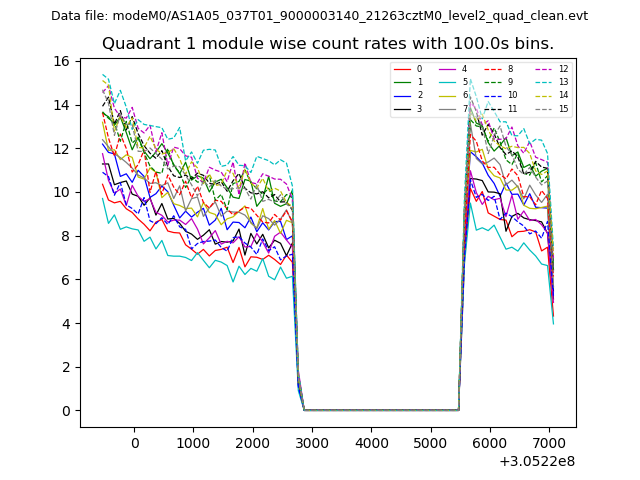

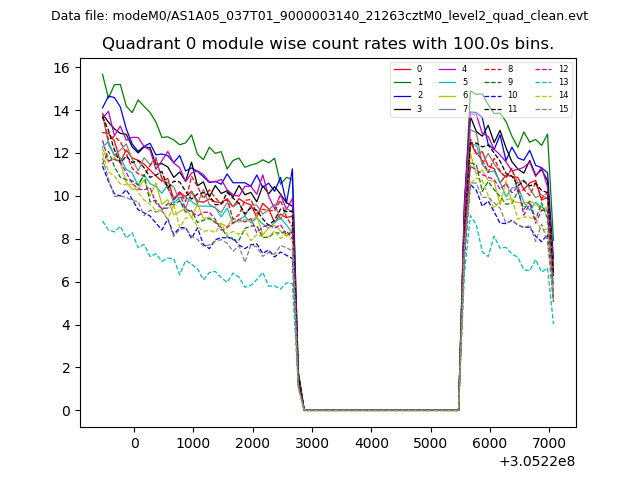

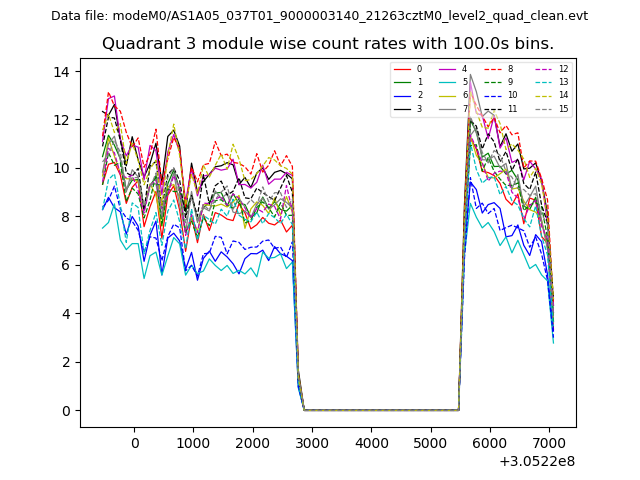

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

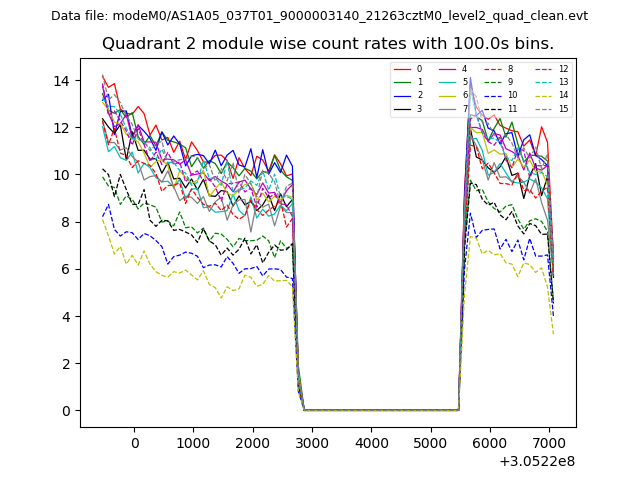

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

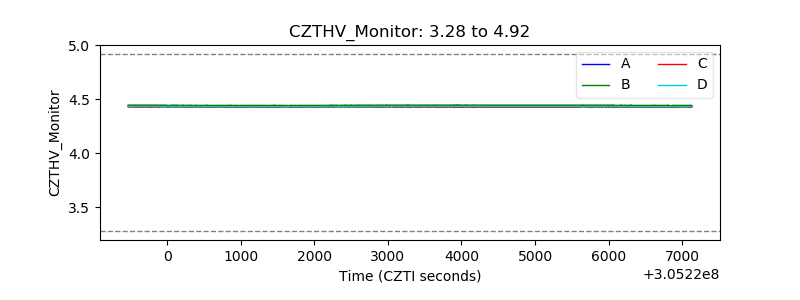

| CZT HV Monitor |  |

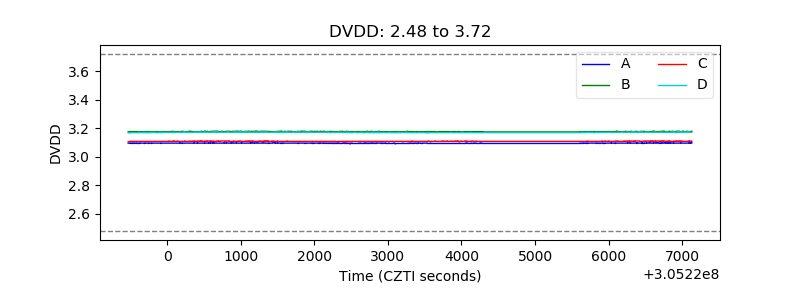

| D_VDD |  |

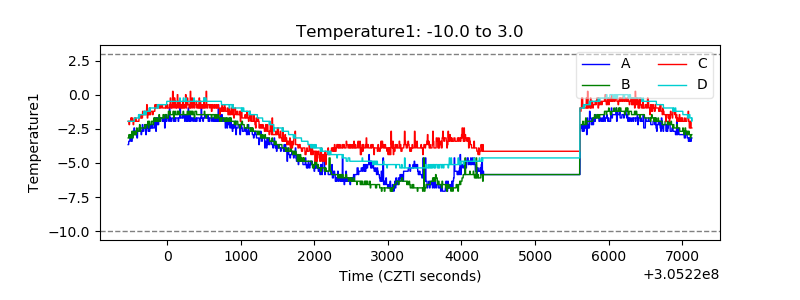

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

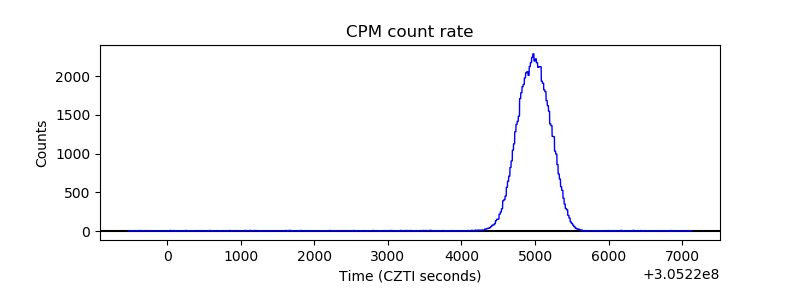

| _CPM_Rate |  |

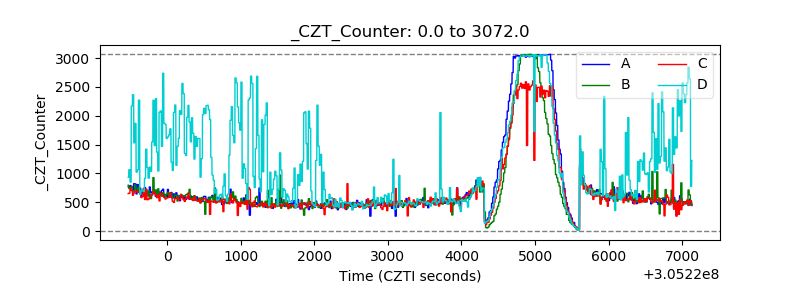

| CZT Counter |  |
| +2.5 Volts monitor |  |

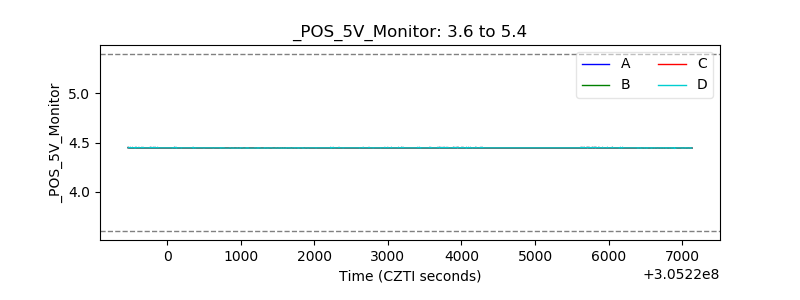

| +5 Volts monitor |  |

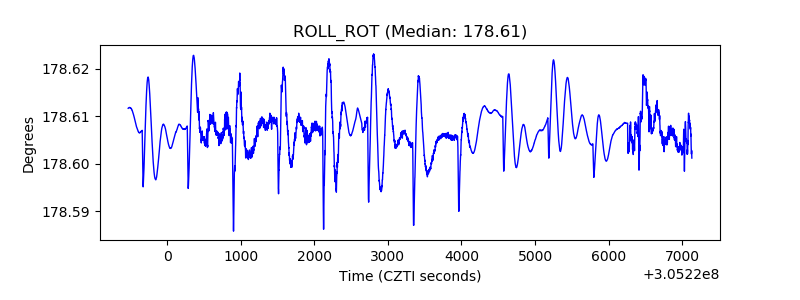

| _ROLL_ROT |  |

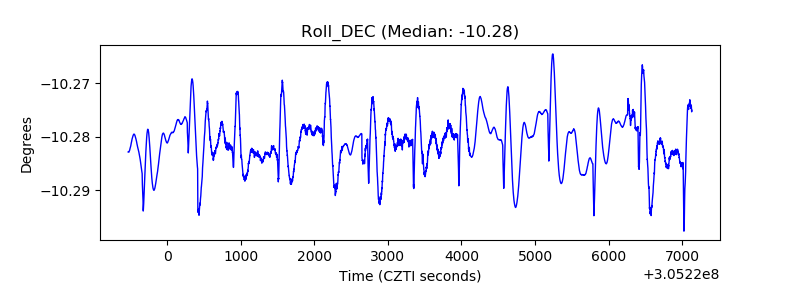

| _Roll_DEC |  |

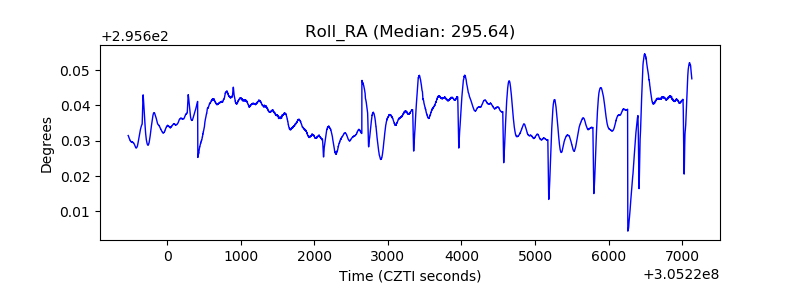

| _Roll_RA |  |

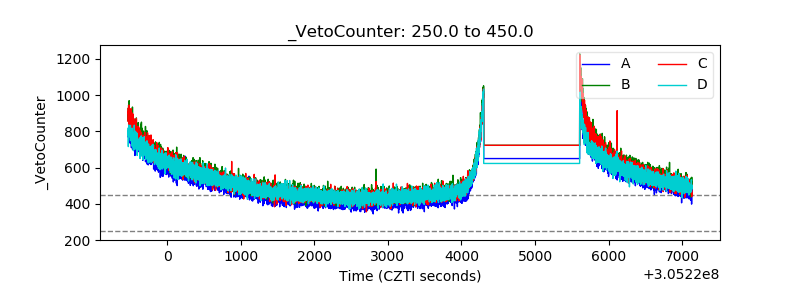

| Veto Counter |  |
