| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_037T01_9000003140_21264cztM0_level2.evt | modeM0/AS1A05_037T01_9000003140_21264cztM0_level2_quad_clean.evt |
| Size (bytes) | 492,577,920 | 94,962,240 |
| Size | 469.8 MB | 90.6 MB |
| Events in quadrant A | 3,139,239 | 633,249 |
| Events in quadrant B | 3,281,849 | 639,451 |
| Events in quadrant C | 3,102,682 | 608,230 |
| Events in quadrant D | 4,982,727 | 571,492 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13090 | 1 |
| B | 0 | 13573 | 1 |
| C | 0 | 12932 | 1 |
| D | 0 | 18918 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6065 | 101 | 1.665293% |
| B | 6065 | 122 | 2.011542% |
| C | 6065 | 116 | 1.912613% |
| D | 6066 | 414 | 6.824926% |

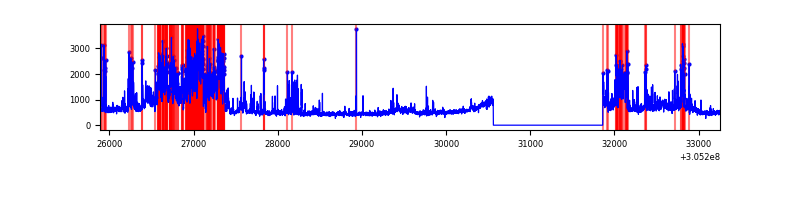

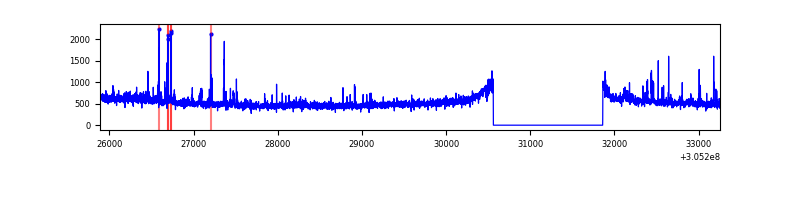

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7365 | 6065 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7365 | 6066 | 6 | 6 | 0.08% | 0.10% |  |
| C | 7365 | 6065 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7366 | 6067 | 329 | 329 | 4.47% | 5.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 252 | 17363 | 102.92 | 807 | 793 | 161.0 |
| A | 13 | 254 | 9255 | 52.56 | 807 | 793 | 161.0 |
| A | 0 | 226 | 7101 | 39.18 | 807 | 793 | 161.0 |
| B | 0 | 190 | 66311 | 433.95 | 800 | 782 | 151.0 |
| B | 3 | 64 | 29011 | 186.94 | 800 | 782 | 151.0 |
| B | 0 | 230 | 18124 | 114.84 | 800 | 782 | 151.0 |
| C | 14 | 238 | 121915 | 690.01 | 760 | 766 | 175.6 |
| C | 3 | 233 | 9394 | 49.14 | 760 | 766 | 175.6 |
| C | 0 | 10 | 6337 | 31.73 | 760 | 766 | 175.6 |
| D | 12 | 235 | 1204484 | 6493.62 | 767 | 746 | 185.4 |
| D | 1 | 52 | 380713 | 2049.75 | 767 | 746 | 185.4 |
| D | 13 | 174 | 151824 | 815.0 | 767 | 746 | 185.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

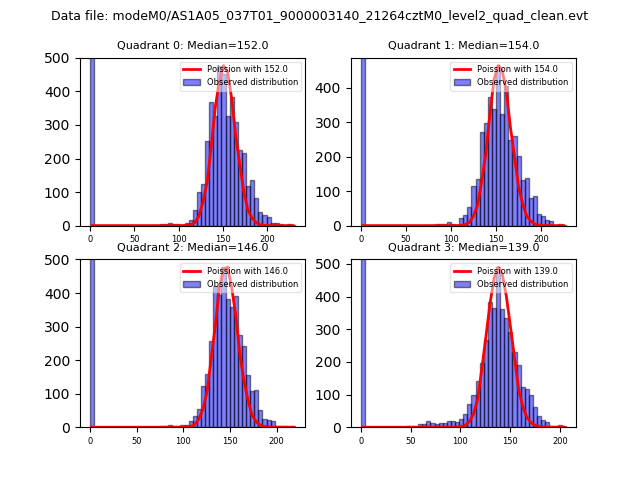

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

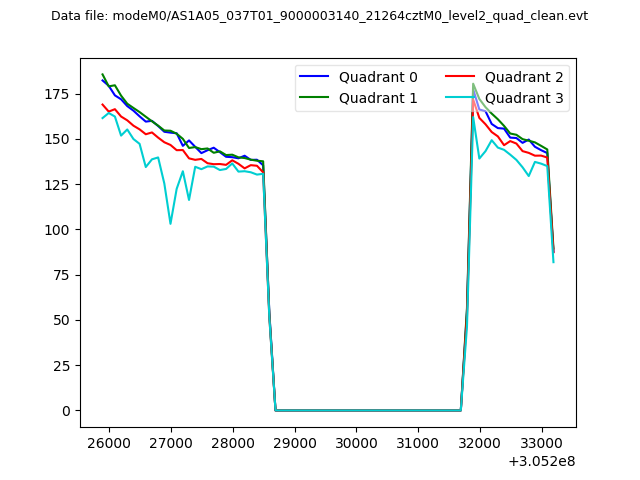

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

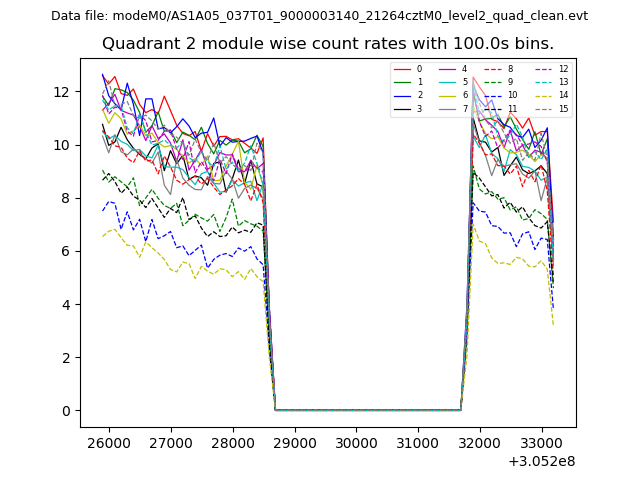

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

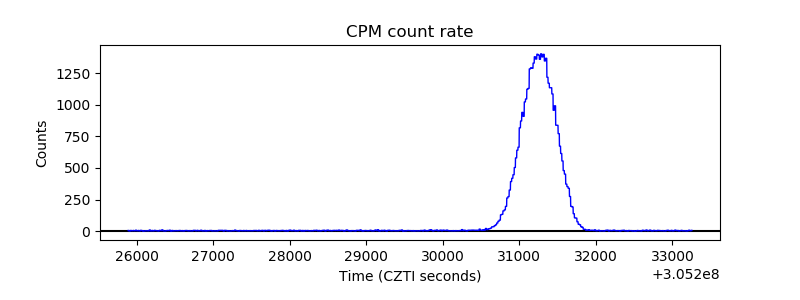

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
