| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_037T01_9000003140_21265cztM0_level2.evt | modeM0/AS1A05_037T01_9000003140_21265cztM0_level2_quad_clean.evt |
| Size (bytes) | 477,800,640 | 93,124,800 |
| Size | 455.7 MB | 88.8 MB |
| Events in quadrant A | 3,218,506 | 604,783 |
| Events in quadrant B | 3,363,456 | 613,115 |
| Events in quadrant C | 3,226,032 | 589,031 |
| Events in quadrant D | 4,224,313 | 563,111 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13716 | 2 |
| B | 0 | 14139 | 2 |
| C | 0 | 13678 | 2 |
| D | 0 | 16912 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6455 | 41 | 0.635167% |
| B | 6455 | 78 | 1.208366% |
| C | 6455 | 95 | 1.471727% |
| D | 6455 | 162 | 2.509682% |

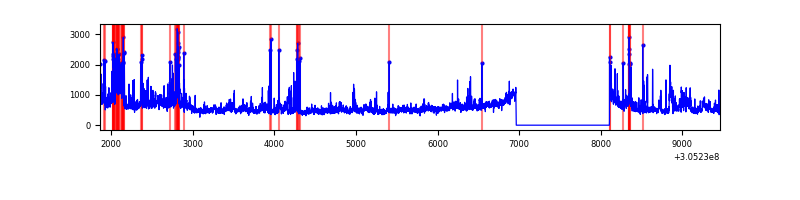

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7600 | 6456 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7600 | 6456 | 8 | 8 | 0.11% | 0.12% |  |
| C | 7600 | 6456 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7600 | 6456 | 66 | 66 | 0.87% | 1.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9503 | 52.07 | 829 | 814 | 166.9 |
| A | 13 | 252 | 7560 | 40.43 | 829 | 814 | 166.9 |
| A | 0 | 226 | 7182 | 38.16 | 829 | 814 | 166.9 |
| B | 0 | 190 | 47087 | 293.35 | 826 | 807 | 157.8 |
| B | 3 | 64 | 43843 | 272.78 | 826 | 807 | 157.8 |
| B | 12 | 111 | 18290 | 110.82 | 826 | 807 | 157.8 |
| C | 14 | 238 | 125768 | 681.75 | 787 | 792 | 183.3 |
| C | 3 | 233 | 17861 | 93.11 | 787 | 792 | 183.3 |
| C | 0 | 10 | 14238 | 73.35 | 787 | 792 | 183.3 |
| D | 1 | 52 | 549352 | 2882.18 | 794 | 776 | 190.3 |
| D | 12 | 235 | 178764 | 935.14 | 794 | 776 | 190.3 |
| D | 13 | 174 | 146394 | 765.07 | 794 | 776 | 190.3 |

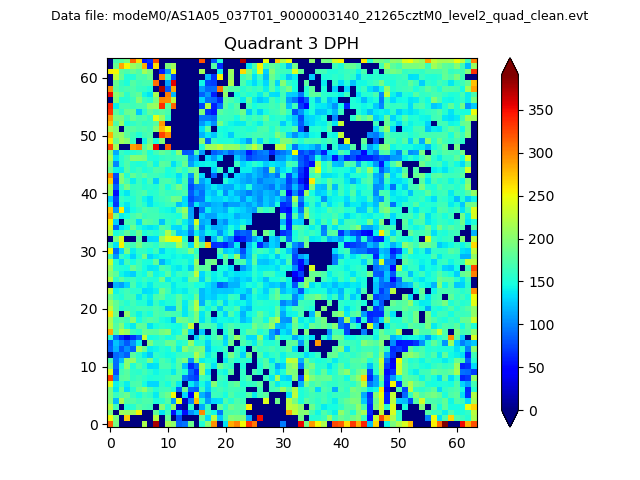

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

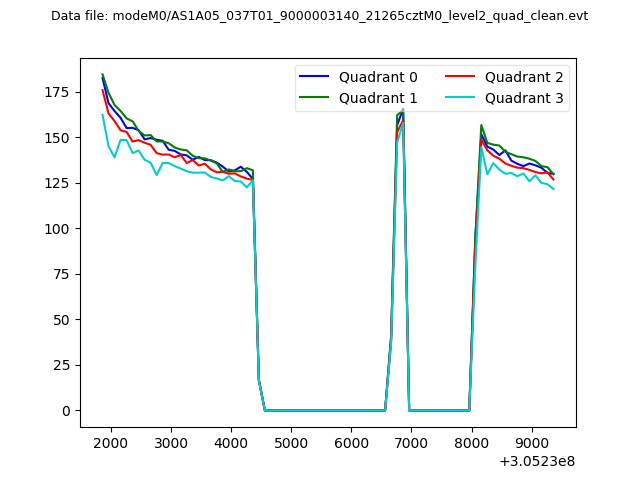

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

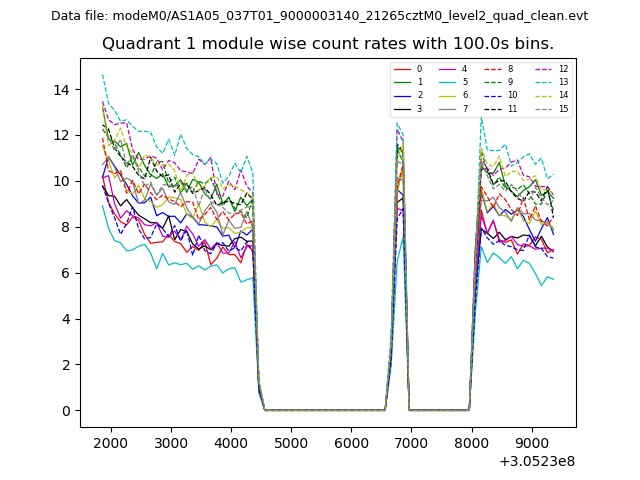

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

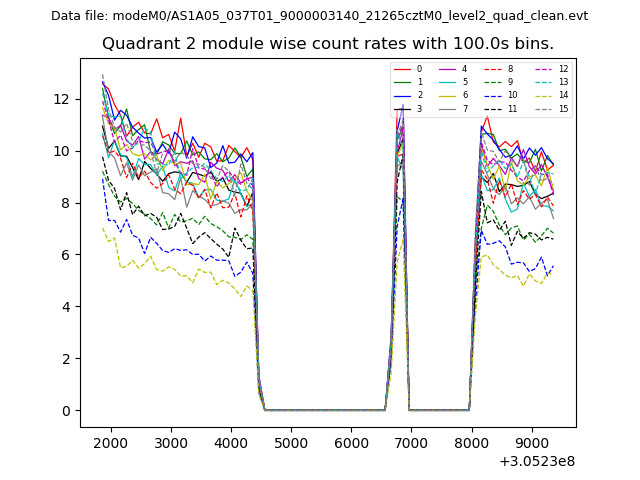

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

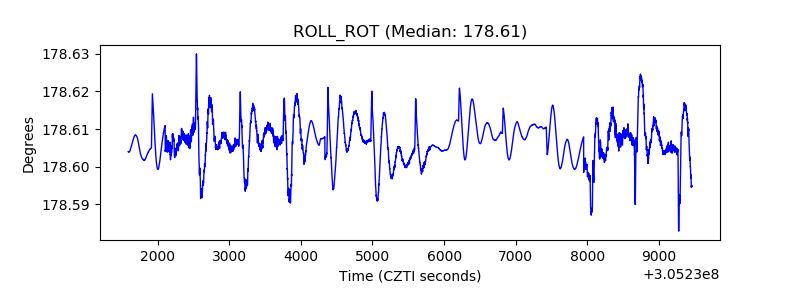

| _ROLL_ROT |  |

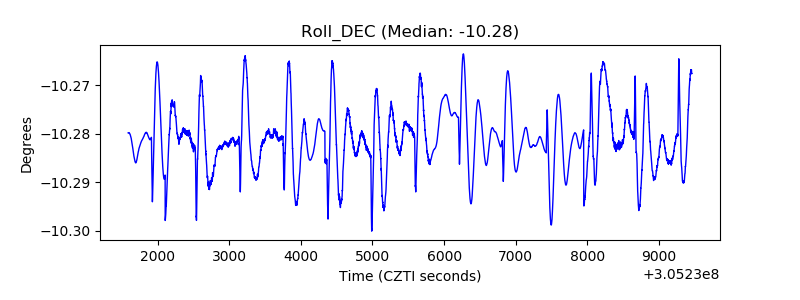

| _Roll_DEC |  |
| _Roll_RA |  |

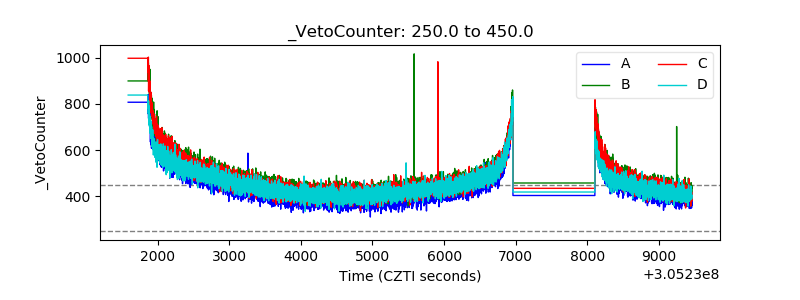

| Veto Counter |  |
