| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_037T01_9000003140_21267cztM0_level2.evt | modeM0/AS1A05_037T01_9000003140_21267cztM0_level2_quad_clean.evt |
| Size (bytes) | 494,202,240 | 103,092,480 |
| Size | 471.3 MB | 98.3 MB |
| Events in quadrant A | 3,460,497 | 663,552 |
| Events in quadrant B | 3,585,866 | 673,344 |
| Events in quadrant C | 3,472,027 | 649,538 |
| Events in quadrant D | 3,954,278 | 629,170 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15033 | 2 |
| B | 0 | 15372 | 2 |
| C | 0 | 14993 | 2 |
| D | 0 | 16751 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7281 | 35 | 0.480703% |
| B | 7281 | 59 | 0.810328% |
| C | 7281 | 63 | 0.865266% |
| D | 7281 | 111 | 1.524516% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7651 | 7282 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7651 | 7282 | 5 | 5 | 0.07% | 0.07% |  |
| C | 7651 | 7282 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7651 | 7282 | 75 | 75 | 0.98% | 1.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 14529 | 76.3 | 886 | 869 | 179.0 |
| A | 13 | 254 | 11388 | 58.75 | 886 | 869 | 179.0 |
| A | 15 | 236 | 9250 | 46.81 | 886 | 869 | 179.0 |
| B | 0 | 197 | 36217 | 207.77 | 883 | 858 | 170.2 |
| B | 0 | 190 | 34722 | 198.98 | 883 | 858 | 170.2 |
| B | 0 | 245 | 29545 | 168.56 | 883 | 858 | 170.2 |
| C | 14 | 238 | 130520 | 654.36 | 846 | 852 | 198.2 |
| C | 3 | 233 | 25227 | 123.01 | 846 | 852 | 198.2 |
| C | 8 | 128 | 7484 | 33.47 | 846 | 852 | 198.2 |
| D | 12 | 235 | 147408 | 698.48 | 854 | 828 | 209.9 |
| D | 13 | 174 | 139742 | 661.95 | 854 | 828 | 209.9 |
| D | 12 | 238 | 112799 | 533.56 | 854 | 828 | 209.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

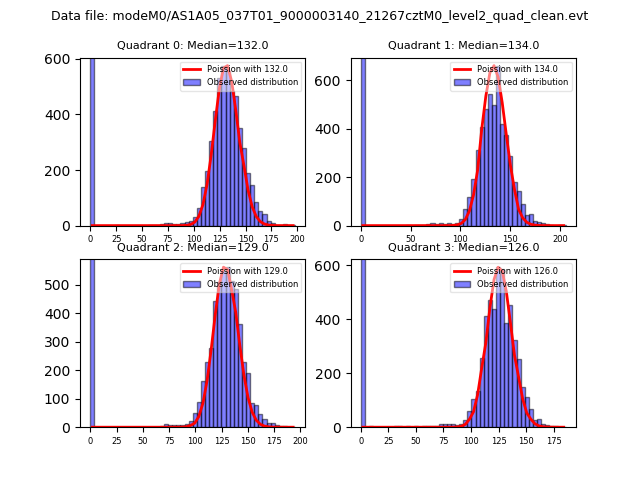

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

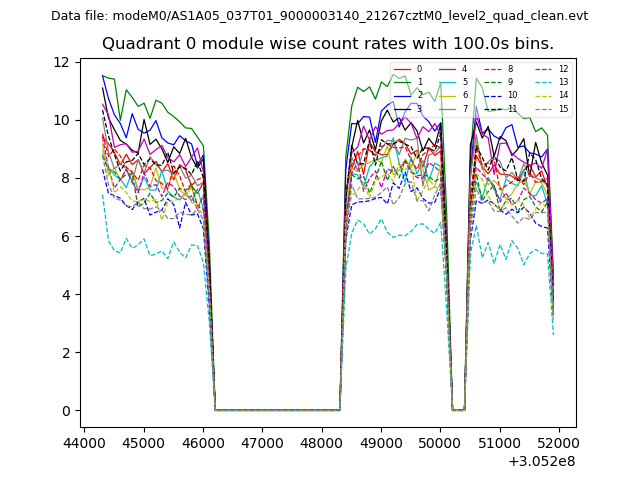

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
