| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_037T01_9000003140_21272cztM0_level2.evt | modeM0/AS1A05_037T01_9000003140_21272cztM0_level2_quad_clean.evt |
| Size (bytes) | 555,171,840 | 74,350,080 |
| Size | 529.5 MB | 70.9 MB |
| Events in quadrant A | 3,329,141 | 446,897 |
| Events in quadrant B | 3,434,793 | 453,844 |
| Events in quadrant C | 3,477,939 | 441,467 |
| Events in quadrant D | 6,103,486 | 428,154 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14169 | 2 |
| B | 0 | 14368 | 2 |
| C | 0 | 14493 | 2 |
| D | 0 | 22686 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6896 | 84 | 1.218097% |
| B | 6896 | 93 | 1.348608% |
| C | 6896 | 118 | 1.711137% |
| D | 6896 | 612 | 8.874710% |

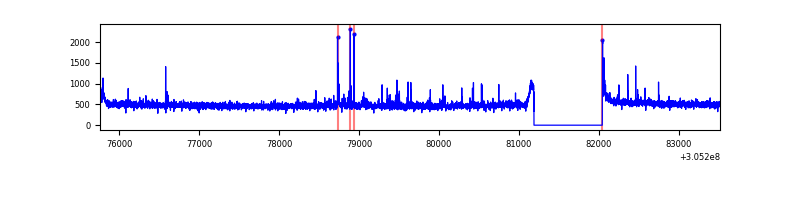

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7751 | 6896 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7751 | 6896 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7751 | 6896 | 5 | 5 | 0.06% | 0.07% |  |
| D | 7751 | 6896 | 528 | 528 | 6.81% | 7.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 12718 | 68.88 | 854 | 837 | 172.5 |
| A | 13 | 254 | 10727 | 57.34 | 854 | 837 | 172.5 |
| A | 12 | 96 | 9711 | 51.45 | 854 | 837 | 172.5 |
| B | 0 | 190 | 32900 | 194.86 | 853 | 831 | 164.6 |
| B | 12 | 111 | 19954 | 116.2 | 853 | 831 | 164.6 |
| B | 11 | 111 | 17620 | 102.02 | 853 | 831 | 164.6 |
| C | 3 | 233 | 126266 | 652.35 | 818 | 822 | 192.3 |
| C | 14 | 238 | 126258 | 652.31 | 818 | 822 | 192.3 |
| C | 0 | 207 | 36023 | 183.06 | 818 | 822 | 192.3 |
| D | 13 | 174 | 2500543 | 12731.05 | 811 | 787 | 196.4 |
| D | 1 | 52 | 348332 | 1770.02 | 811 | 787 | 196.4 |
| D | 13 | 153 | 75131 | 378.63 | 811 | 787 | 196.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

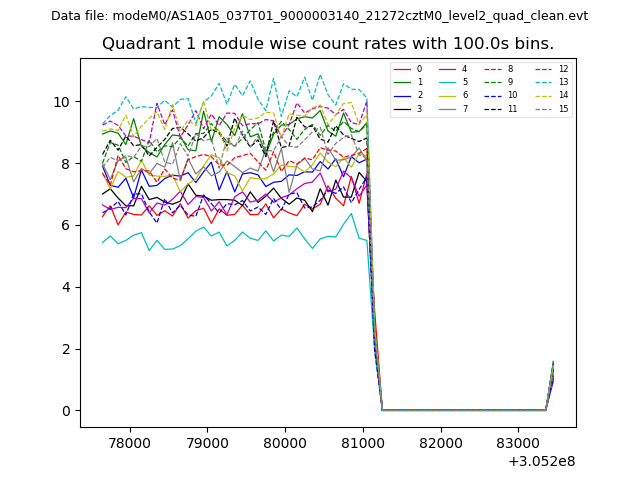

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

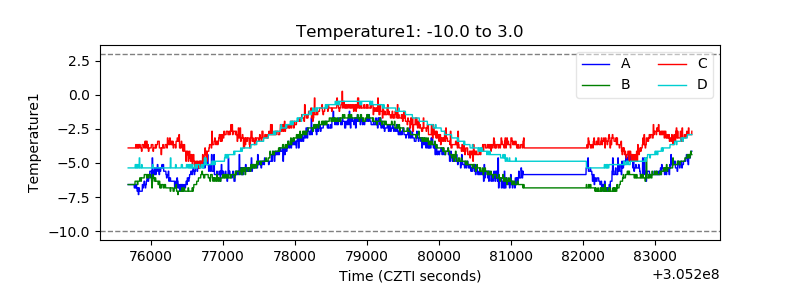

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

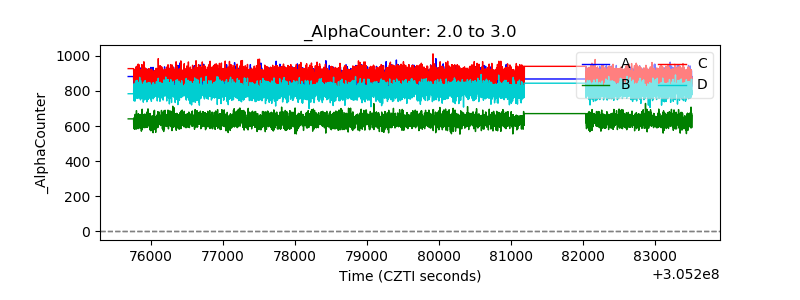

| Alpha Counter |  |
| _CPM_Rate |  |

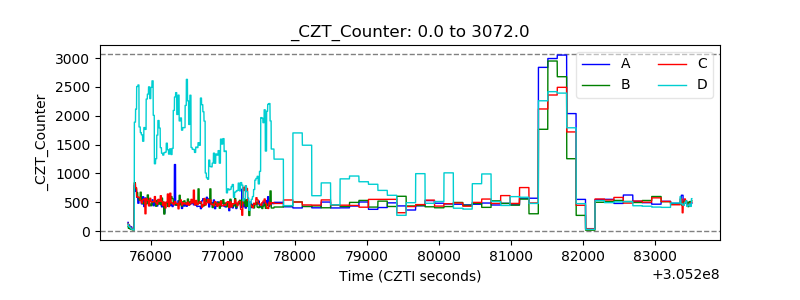

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

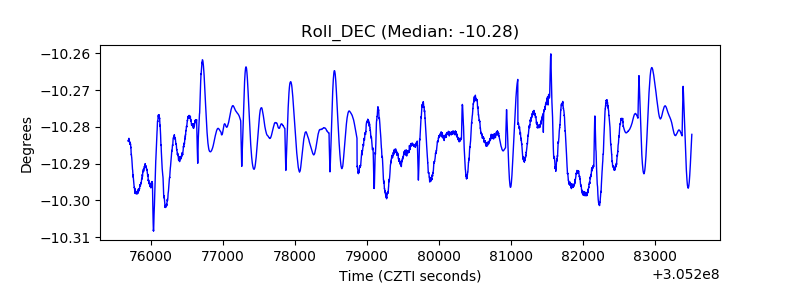

| _Roll_DEC |  |

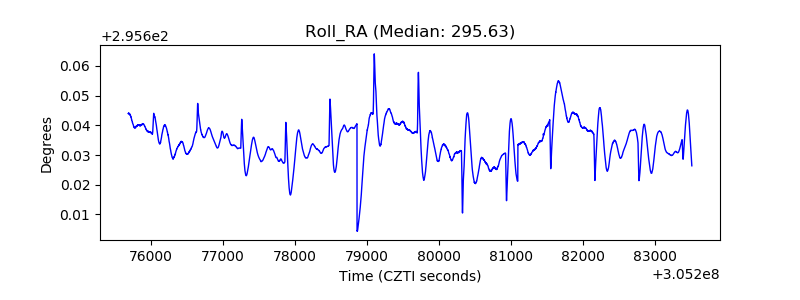

| _Roll_RA |  |

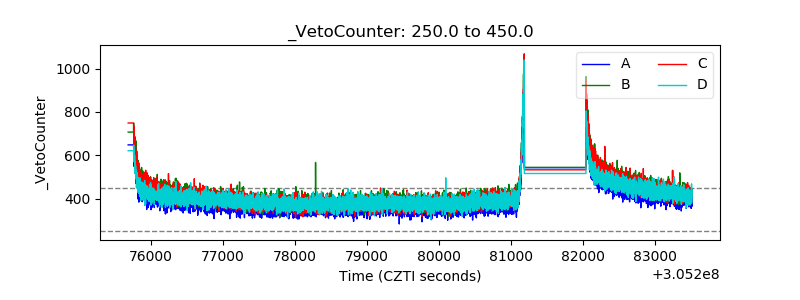

| Veto Counter |  |
