| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_037T01_9000003140_21278cztM0_level2.evt | modeM0/AS1A05_037T01_9000003140_21278cztM0_level2_quad_clean.evt |
| Size (bytes) | 513,296,640 | 112,726,080 |
| Size | 489.5 MB | 107.5 MB |
| Events in quadrant A | 3,458,498 | 764,924 |
| Events in quadrant B | 3,837,484 | 767,297 |
| Events in quadrant C | 3,525,968 | 727,777 |
| Events in quadrant D | 4,291,462 | 710,135 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14327 | 2 |
| B | 0 | 15692 | 2 |
| C | 0 | 14426 | 2 |
| D | 0 | 16967 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6362 | 117 | 1.839044% |
| B | 6362 | 134 | 2.106256% |
| C | 6362 | 179 | 2.813581% |
| D | 6362 | 181 | 2.845017% |

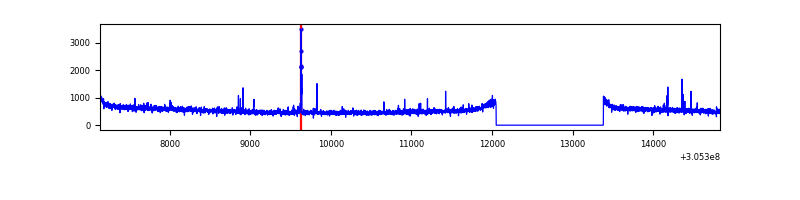

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7692 | 6362 | 5 | 5 | 0.07% | 0.08% |  |
| B | 7692 | 6362 | 12 | 12 | 0.16% | 0.19% |  |
| C | 7692 | 6362 | 27 | 27 | 0.35% | 0.42% |  |
| D | 7692 | 6362 | 85 | 85 | 1.11% | 1.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 33064 | 183.39 | 881 | 866 | 175.6 |
| A | 5 | 16 | 15110 | 81.13 | 881 | 866 | 175.6 |
| A | 4 | 2 | 12929 | 68.71 | 881 | 866 | 175.6 |
| B | 10 | 245 | 185677 | 1143.51 | 862 | 846 | 161.6 |
| B | 0 | 189 | 176927 | 1089.38 | 862 | 846 | 161.6 |
| B | 0 | 190 | 32593 | 196.41 | 862 | 846 | 161.6 |
| C | 0 | 207 | 171960 | 909.09 | 820 | 829 | 188.2 |
| C | 14 | 238 | 132062 | 697.14 | 820 | 829 | 188.2 |
| C | 0 | 10 | 21813 | 111.47 | 820 | 829 | 188.2 |
| D | 13 | 174 | 365223 | 1793.76 | 843 | 822 | 203.1 |
| D | 1 | 52 | 271619 | 1333.0 | 843 | 822 | 203.1 |
| D | 12 | 238 | 128969 | 630.8 | 843 | 822 | 203.1 |

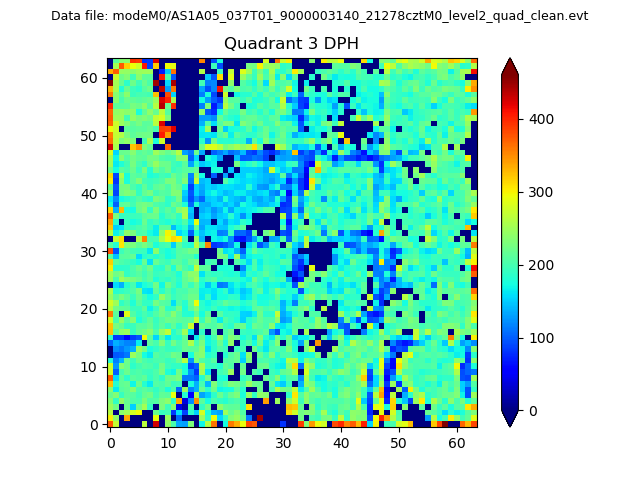

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

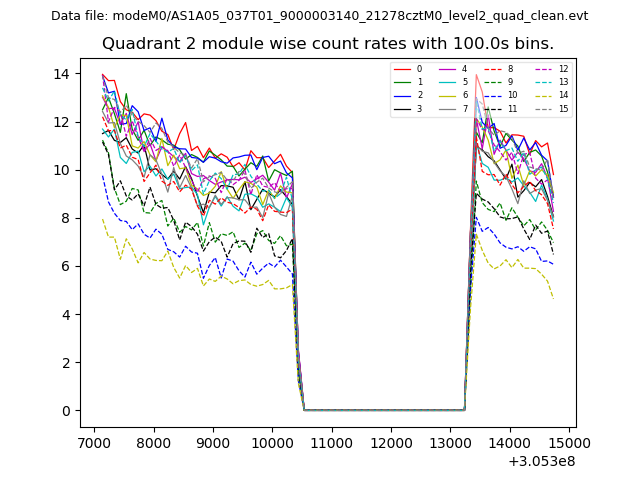

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

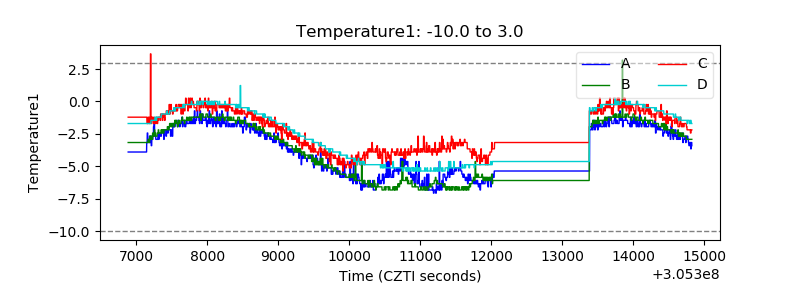

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

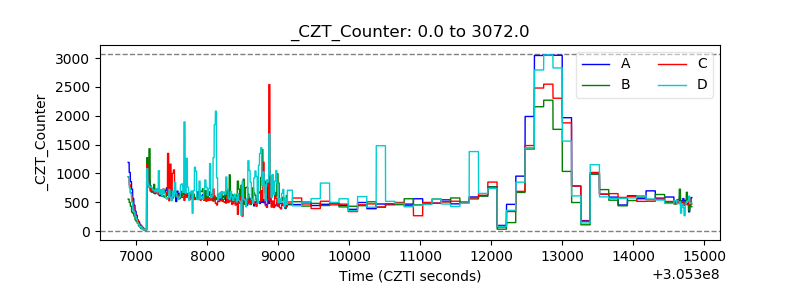

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

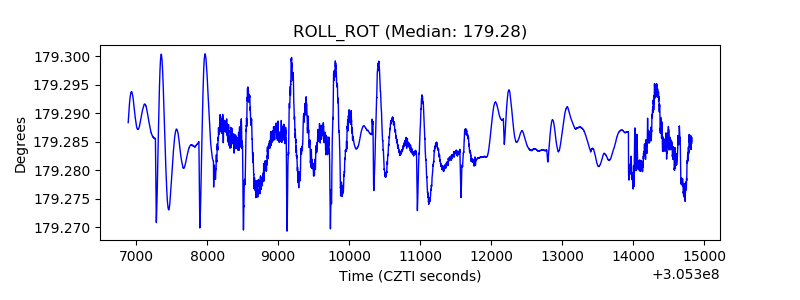

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

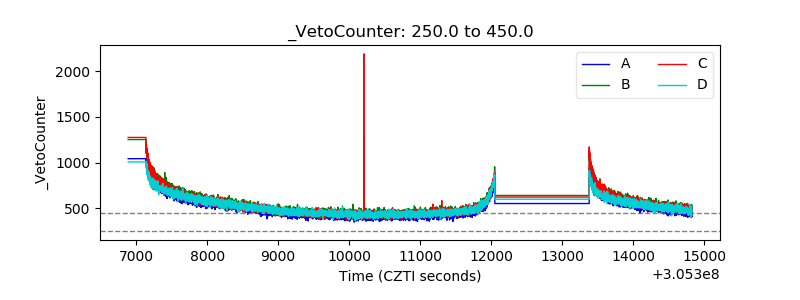

| Veto Counter |  |
