| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_037T01_9000003140_21281cztM0_level2.evt | modeM0/AS1A05_037T01_9000003140_21281cztM0_level2_quad_clean.evt |
| Size (bytes) | 513,288,000 | 106,747,200 |
| Size | 489.5 MB | 101.8 MB |
| Events in quadrant A | 3,601,342 | 685,928 |
| Events in quadrant B | 3,743,430 | 700,195 |
| Events in quadrant C | 3,649,930 | 675,027 |
| Events in quadrant D | 4,049,943 | 658,970 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15533 | 2 |
| B | 0 | 15880 | 3 |
| C | 0 | 15661 | 2 |
| D | 0 | 16923 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7359 | 69 | 0.937627% |
| B | 7359 | 110 | 1.494768% |
| C | 7359 | 124 | 1.685012% |
| D | 7359 | 78 | 1.059927% |

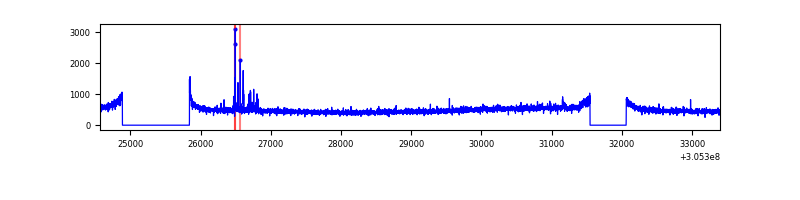

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8829 | 7361 | 4 | 4 | 0.05% | 0.05% |  |
| B | 8829 | 7360 | 3 | 3 | 0.03% | 0.04% |  |
| C | 8829 | 7361 | 3 | 3 | 0.03% | 0.04% |  |
| D | 8829 | 7361 | 32 | 32 | 0.36% | 0.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 20570 | 105.42 | 924 | 904 | 186.5 |
| A | 13 | 254 | 11713 | 57.94 | 924 | 904 | 186.5 |
| A | 9 | 143 | 9411 | 45.6 | 924 | 904 | 186.5 |
| B | 0 | 190 | 31667 | 172.16 | 925 | 901 | 178.7 |
| B | 3 | 64 | 28953 | 156.97 | 925 | 901 | 178.7 |
| B | 0 | 230 | 22913 | 123.18 | 925 | 901 | 178.7 |
| C | 14 | 238 | 138146 | 657.47 | 883 | 886 | 208.8 |
| C | 0 | 207 | 40429 | 189.41 | 883 | 886 | 208.8 |
| C | 3 | 233 | 18193 | 82.9 | 883 | 886 | 208.8 |
| D | 1 | 52 | 247762 | 1133.44 | 895 | 869 | 217.8 |
| D | 13 | 174 | 238010 | 1088.67 | 895 | 869 | 217.8 |
| D | 12 | 235 | 64741 | 293.23 | 895 | 869 | 217.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

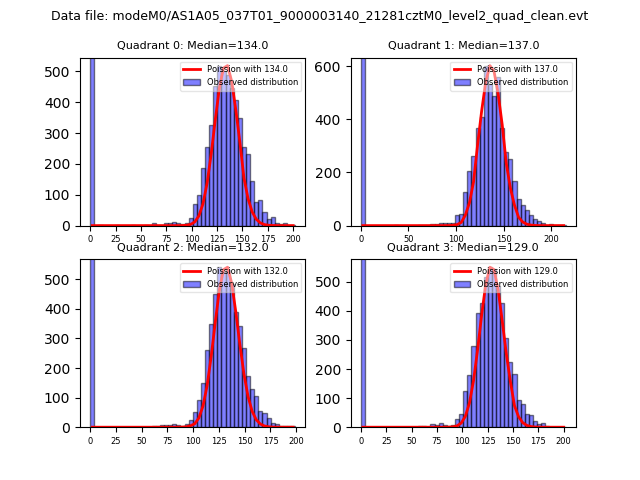

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

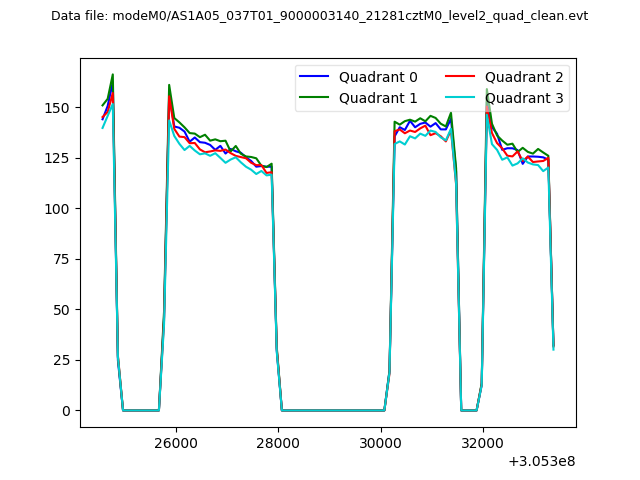

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

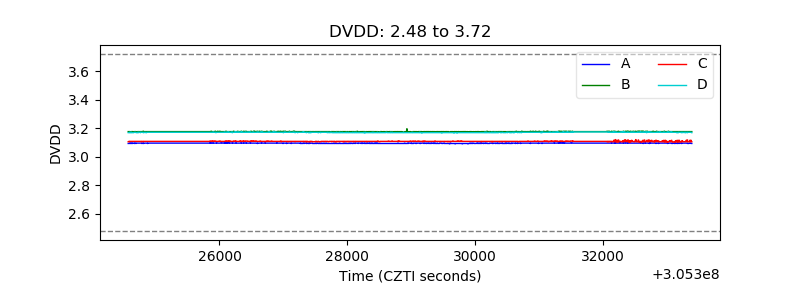

| D_VDD |  |

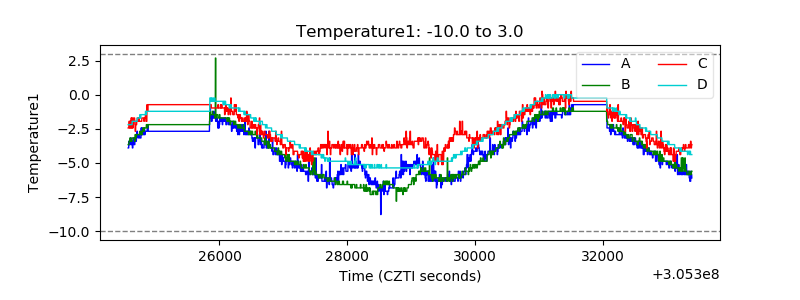

| Temperature 1 |  |

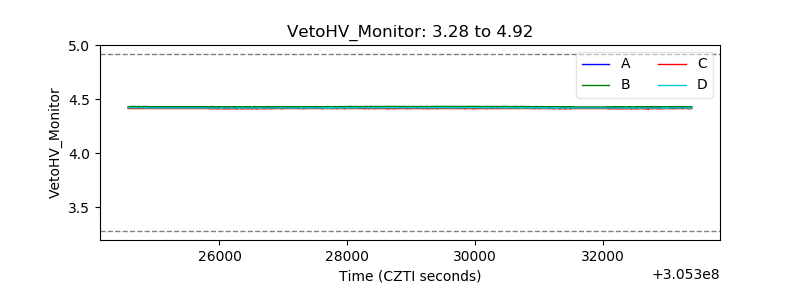

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

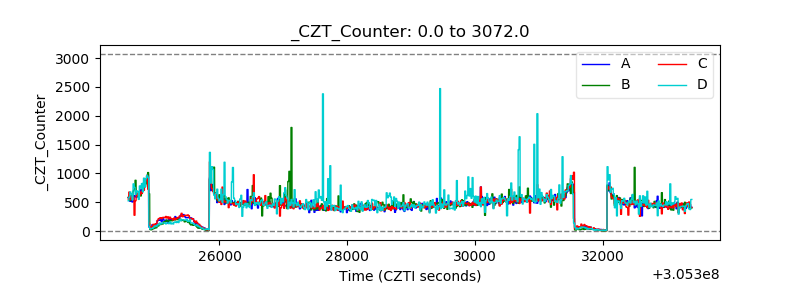

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

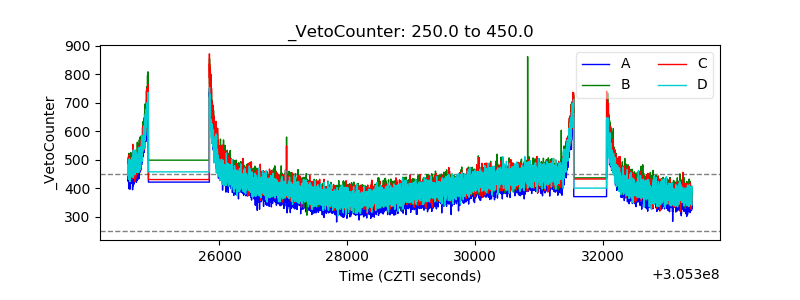

| Veto Counter |  |
