| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_140T01_9000003142_21287cztM0_level2.evt | modeM0/AS1T03_140T01_9000003142_21287cztM0_level2_quad_clean.evt |
| Size (bytes) | 495,216,000 | 83,278,080 |
| Size | 472.3 MB | 79.4 MB |
| Events in quadrant A | 3,329,379 | 523,889 |
| Events in quadrant B | 3,590,526 | 525,929 |
| Events in quadrant C | 3,358,441 | 513,263 |
| Events in quadrant D | 4,259,539 | 486,953 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14091 | 2 |
| B | 0 | 14724 | 2 |
| C | 0 | 14042 | 2 |
| D | 0 | 16954 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6765 | 78 | 1.152993% |
| B | 6765 | 156 | 2.305987% |
| C | 6765 | 109 | 1.611234% |
| D | 6765 | 315 | 4.656319% |

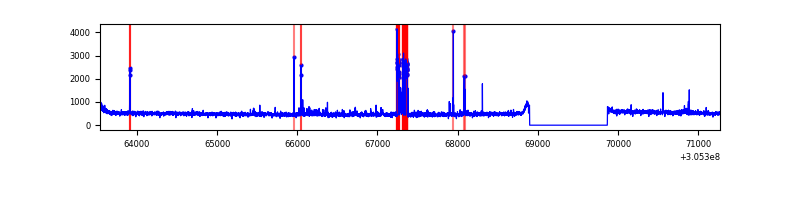

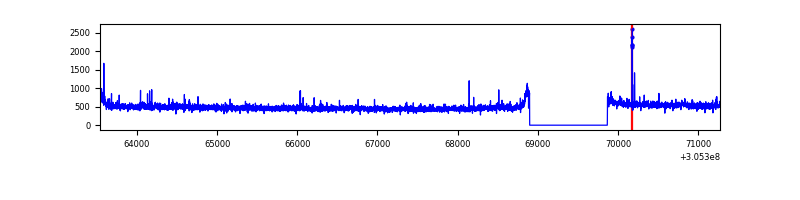

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7735 | 6765 | 5 | 5 | 0.06% | 0.07% |  |
| B | 7735 | 6765 | 68 | 68 | 0.88% | 1.01% |  |
| C | 7735 | 6765 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7735 | 6765 | 247 | 247 | 3.19% | 3.65% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 21858 | 123.13 | 849 | 831 | 170.8 |
| A | 9 | 143 | 15216 | 84.23 | 849 | 831 | 170.8 |
| A | 15 | 174 | 11221 | 60.84 | 849 | 831 | 170.8 |
| B | 3 | 64 | 229544 | 1418.85 | 842 | 820 | 161.2 |
| B | 0 | 230 | 32031 | 193.61 | 842 | 820 | 161.2 |
| B | 12 | 111 | 19612 | 116.57 | 842 | 820 | 161.2 |
| C | 14 | 238 | 126878 | 662.75 | 813 | 817 | 190.2 |
| C | 3 | 233 | 60589 | 314.24 | 813 | 817 | 190.2 |
| C | 13 | 61 | 5614 | 25.22 | 813 | 817 | 190.2 |
| D | 7 | 38 | 725177 | 3614.25 | 814 | 790 | 200.4 |
| D | 1 | 52 | 174008 | 864.25 | 814 | 790 | 200.4 |
| D | 12 | 235 | 108657 | 538.19 | 814 | 790 | 200.4 |

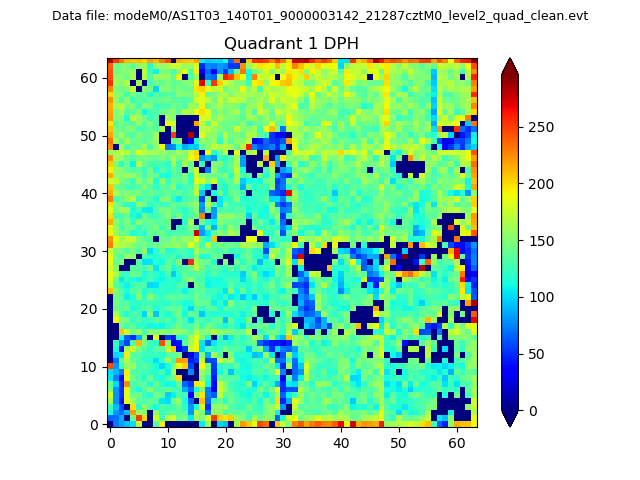

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

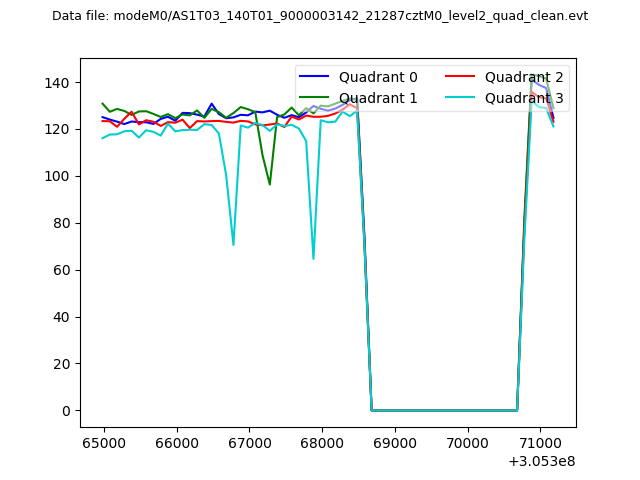

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

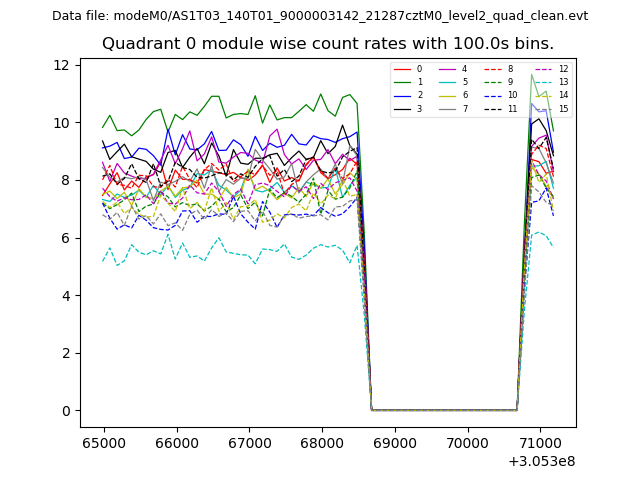

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

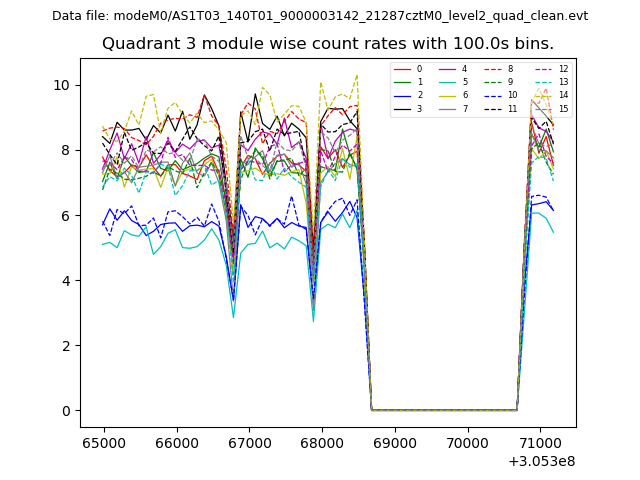

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

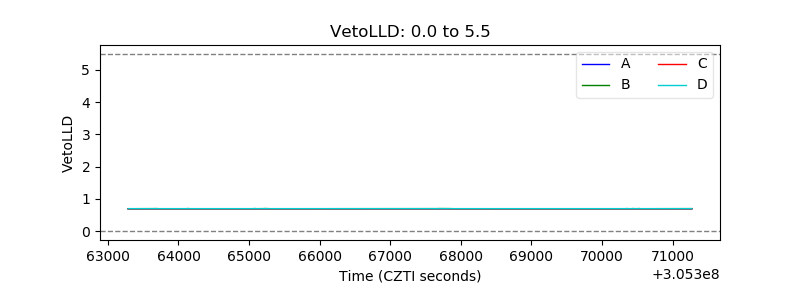

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

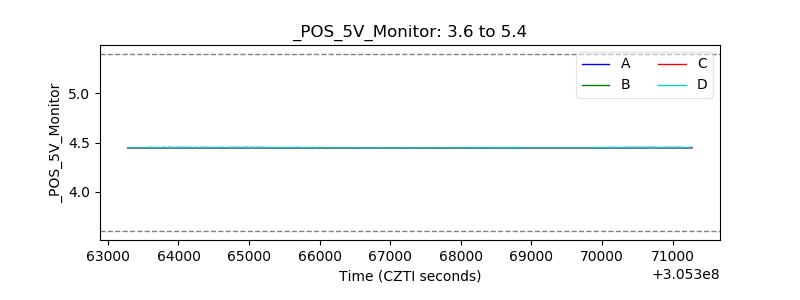

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
