| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_140T01_9000003142_21290cztM0_level2.evt | modeM0/AS1T03_140T01_9000003142_21290cztM0_level2_quad_clean.evt |
| Size (bytes) | 477,120,960 | 108,207,360 |
| Size | 455.0 MB | 103.2 MB |
| Events in quadrant A | 3,373,443 | 726,872 |
| Events in quadrant B | 3,591,670 | 727,406 |
| Events in quadrant C | 3,329,926 | 696,666 |
| Events in quadrant D | 3,724,329 | 684,050 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14302 | 2 |
| B | 0 | 14792 | 2 |
| C | 0 | 14064 | 2 |
| D | 0 | 15253 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6334 | 90 | 1.420903% |
| B | 6334 | 116 | 1.831386% |
| C | 6334 | 119 | 1.878750% |
| D | 6334 | 98 | 1.547206% |

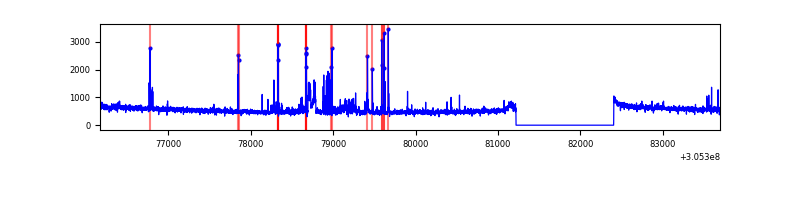

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7519 | 6334 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7519 | 6334 | 20 | 20 | 0.27% | 0.32% |  |
| C | 7519 | 6334 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7519 | 6334 | 30 | 30 | 0.40% | 0.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 22972 | 127.81 | 865 | 848 | 173.1 |
| A | 4 | 2 | 11558 | 61.87 | 865 | 848 | 173.1 |
| A | 13 | 254 | 10300 | 54.61 | 865 | 848 | 173.1 |
| B | 3 | 64 | 237292 | 1477.65 | 846 | 825 | 160.0 |
| B | 0 | 230 | 19087 | 114.11 | 846 | 825 | 160.0 |
| B | 12 | 111 | 18490 | 110.38 | 846 | 825 | 160.0 |
| C | 14 | 238 | 129898 | 690.07 | 812 | 818 | 187.1 |
| C | 3 | 233 | 29588 | 153.81 | 812 | 818 | 187.1 |
| C | 13 | 61 | 5823 | 26.76 | 812 | 818 | 187.1 |
| D | 7 | 38 | 240713 | 1198.15 | 833 | 813 | 200.2 |
| D | 1 | 52 | 94341 | 467.11 | 833 | 813 | 200.2 |
| D | 12 | 235 | 56535 | 278.3 | 833 | 813 | 200.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

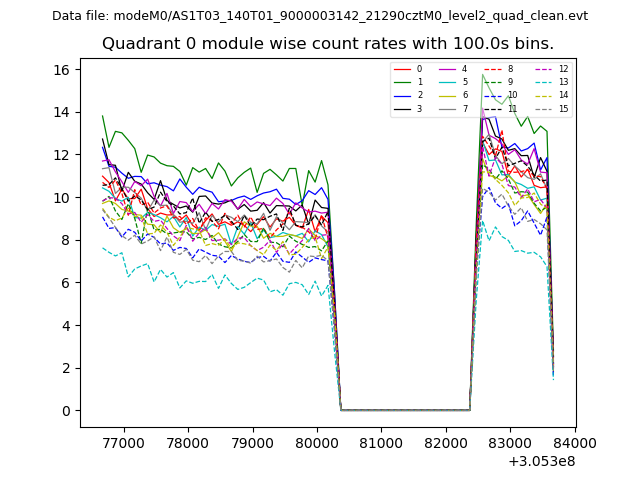

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

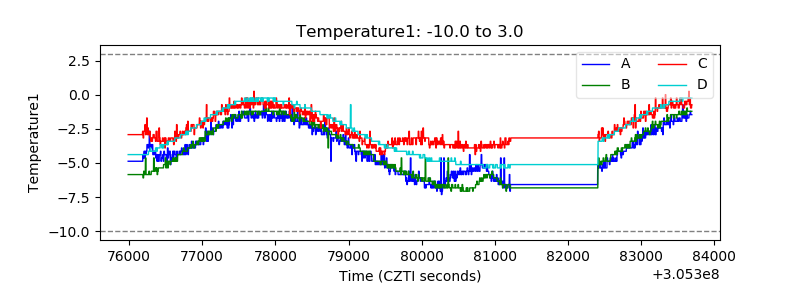

| Temperature 1 |  |

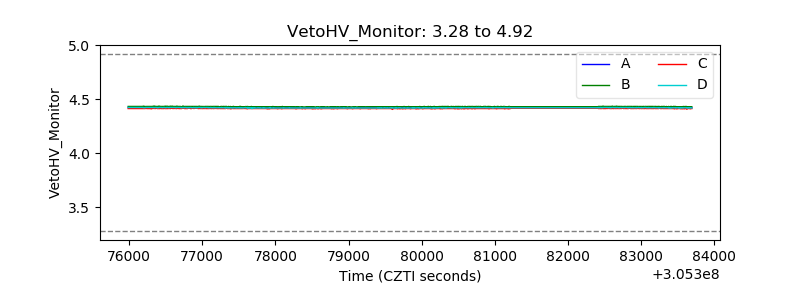

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

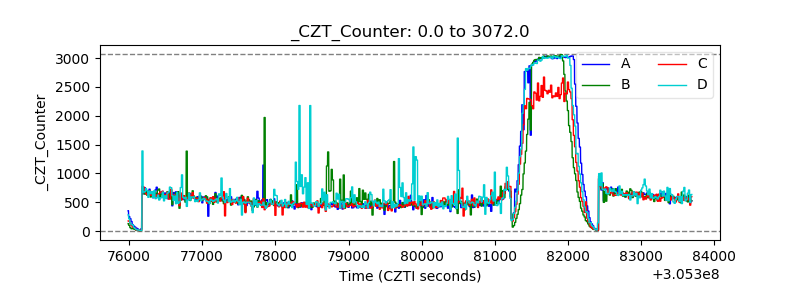

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

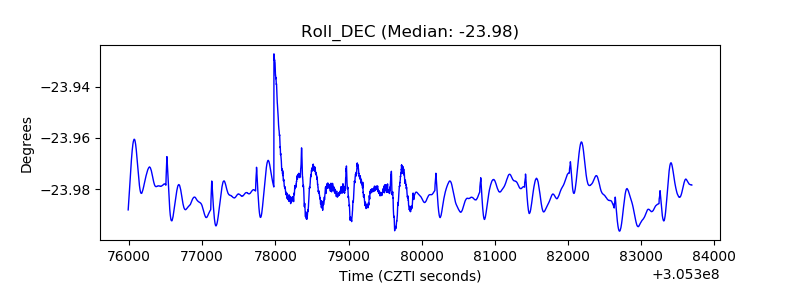

| _Roll_DEC |  |

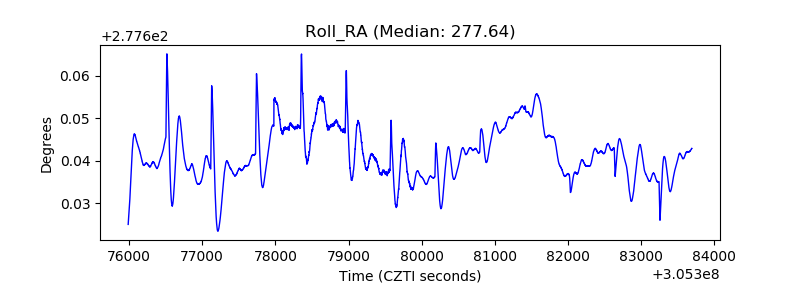

| _Roll_RA |  |

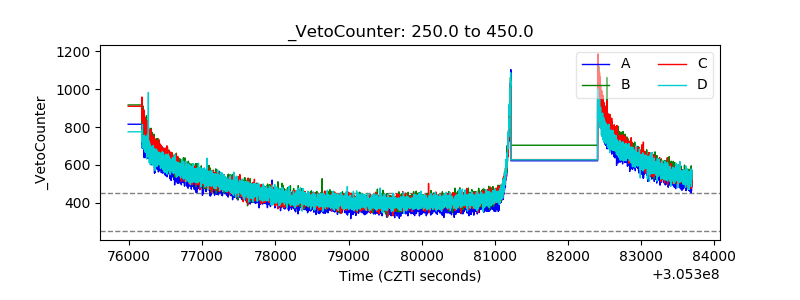

| Veto Counter |  |
