| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_140T01_9000003142_21309cztM0_level2.evt | modeM0/AS1T03_140T01_9000003142_21309cztM0_level2_quad_clean.evt |
| Size (bytes) | 510,652,800 | 95,512,320 |
| Size | 487.0 MB | 91.1 MB |
| Events in quadrant A | 4,002,331 | 615,551 |
| Events in quadrant B | 3,543,831 | 625,986 |
| Events in quadrant C | 3,259,974 | 601,037 |
| Events in quadrant D | 4,204,777 | 583,142 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16229 | 2 |
| B | 0 | 14983 | 2 |
| C | 0 | 14085 | 2 |
| D | 0 | 17014 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6697 | 58 | 0.866059% |
| B | 6697 | 64 | 0.955652% |
| C | 6697 | 91 | 1.358817% |
| D | 6697 | 124 | 1.851575% |

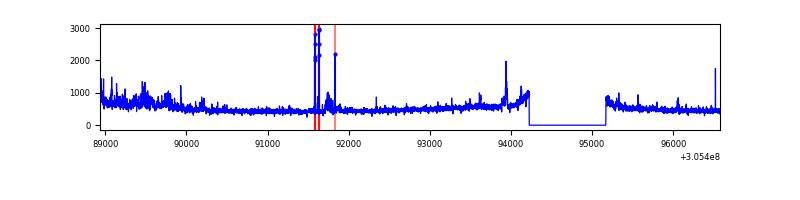

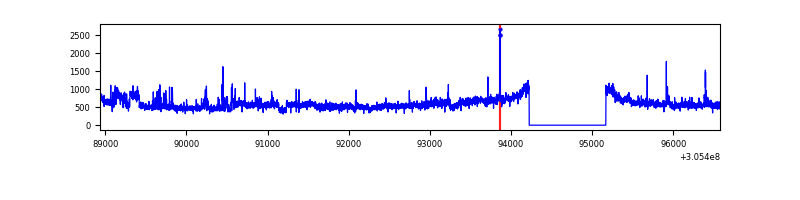

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7642 | 6697 | 3 | 3 | 0.04% | 0.04% |  |
| B | 7642 | 6697 | 9 | 9 | 0.12% | 0.13% |  |
| C | 7642 | 6698 | 5 | 5 | 0.07% | 0.07% |  |
| D | 7642 | 6698 | 76 | 76 | 0.99% | 1.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 705007 | 4209.46 | 830 | 814 | 167.3 |
| A | 9 | 143 | 38438 | 224.91 | 830 | 814 | 167.3 |
| A | 15 | 174 | 26598 | 154.13 | 830 | 814 | 167.3 |
| B | 0 | 189 | 122082 | 774.65 | 829 | 810 | 156.6 |
| B | 0 | 230 | 47683 | 299.41 | 829 | 810 | 156.6 |
| B | 0 | 190 | 34255 | 213.64 | 829 | 810 | 156.6 |
| C | 14 | 238 | 123544 | 670.25 | 788 | 794 | 183.1 |
| C | 0 | 10 | 34937 | 186.43 | 788 | 794 | 183.1 |
| C | 10 | 23 | 19179 | 100.39 | 788 | 794 | 183.1 |
| D | 13 | 174 | 392092 | 1989.72 | 799 | 777 | 196.7 |
| D | 12 | 235 | 356944 | 1811.0 | 799 | 777 | 196.7 |
| D | 12 | 233 | 127730 | 645.52 | 799 | 777 | 196.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

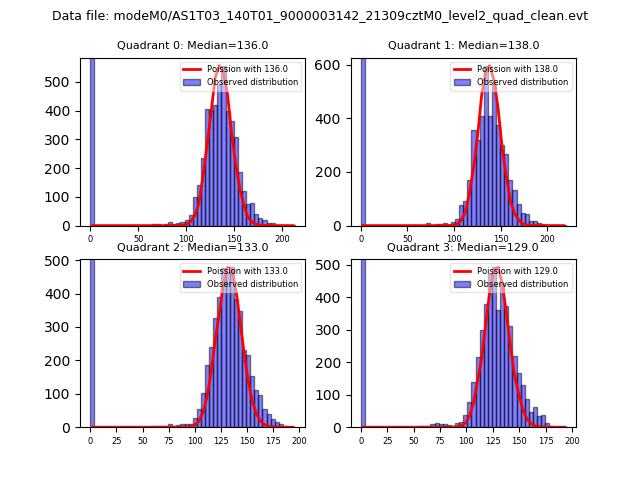

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

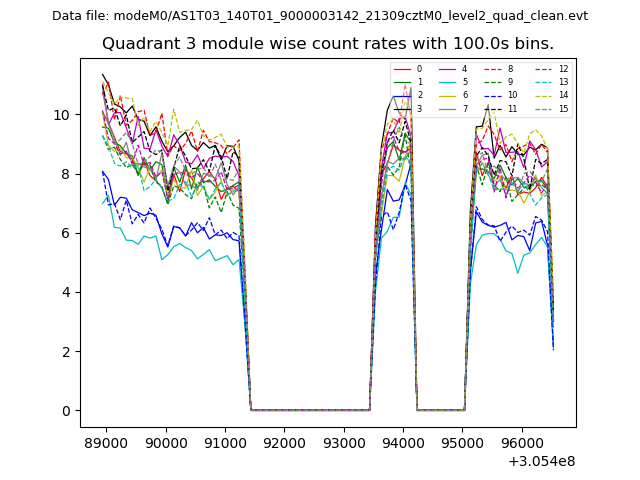

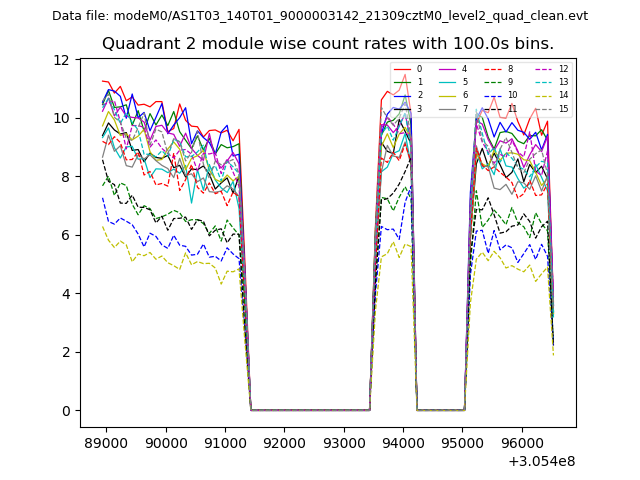

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

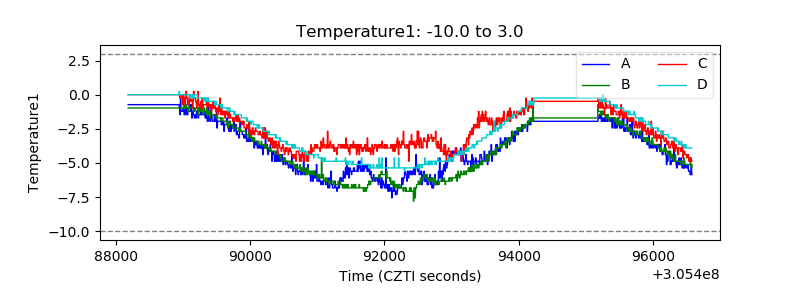

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

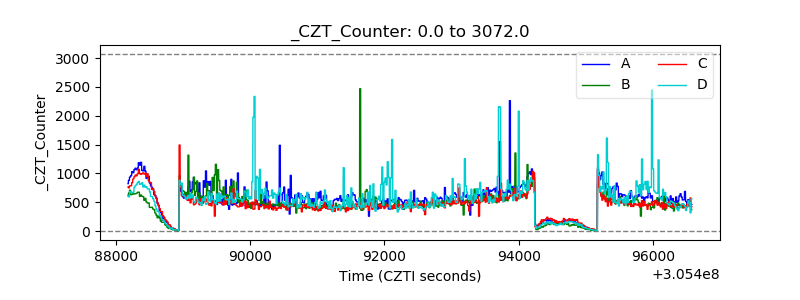

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

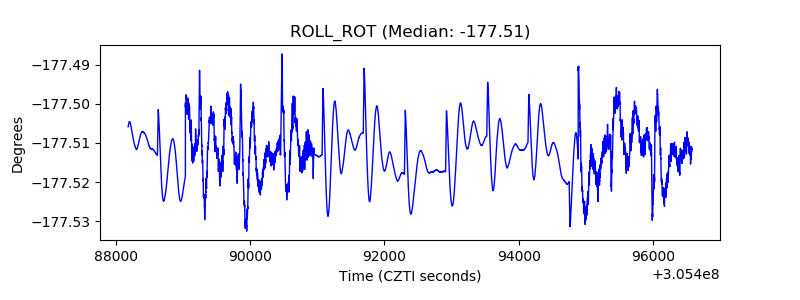

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
