| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_140T01_9000003142_21310cztM0_level2.evt | modeM0/AS1T03_140T01_9000003142_21310cztM0_level2_quad_clean.evt |
| Size (bytes) | 147,718,080 | 38,479,680 |
| Size | 140.9 MB | 36.7 MB |
| Events in quadrant A | 1,191,867 | 258,572 |
| Events in quadrant B | 960,469 | 262,616 |
| Events in quadrant C | 936,157 | 252,558 |
| Events in quadrant D | 1,246,714 | 245,811 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4841 | 1 |
| B | 0 | 4202 | 1 |
| C | 0 | 4147 | 1 |
| D | 0 | 5088 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 40 | 0 |
| B | 0 | 40 | 0 |
| C | 0 | 40 | 0 |
| D | 0 | 40 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2000 | 10 | 0.500000% |
| B | 2000 | 3 | 0.150000% |
| C | 2000 | 22 | 1.100000% |
| D | 2000 | 32 | 1.600000% |

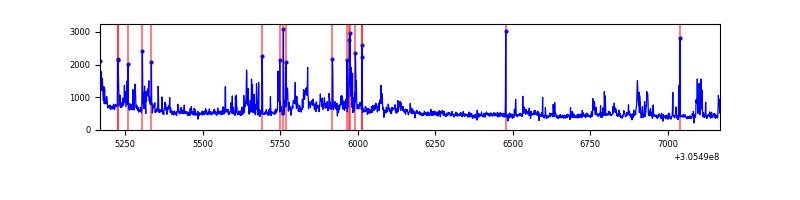

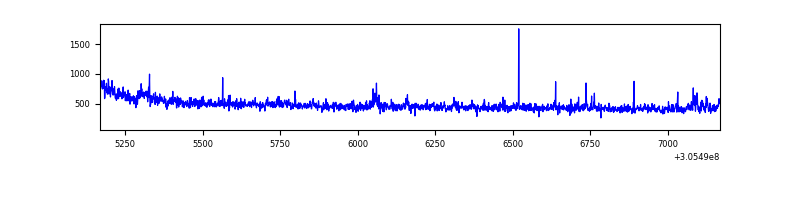

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2000 | 2000 | 0 | 0 | 0.00% | 0.00% |  |
| B | 2000 | 2000 | 0 | 0 | 0.00% | 0.00% |  |
| C | 2000 | 2000 | 4 | 4 | 0.20% | 0.20% |  |
| D | 2000 | 2000 | 19 | 19 | 0.95% | 0.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 229574 | 4636.58 | 235 | 230 | 49.5 |
| A | 9 | 143 | 27189 | 545.02 | 235 | 230 | 49.5 |
| A | 11 | 47 | 18036 | 359.98 | 235 | 230 | 49.5 |
| B | 0 | 190 | 10648 | 222.2 | 235 | 229 | 46.9 |
| B | 0 | 219 | 8769 | 182.12 | 235 | 229 | 46.9 |
| B | 4 | 216 | 6850 | 141.2 | 235 | 229 | 46.9 |
| C | 14 | 238 | 34440 | 636.75 | 222 | 223 | 53.7 |
| C | 10 | 23 | 20746 | 381.91 | 222 | 223 | 53.7 |
| C | 0 | 10 | 10017 | 182.26 | 222 | 223 | 53.7 |
| D | 12 | 235 | 134045 | 2352.58 | 225 | 219 | 56.9 |
| D | 1 | 52 | 101879 | 1787.12 | 225 | 219 | 56.9 |
| D | 12 | 233 | 89027 | 1561.19 | 225 | 219 | 56.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

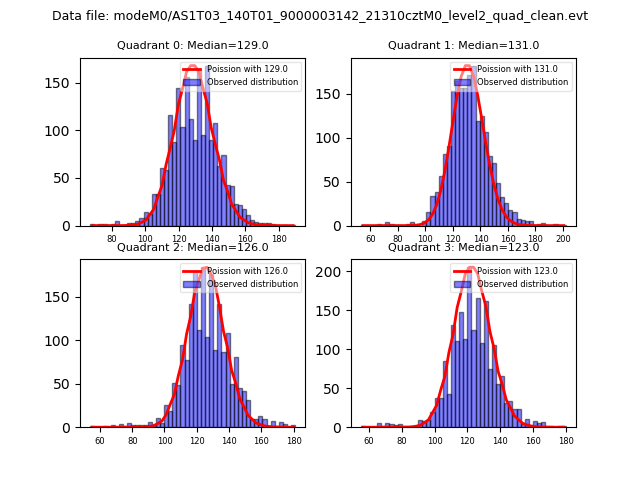

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

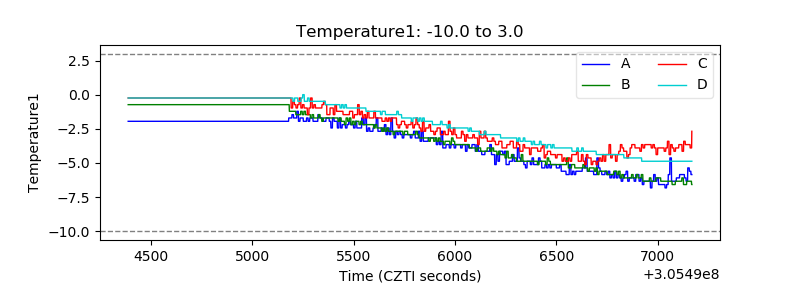

| Temperature 1 |  |

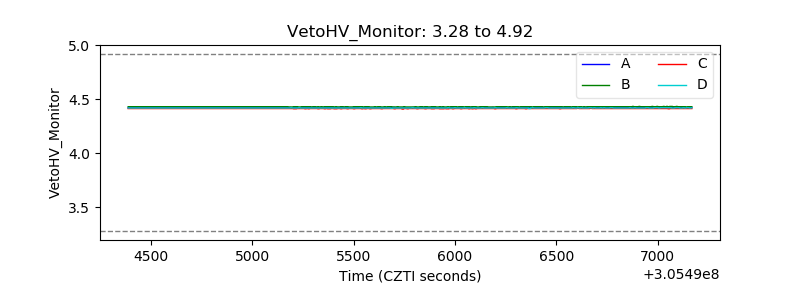

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

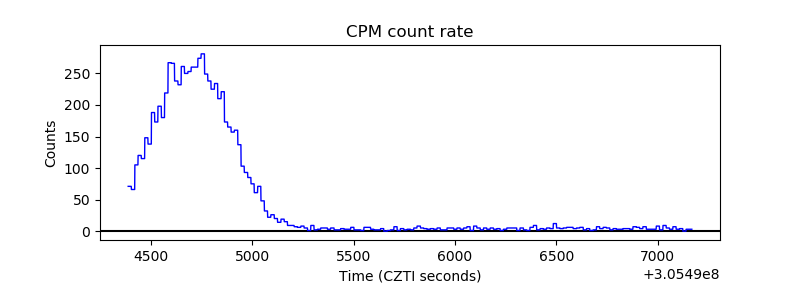

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

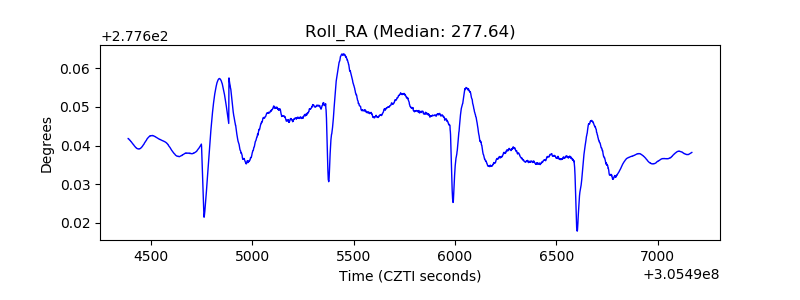

| _Roll_RA |  |

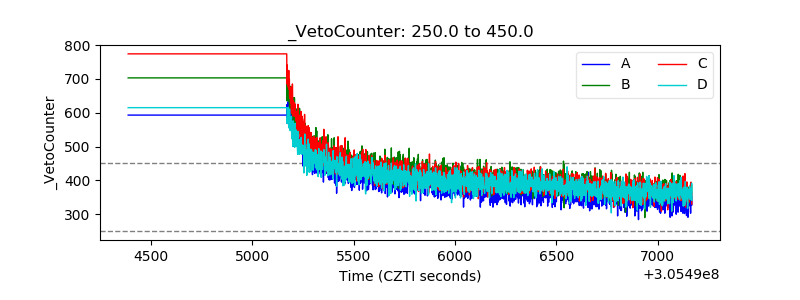

| Veto Counter |  |
