| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_037T01_9000003144_21310cztM0_level2.evt | modeM0/AS1A05_037T01_9000003144_21310cztM0_level2_quad_clean.evt |
| Size (bytes) | 357,030,720 | 54,668,160 |
| Size | 340.5 MB | 52.1 MB |
| Events in quadrant A | 2,779,329 | 333,690 |
| Events in quadrant B | 2,388,671 | 343,265 |
| Events in quadrant C | 2,276,482 | 331,202 |
| Events in quadrant D | 3,052,217 | 320,654 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11459 | 1 |
| B | 0 | 9963 | 1 |
| C | 0 | 9664 | 1 |
| D | 0 | 12143 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 94 | 0 |
| B | 0 | 94 | 0 |
| C | 0 | 94 | 0 |
| D | 0 | 94 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4645 | 52 | 1.119483% |
| B | 4645 | 53 | 1.141012% |
| C | 4645 | 42 | 0.904198% |
| D | 4644 | 91 | 1.959518% |

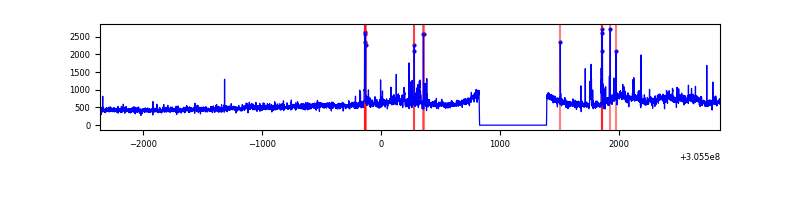

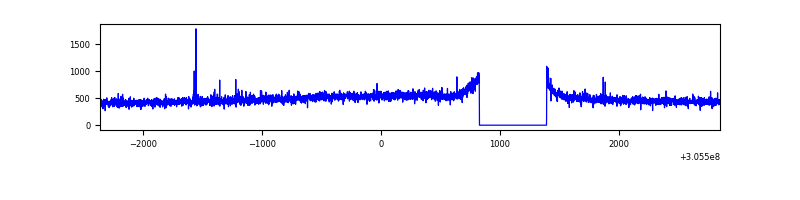

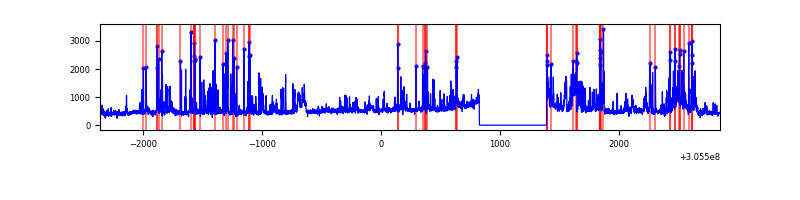

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5210 | 4646 | 14 | 14 | 0.27% | 0.30% |  |
| B | 5210 | 4646 | 7 | 7 | 0.13% | 0.15% |  |
| C | 5210 | 4646 | 0 | 0 | 0.00% | 0.00% |  |
| D | 5209 | 4645 | 64 | 64 | 1.23% | 1.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 412373 | 3453.57 | 579 | 567 | 119.2 |
| A | 9 | 143 | 115423 | 963.23 | 579 | 567 | 119.2 |
| A | 5 | 16 | 11607 | 92.59 | 579 | 567 | 119.2 |
| B | 0 | 189 | 34862 | 302.5 | 580 | 566 | 113.4 |
| B | 3 | 64 | 23286 | 200.4 | 580 | 566 | 113.4 |
| B | 0 | 190 | 21331 | 183.15 | 580 | 566 | 113.4 |
| C | 14 | 238 | 86775 | 660.24 | 555 | 560 | 130.6 |
| C | 10 | 23 | 10924 | 79.37 | 555 | 560 | 130.6 |
| C | 3 | 233 | 4442 | 29.73 | 555 | 560 | 130.6 |
| D | 1 | 52 | 513271 | 3742.51 | 560 | 544 | 137.0 |
| D | 13 | 174 | 140080 | 1018.51 | 560 | 544 | 137.0 |
| D | 12 | 235 | 95754 | 694.96 | 560 | 544 | 137.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

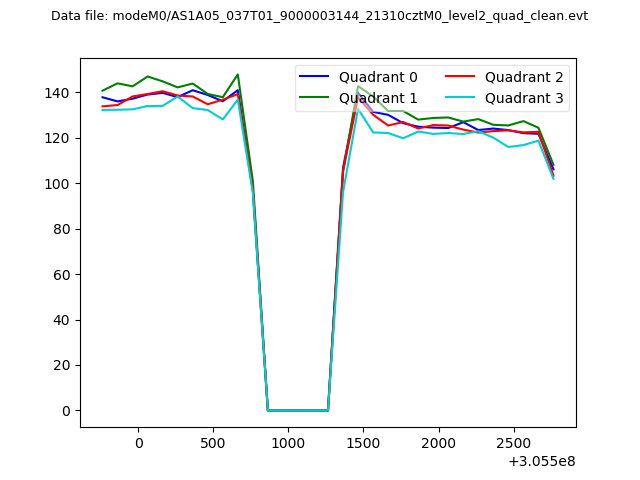

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

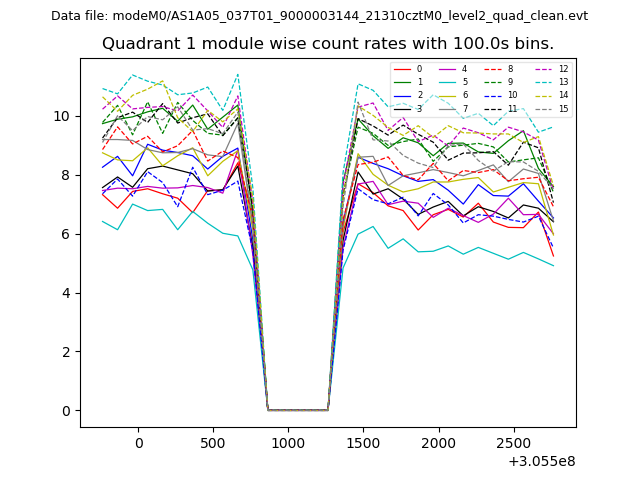

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

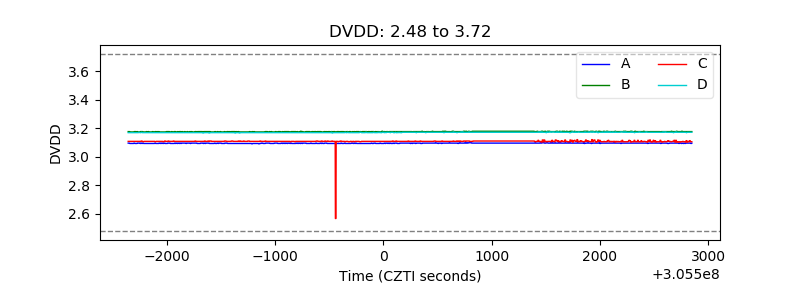

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

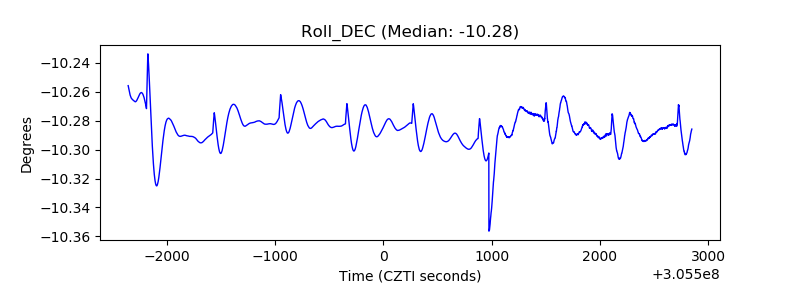

| _Roll_DEC |  |
| _Roll_RA |  |

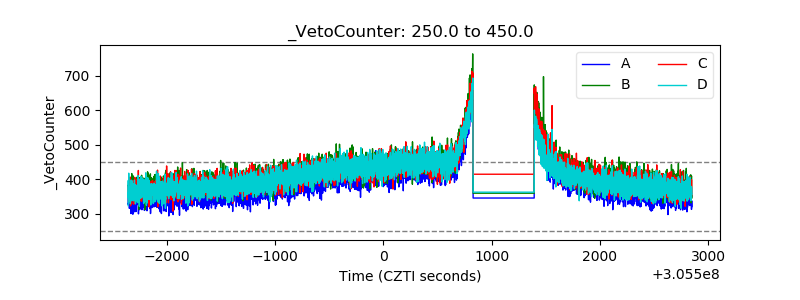

| Veto Counter |  |
