| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_037T01_9000003144_21320cztM0_level2.evt | modeM0/AS1A05_037T01_9000003144_21320cztM0_level2_quad_clean.evt |
| Size (bytes) | 494,841,600 | 106,053,120 |
| Size | 471.9 MB | 101.1 MB |
| Events in quadrant A | 3,535,492 | 709,240 |
| Events in quadrant B | 3,481,897 | 715,559 |
| Events in quadrant C | 3,381,896 | 682,506 |
| Events in quadrant D | 4,164,529 | 669,903 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14653 | 2 |
| B | 0 | 14424 | 2 |
| C | 0 | 14139 | 2 |
| D | 0 | 16570 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 25 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6232 | 113 | 1.813222% |
| B | 6232 | 116 | 1.861361% |
| C | 6232 | 148 | 2.374840% |
| D | 6232 | 225 | 3.610398% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

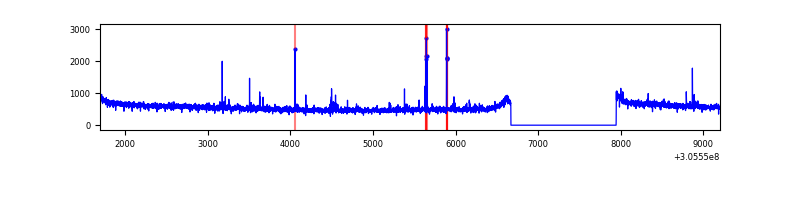

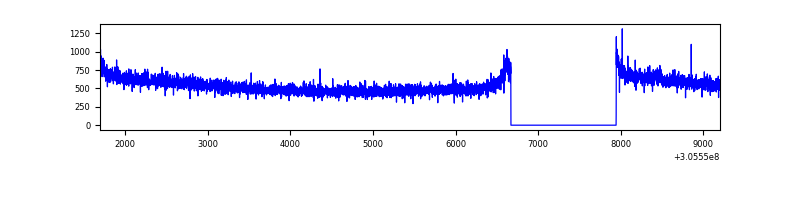

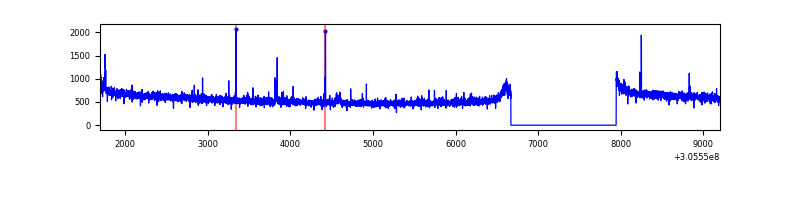

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7507 | 6232 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7507 | 6232 | 9 | 9 | 0.12% | 0.14% |  |
| C | 7507 | 6232 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7507 | 6232 | 135 | 135 | 1.80% | 2.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 47 | 30598 | 167.84 | 890 | 875 | 177.1 |
| A | 5 | 16 | 18215 | 97.92 | 890 | 875 | 177.1 |
| A | 8 | 192 | 17508 | 93.92 | 890 | 875 | 177.1 |
| B | 3 | 64 | 39052 | 235.16 | 871 | 854 | 162.4 |
| B | 0 | 230 | 26974 | 160.81 | 871 | 854 | 162.4 |
| B | 12 | 111 | 18600 | 109.25 | 871 | 854 | 162.4 |
| C | 14 | 238 | 133027 | 696.84 | 830 | 839 | 189.7 |
| C | 13 | 61 | 5754 | 25.91 | 830 | 839 | 189.7 |
| C | 8 | 222 | 5702 | 25.63 | 830 | 839 | 189.7 |
| D | 1 | 52 | 400883 | 1939.58 | 855 | 833 | 206.3 |
| D | 13 | 153 | 174350 | 841.27 | 855 | 833 | 206.3 |
| D | 12 | 235 | 144794 | 697.97 | 855 | 833 | 206.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

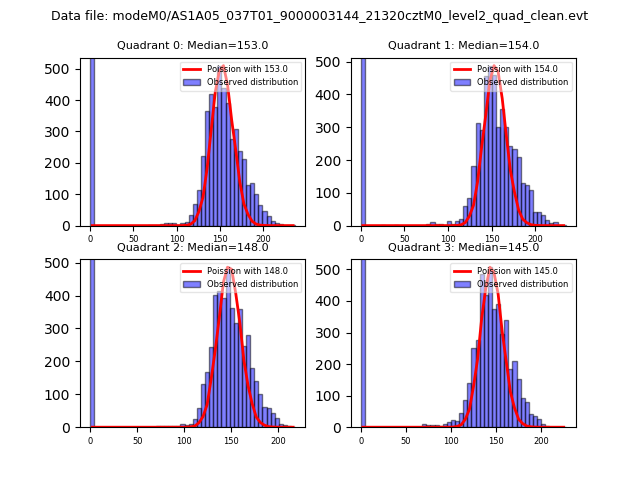

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

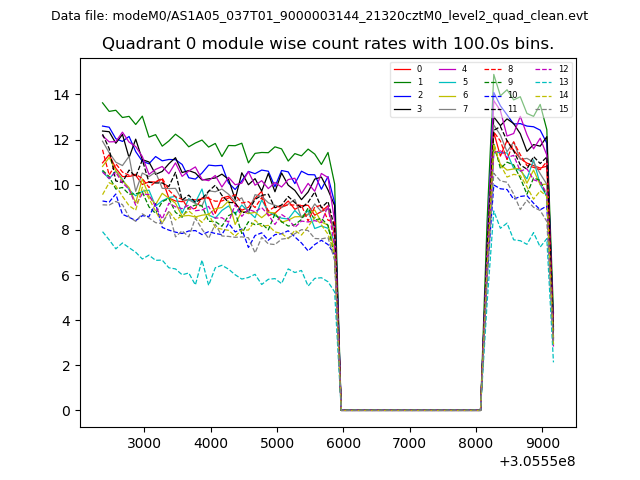

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

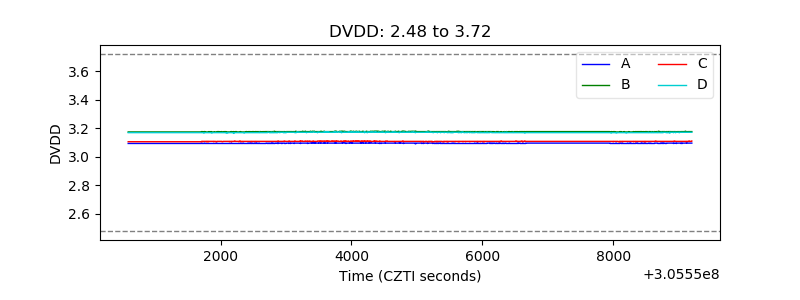

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

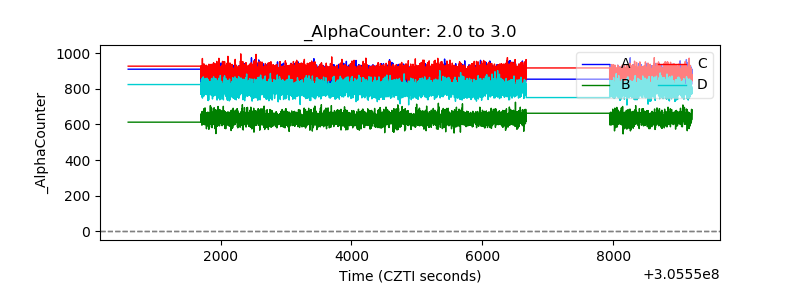

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

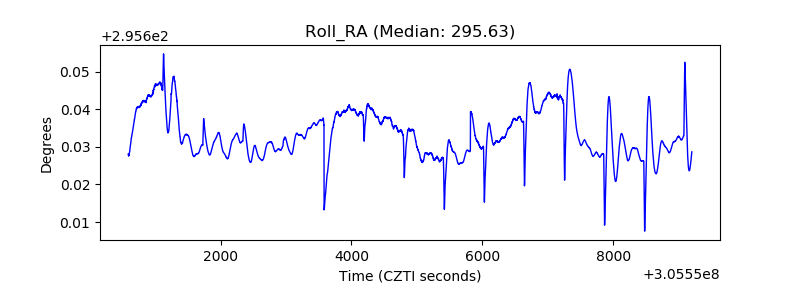

| _Roll_RA |  |
| Veto Counter |  |
