| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_037T01_9000003144_21329cztM0_level2.evt | modeM0/AS1A05_037T01_9000003144_21329cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,364,950,080 | 206,236,800 |
| Size | 1.3 GB | 196.7 MB |
| Events in quadrant A | 8,463,898 | 1,294,081 |
| Events in quadrant B | 8,390,082 | 1,318,249 |
| Events in quadrant C | 7,872,553 | 1,279,759 |
| Events in quadrant D | 15,475,513 | 1,192,999 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 35795 | 3 |
| B | 0 | 35655 | 3 |
| C | 0 | 34299 | 3 |
| D | 0 | 57638 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 344 | 0 |
| B | 0 | 344 | 0 |
| C | 0 | 344 | 0 |
| D | 0 | 344 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 16828 | 211 | 1.253863% |
| B | 16829 | 180 | 1.069582% |
| C | 16829 | 142 | 0.843782% |
| D | 16829 | 1008 | 5.989661% |

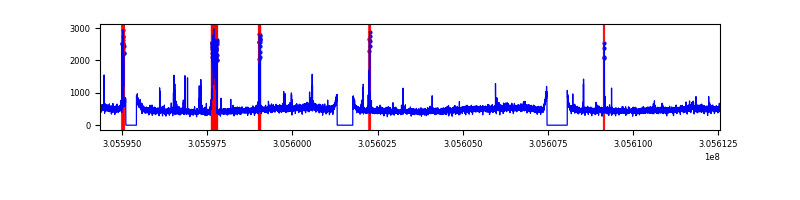

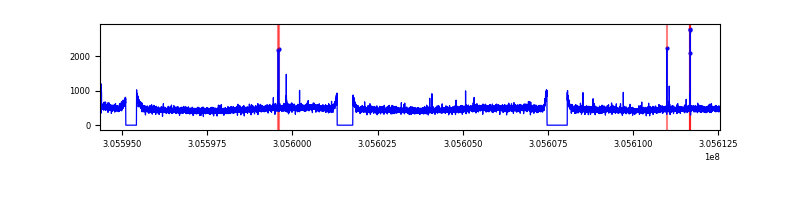

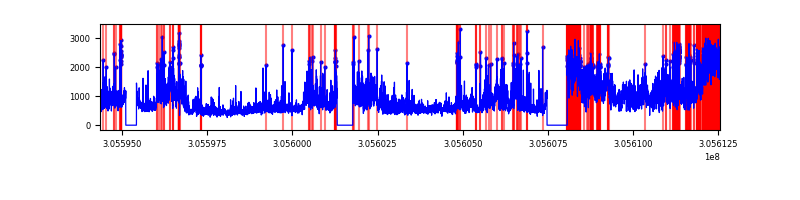

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 18198 | 16830 | 138 | 138 | 0.76% | 0.82% |  |
| B | 18199 | 16831 | 57 | 57 | 0.31% | 0.34% |  |
| C | 18199 | 16831 | 6 | 6 | 0.03% | 0.04% |  |
| D | 18199 | 16831 | 901 | 901 | 4.95% | 5.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 347484 | 850.74 | 2016 | 1973 | 406.1 |
| A | 5 | 168 | 137361 | 333.36 | 2016 | 1973 | 406.1 |
| A | 5 | 16 | 98617 | 237.96 | 2016 | 1973 | 406.1 |
| B | 3 | 64 | 211336 | 543.18 | 2015 | 1964 | 385.5 |
| B | 0 | 230 | 91761 | 232.96 | 2015 | 1964 | 385.5 |
| B | 0 | 190 | 74560 | 188.34 | 2015 | 1964 | 385.5 |
| C | 14 | 238 | 301875 | 663.01 | 1934 | 1945 | 452.4 |
| C | 10 | 23 | 33303 | 69.32 | 1934 | 1945 | 452.4 |
| C | 13 | 61 | 13427 | 25.38 | 1934 | 1945 | 452.4 |
| D | 13 | 174 | 5743483 | 12310.71 | 1928 | 1874 | 466.4 |
| D | 12 | 235 | 900470 | 1926.7 | 1928 | 1874 | 466.4 |
| D | 1 | 20 | 501131 | 1070.47 | 1928 | 1874 | 466.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

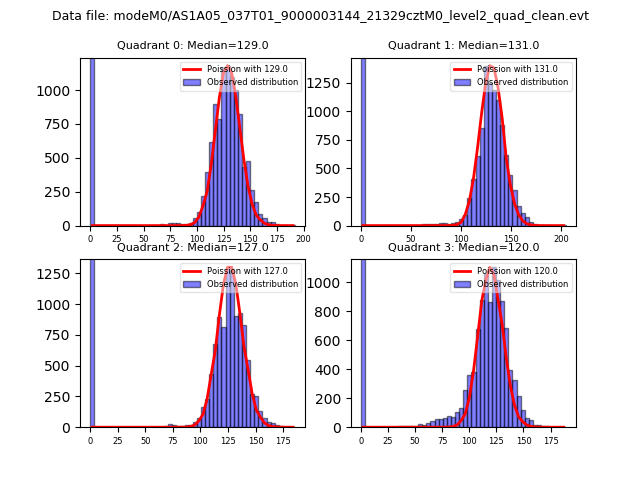

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

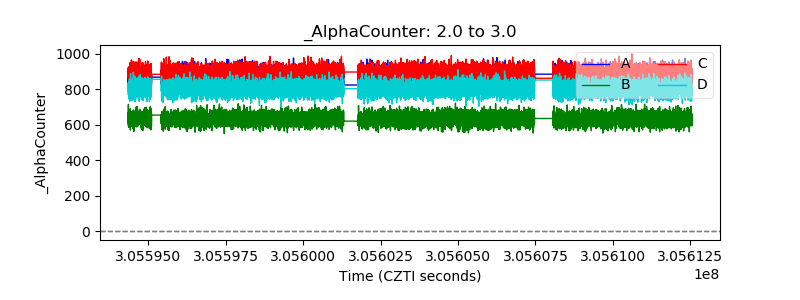

| Alpha Counter |  |

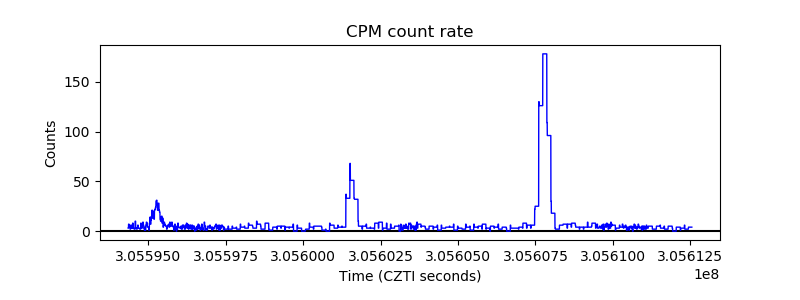

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
