| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_108T01_9000003146_21330cztM0_level2.evt | modeM0/AS1A05_108T01_9000003146_21330cztM0_level2_quad_clean.evt |
| Size (bytes) | 599,633,280 | 83,655,360 |
| Size | 571.9 MB | 79.8 MB |
| Events in quadrant A | 3,351,435 | 527,346 |
| Events in quadrant B | 3,439,736 | 534,961 |
| Events in quadrant C | 3,225,761 | 516,673 |
| Events in quadrant D | 7,689,565 | 486,797 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14171 | 2 |
| B | 0 | 14382 | 2 |
| C | 0 | 13763 | 2 |
| D | 0 | 27635 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6705 | 73 | 1.088740% |
| B | 6706 | 98 | 1.461378% |
| C | 6706 | 101 | 1.506114% |
| D | 6706 | 524 | 7.813898% |

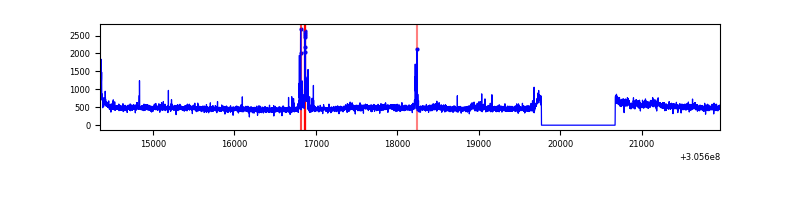

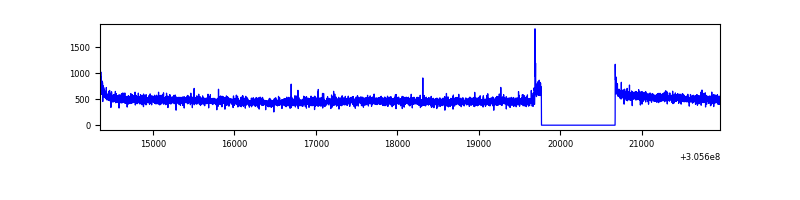

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7610 | 6705 | 9 | 9 | 0.12% | 0.13% |  |
| B | 7611 | 6706 | 29 | 29 | 0.38% | 0.43% |  |
| C | 7611 | 6706 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7611 | 6706 | 362 | 362 | 4.76% | 5.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 76037 | 458.79 | 813 | 795 | 164.0 |
| A | 5 | 168 | 67137 | 404.52 | 813 | 795 | 164.0 |
| A | 15 | 236 | 31773 | 188.89 | 813 | 795 | 164.0 |
| B | 3 | 64 | 102237 | 662.48 | 810 | 789 | 153.1 |
| B | 6 | 36 | 65191 | 420.56 | 810 | 789 | 153.1 |
| B | 0 | 230 | 49520 | 318.22 | 810 | 789 | 153.1 |
| C | 14 | 238 | 124056 | 668.88 | 791 | 796 | 184.3 |
| C | 7 | 220 | 11636 | 58.82 | 791 | 796 | 184.3 |
| C | 13 | 61 | 5552 | 25.81 | 791 | 796 | 184.3 |
| D | 13 | 174 | 4334035 | 22779.86 | 783 | 759 | 190.2 |
| D | 1 | 52 | 137444 | 718.55 | 783 | 759 | 190.2 |
| D | 13 | 153 | 117556 | 614.0 | 783 | 759 | 190.2 |

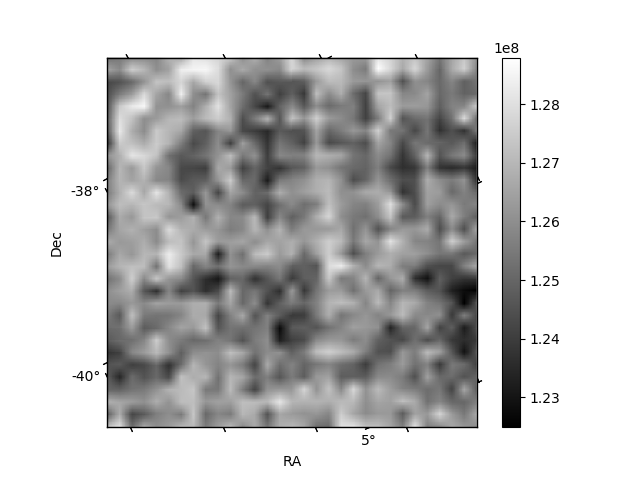

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

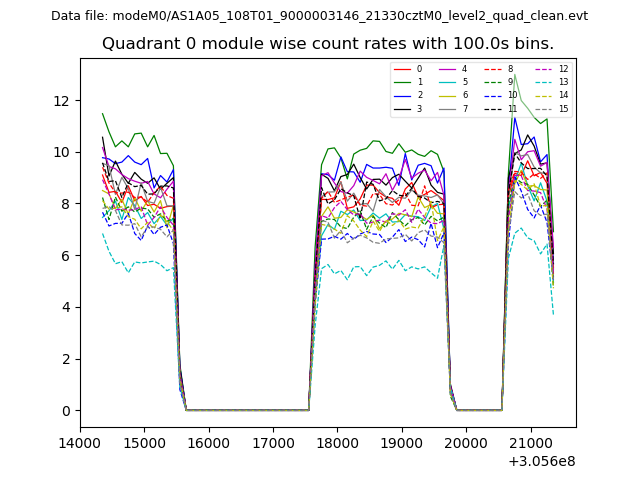

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

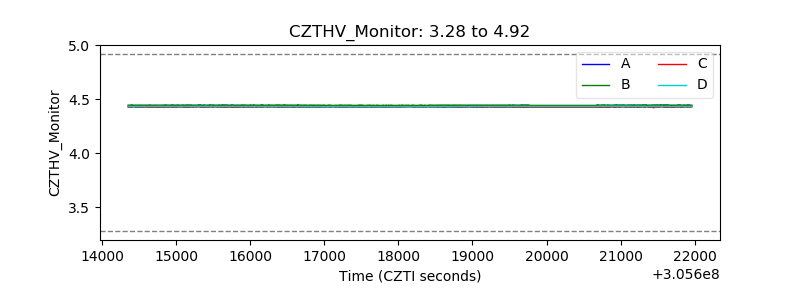

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

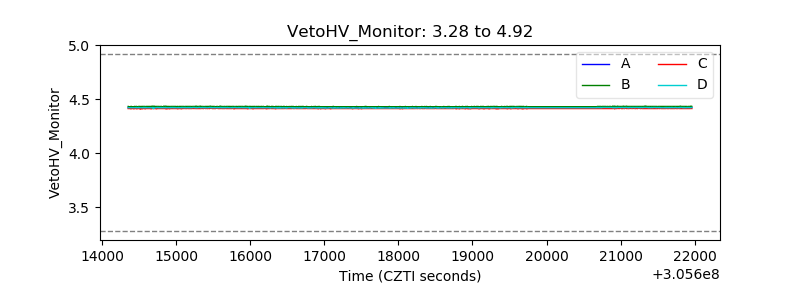

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

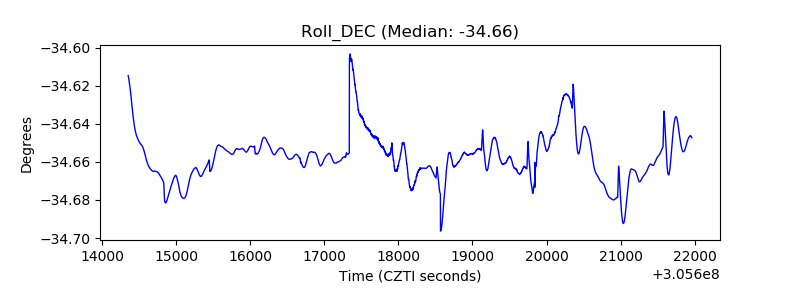

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

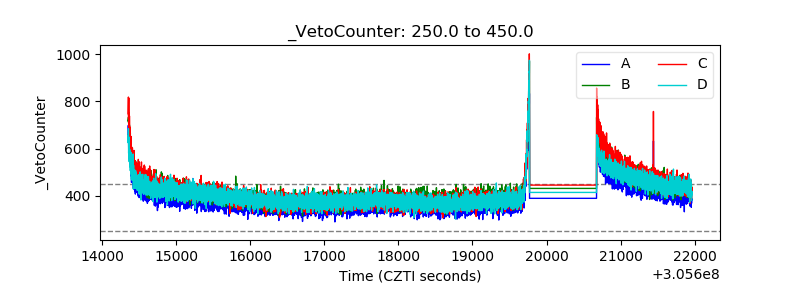

| Veto Counter |  |
