| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_108T01_9000003146_21338cztM0_level2.evt | modeM0/AS1A05_108T01_9000003146_21338cztM0_level2_quad_clean.evt |
| Size (bytes) | 463,377,600 | 106,430,400 |
| Size | 441.9 MB | 101.5 MB |
| Events in quadrant A | 3,509,355 | 699,764 |
| Events in quadrant B | 3,258,954 | 716,533 |
| Events in quadrant C | 3,103,386 | 681,728 |
| Events in quadrant D | 3,714,648 | 666,518 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14599 | 1 |
| B | 0 | 13887 | 1 |
| C | 0 | 13478 | 1 |
| D | 0 | 15618 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6576 | 58 | 0.881995% |
| B | 6577 | 43 | 0.653794% |
| C | 6577 | 37 | 0.562567% |
| D | 6577 | 252 | 3.831534% |

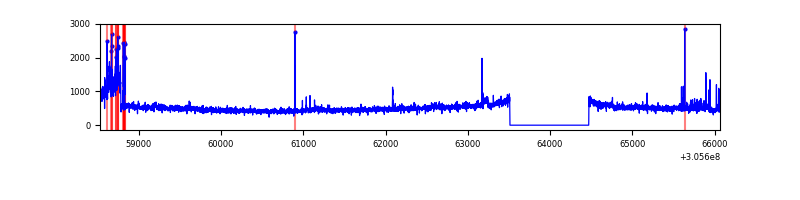

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7536 | 6577 | 19 | 19 | 0.25% | 0.29% |  |
| B | 7537 | 6578 | 13 | 13 | 0.17% | 0.20% |  |
| C | 7537 | 6578 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7537 | 6578 | 206 | 206 | 2.73% | 3.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 195491 | 1216.31 | 799 | 784 | 160.1 |
| A | 5 | 168 | 176616 | 1098.4 | 799 | 784 | 160.1 |
| A | 12 | 96 | 22586 | 136.19 | 799 | 784 | 160.1 |
| B | 0 | 230 | 67661 | 438.33 | 801 | 781 | 152.6 |
| B | 0 | 197 | 34404 | 220.36 | 801 | 781 | 152.6 |
| B | 12 | 111 | 18373 | 115.3 | 801 | 781 | 152.6 |
| C | 14 | 238 | 119877 | 661.67 | 765 | 771 | 180.0 |
| C | 13 | 61 | 5261 | 24.94 | 765 | 771 | 180.0 |
| C | 7 | 247 | 2361 | 8.83 | 765 | 771 | 180.0 |
| D | 13 | 174 | 381175 | 2068.97 | 758 | 734 | 183.9 |
| D | 1 | 52 | 360693 | 1957.59 | 758 | 734 | 183.9 |
| D | 13 | 153 | 30008 | 159.2 | 758 | 734 | 183.9 |

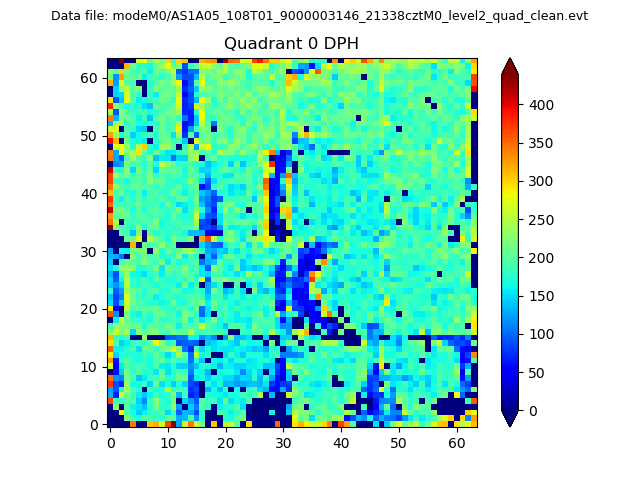

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

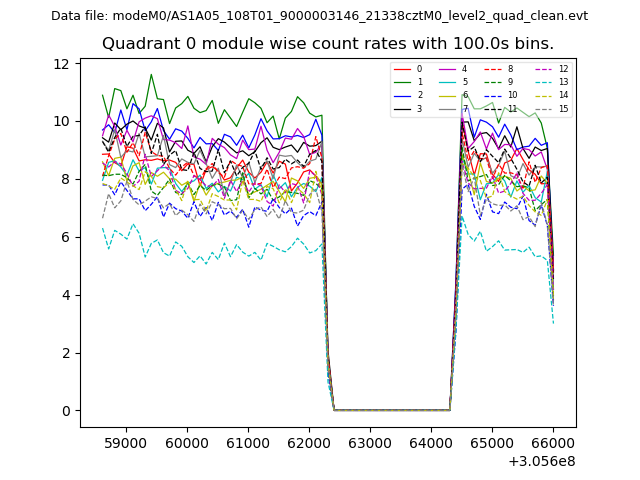

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

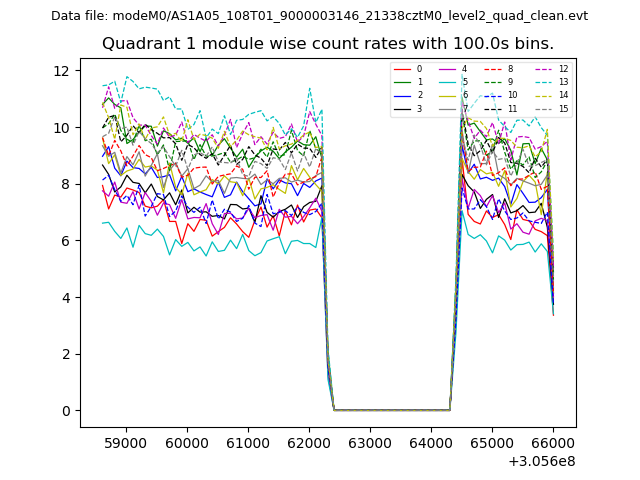

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

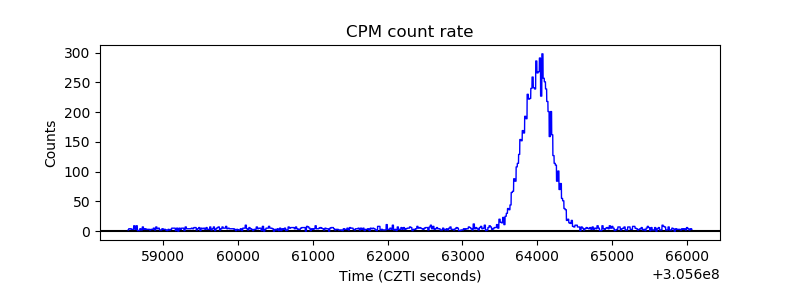

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

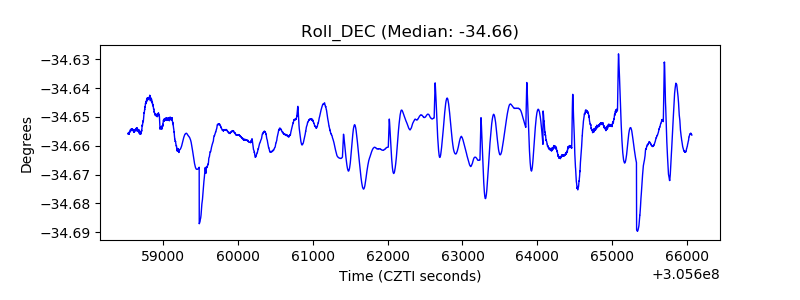

| _Roll_DEC |  |

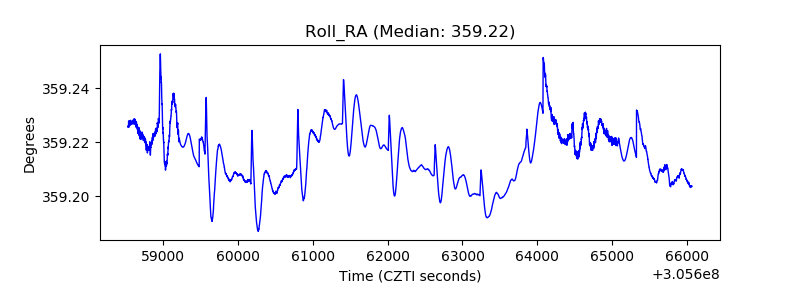

| _Roll_RA |  |

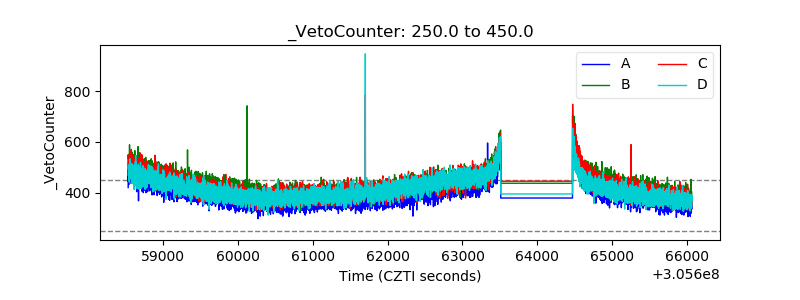

| Veto Counter |  |
