| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_108T01_9000003146_21340cztM0_level2.evt | modeM0/AS1A05_108T01_9000003146_21340cztM0_level2_quad_clean.evt |
| Size (bytes) | 558,714,240 | 109,042,560 |
| Size | 532.8 MB | 104.0 MB |
| Events in quadrant A | 4,179,644 | 693,814 |
| Events in quadrant B | 3,968,561 | 711,000 |
| Events in quadrant C | 3,785,786 | 678,080 |
| Events in quadrant D | 4,444,774 | 664,234 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17460 | 2 |
| B | 0 | 17091 | 2 |
| C | 0 | 16531 | 2 |
| D | 0 | 19020 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 166 | 0 |
| B | 0 | 166 | 0 |
| C | 0 | 166 | 0 |
| D | 0 | 166 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7981 | 37 | 0.463601% |
| B | 7981 | 123 | 1.541160% |
| C | 7980 | 70 | 0.877193% |
| D | 7980 | 54 | 0.676692% |

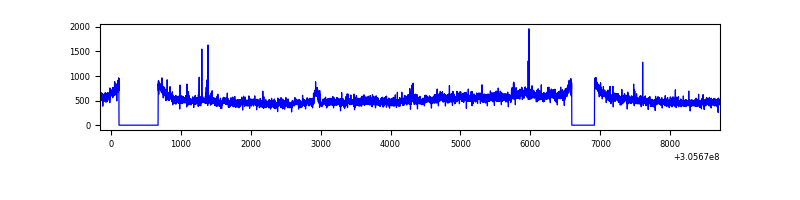

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8866 | 7983 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8866 | 7983 | 34 | 34 | 0.38% | 0.43% |  |
| C | 8865 | 7982 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8865 | 7982 | 30 | 30 | 0.34% | 0.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 168 | 423583 | 2161.19 | 965 | 946 | 195.6 |
| A | 5 | 16 | 18041 | 87.42 | 965 | 946 | 195.6 |
| A | 13 | 254 | 11404 | 53.48 | 965 | 946 | 195.6 |
| B | 3 | 64 | 118477 | 632.01 | 965 | 937 | 186.0 |
| B | 0 | 197 | 34611 | 181.06 | 965 | 937 | 186.0 |
| B | 12 | 111 | 23035 | 118.82 | 965 | 937 | 186.0 |
| C | 14 | 238 | 144545 | 658.18 | 926 | 933 | 218.2 |
| C | 3 | 233 | 17663 | 76.67 | 926 | 933 | 218.2 |
| C | 7 | 247 | 8614 | 35.2 | 926 | 933 | 218.2 |
| D | 1 | 52 | 479600 | 2098.84 | 932 | 903 | 228.1 |
| D | 12 | 235 | 161013 | 702.0 | 932 | 903 | 228.1 |
| D | 13 | 174 | 153747 | 670.14 | 932 | 903 | 228.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

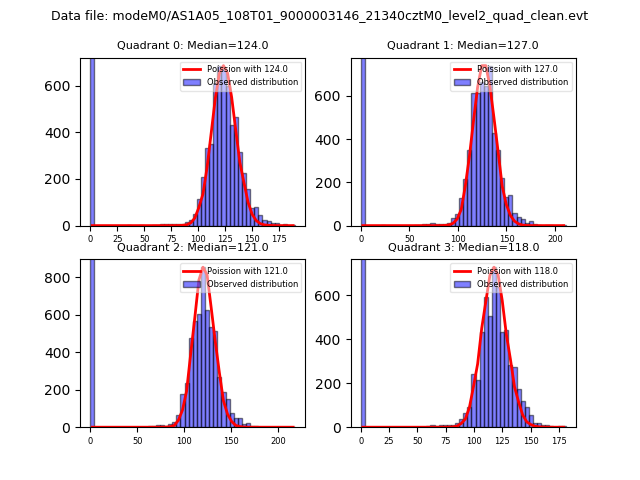

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

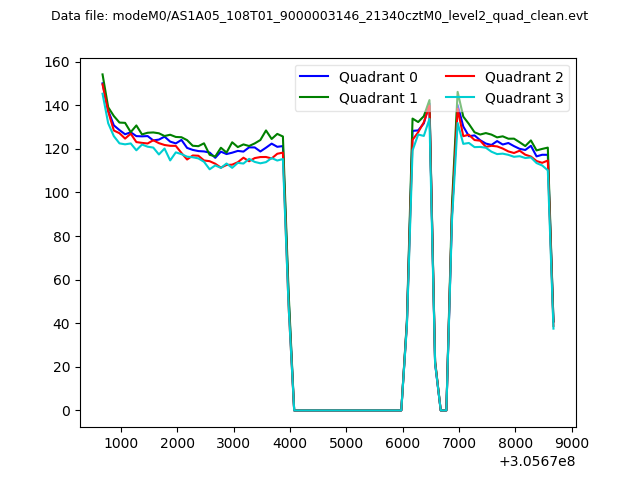

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

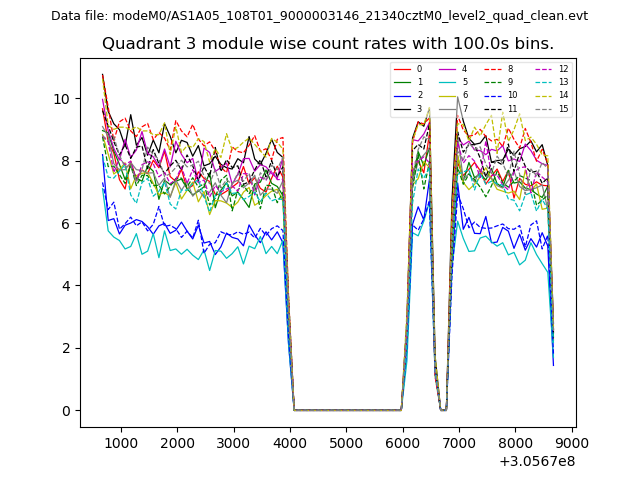

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

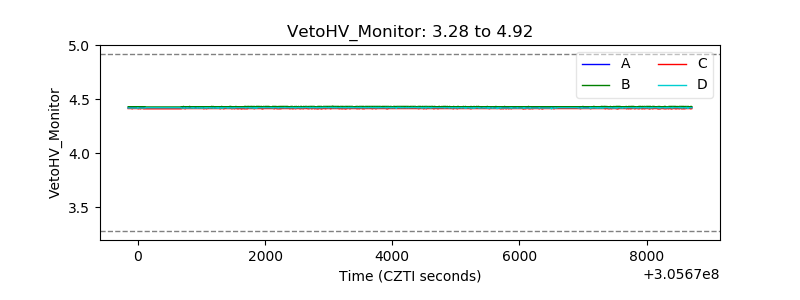

| Veto HV Monitor |  |
| Veto LLD |  |

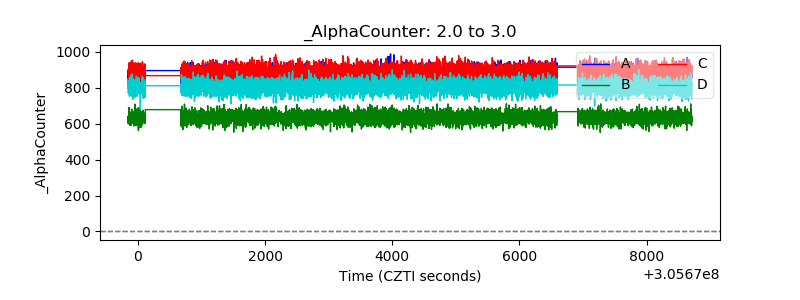

| Alpha Counter |  |

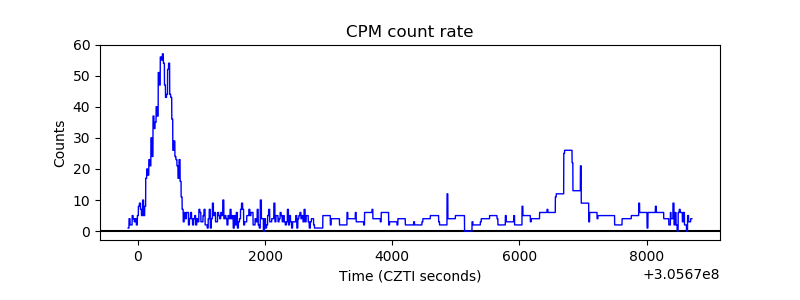

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

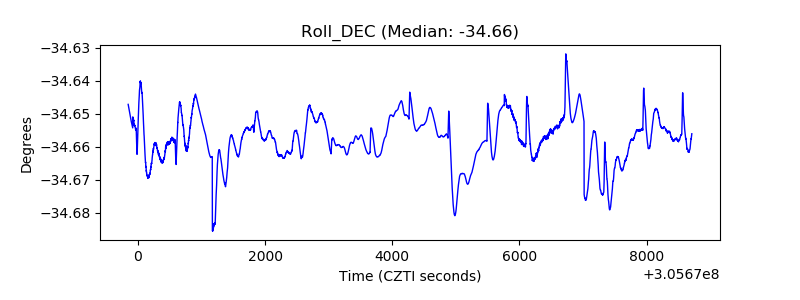

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
