| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_226T05_9000003148_21344cztM0_level2.evt | modeM0/AS1A05_226T05_9000003148_21344cztM0_level2_quad_clean.evt |
| Size (bytes) | 460,391,040 | 122,391,360 |
| Size | 439.1 MB | 116.7 MB |
| Events in quadrant A | 3,250,869 | 816,079 |
| Events in quadrant B | 3,175,281 | 837,775 |
| Events in quadrant C | 3,003,730 | 808,483 |
| Events in quadrant D | 4,064,869 | 784,673 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13812 | 1 |
| B | 0 | 13810 | 1 |
| C | 0 | 13377 | 1 |
| D | 0 | 16792 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6596 | 32 | 0.485143% |
| B | 6596 | 33 | 0.500303% |
| C | 6596 | 31 | 0.469982% |
| D | 6595 | 204 | 3.093252% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

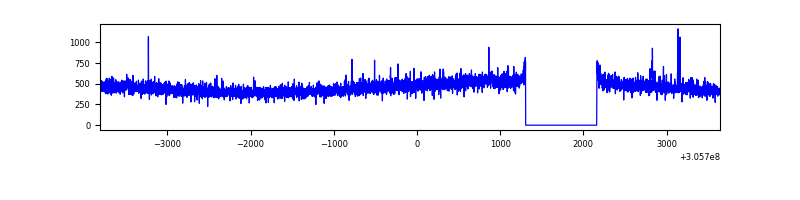

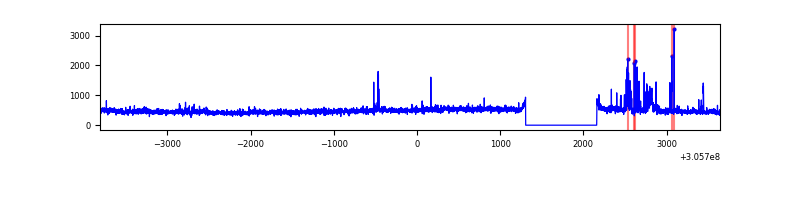

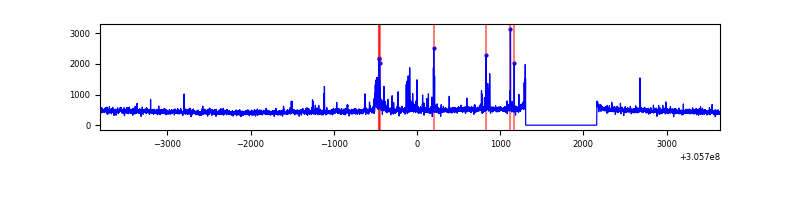

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7451 | 6597 | 5 | 5 | 0.07% | 0.08% |  |
| B | 7451 | 6596 | 7 | 7 | 0.09% | 0.11% |  |
| C | 7451 | 6597 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7450 | 6596 | 163 | 163 | 2.19% | 2.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 168 | 152481 | 983.98 | 763 | 746 | 154.2 |
| A | 9 | 143 | 112337 | 723.65 | 763 | 746 | 154.2 |
| A | 5 | 16 | 22579 | 141.58 | 763 | 746 | 154.2 |
| B | 0 | 190 | 64558 | 442.95 | 764 | 744 | 144.1 |
| B | 0 | 189 | 52855 | 361.72 | 764 | 744 | 144.1 |
| B | 3 | 64 | 29745 | 201.3 | 764 | 744 | 144.1 |
| C | 14 | 238 | 117510 | 681.48 | 733 | 737 | 171.4 |
| C | 7 | 247 | 13357 | 73.65 | 733 | 737 | 171.4 |
| C | 10 | 23 | 9897 | 53.46 | 733 | 737 | 171.4 |
| D | 1 | 52 | 707389 | 4020.29 | 733 | 711 | 175.8 |
| D | 13 | 153 | 199996 | 1133.73 | 733 | 711 | 175.8 |
| D | 12 | 235 | 164515 | 931.88 | 733 | 711 | 175.8 |

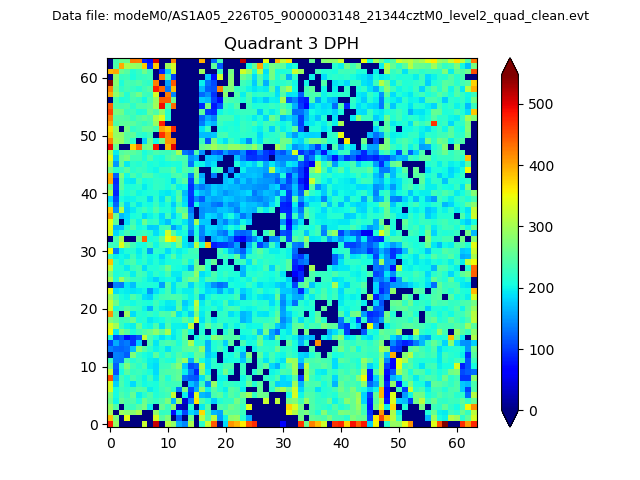

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

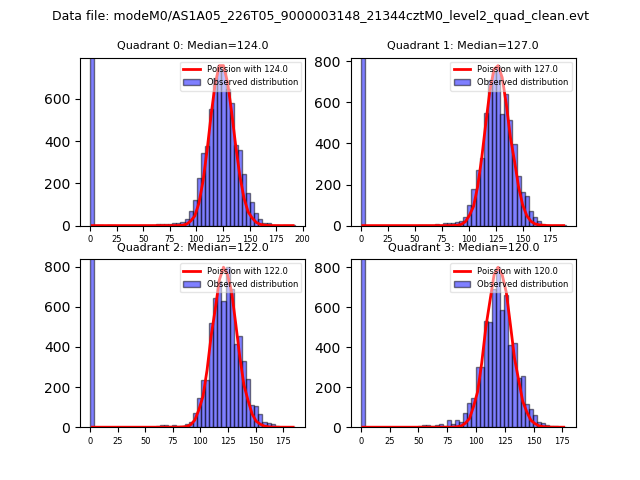

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

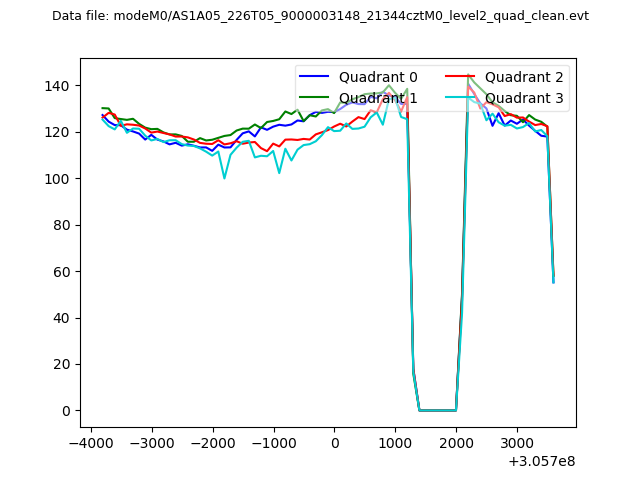

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

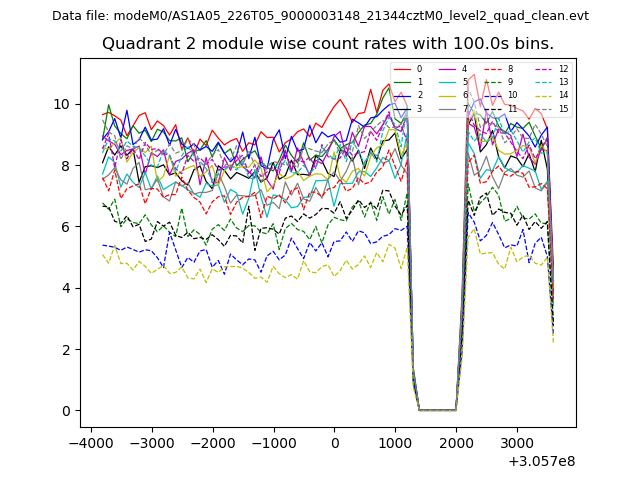

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

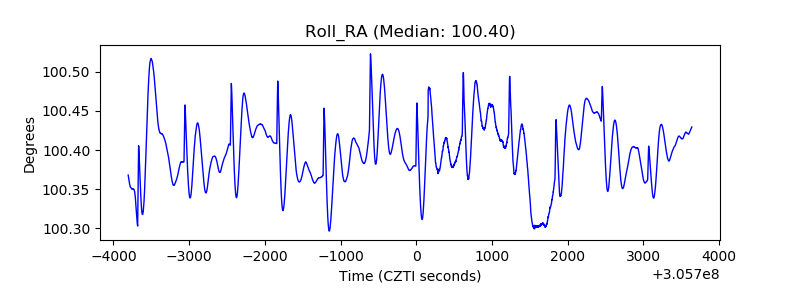

| _Roll_RA |  |
| Veto Counter |  |
