| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C04_001T01_9000003156_21376cztM0_level2.evt | modeM0/AS1C04_001T01_9000003156_21376cztM0_level2_quad_clean.evt |
| Size (bytes) | 532,411,200 | 112,665,600 |
| Size | 507.7 MB | 107.4 MB |
| Events in quadrant A | 3,100,808 | 782,104 |
| Events in quadrant B | 3,177,739 | 785,519 |
| Events in quadrant C | 3,593,216 | 730,171 |
| Events in quadrant D | 5,828,775 | 678,454 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13069 | 1 |
| B | 0 | 13293 | 1 |
| C | 0 | 14808 | 1 |
| D | 0 | 21412 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6237 | 29 | 0.464967% |
| B | 6237 | 52 | 0.833734% |
| C | 6237 | 165 | 2.645503% |
| D | 6238 | 885 | 14.187239% |

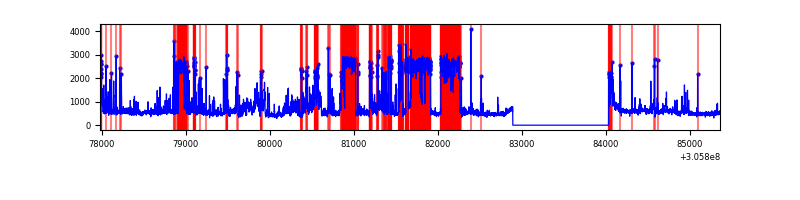

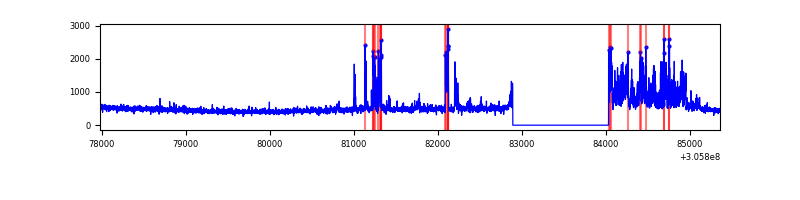

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7377 | 6237 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7377 | 6237 | 20 | 20 | 0.27% | 0.32% |  |
| C | 7377 | 6237 | 27 | 27 | 0.37% | 0.43% |  |
| D | 7378 | 6238 | 868 | 868 | 11.76% | 13.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 168 | 96713 | 618.42 | 774 | 759 | 155.2 |
| A | 15 | 174 | 13524 | 82.27 | 774 | 759 | 155.2 |
| A | 13 | 254 | 7950 | 46.35 | 774 | 759 | 155.2 |
| B | 0 | 189 | 73458 | 506.71 | 762 | 743 | 143.5 |
| B | 3 | 64 | 40495 | 277.01 | 762 | 743 | 143.5 |
| B | 0 | 230 | 36925 | 252.13 | 762 | 743 | 143.5 |
| C | 3 | 233 | 671828 | 4007.5 | 719 | 721 | 167.5 |
| C | 14 | 238 | 114882 | 681.71 | 719 | 721 | 167.5 |
| C | 13 | 61 | 5033 | 25.75 | 719 | 721 | 167.5 |
| D | 1 | 52 | 2844420 | 16899.51 | 700 | 680 | 168.3 |
| D | 7 | 238 | 100265 | 591.8 | 700 | 680 | 168.3 |
| D | 13 | 153 | 83917 | 494.65 | 700 | 680 | 168.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

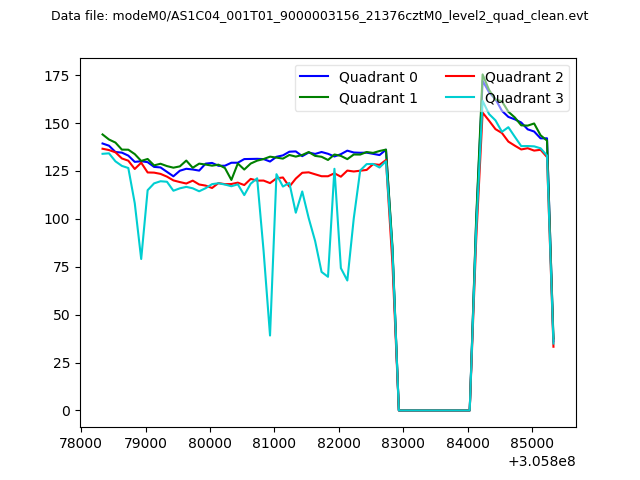

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

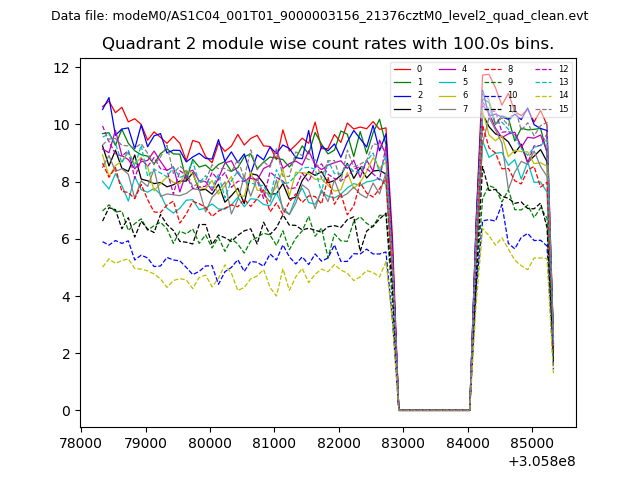

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

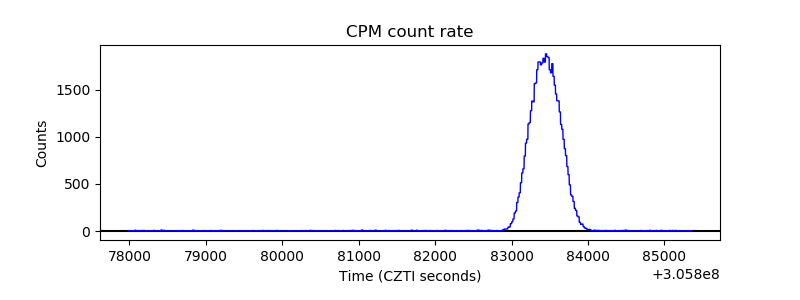

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

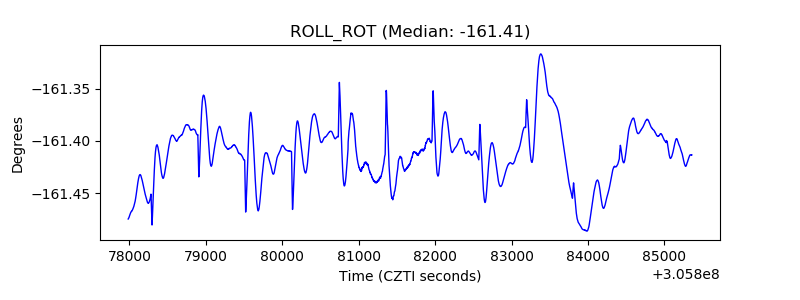

| _ROLL_ROT |  |
| _Roll_DEC |  |

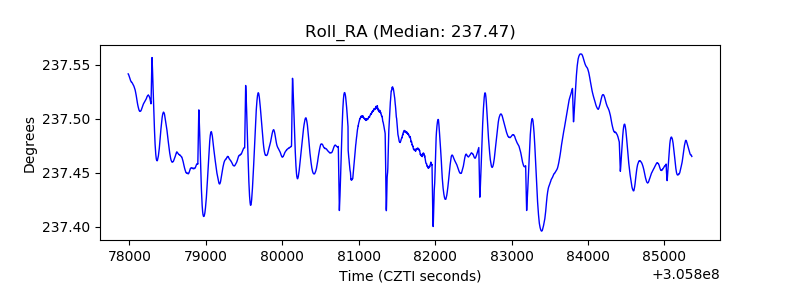

| _Roll_RA |  |

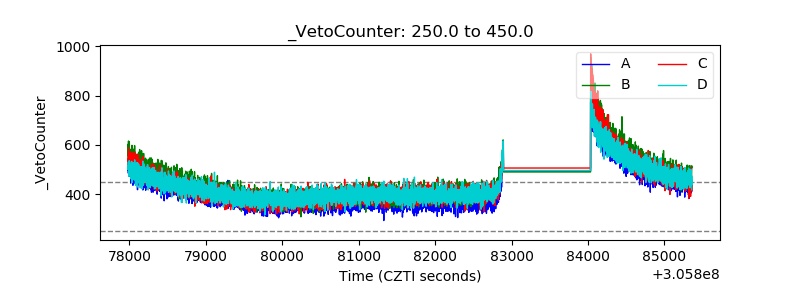

| Veto Counter |  |
