| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C04_001T01_9000003156_21381cztM0_level2.evt | modeM0/AS1C04_001T01_9000003156_21381cztM0_level2_quad_clean.evt |
| Size (bytes) | 498,104,640 | 102,168,000 |
| Size | 475.0 MB | 97.4 MB |
| Events in quadrant A | 3,009,269 | 692,362 |
| Events in quadrant B | 3,280,698 | 688,286 |
| Events in quadrant C | 4,361,778 | 631,632 |
| Events in quadrant D | 4,011,068 | 647,476 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12859 | 1 |
| B | 0 | 13770 | 1 |
| C | 0 | 16933 | 3 |
| D | 0 | 16041 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6223 | 41 | 0.658846% |
| B | 6223 | 67 | 1.076651% |
| C | 6222 | 641 | 10.302154% |
| D | 6223 | 188 | 3.021051% |

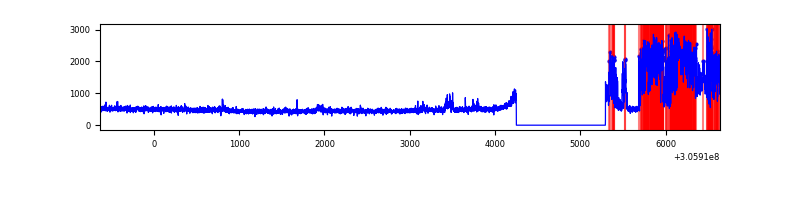

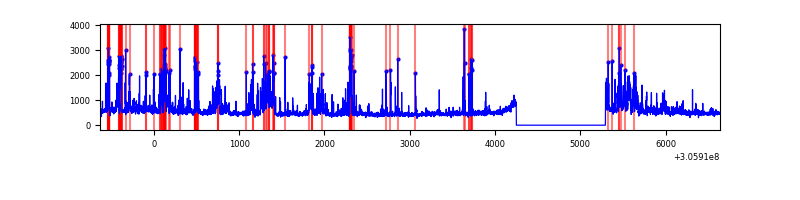

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7268 | 6224 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7268 | 6224 | 20 | 20 | 0.28% | 0.32% |  |
| C | 7267 | 6223 | 360 | 360 | 4.95% | 5.78% |  |
| D | 7268 | 6223 | 130 | 130 | 1.79% | 2.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 168 | 64924 | 425.44 | 755 | 739 | 150.9 |
| A | 4 | 2 | 25768 | 165.9 | 755 | 739 | 150.9 |
| A | 13 | 254 | 8400 | 50.78 | 755 | 739 | 150.9 |
| B | 0 | 189 | 93358 | 662.18 | 749 | 731 | 139.9 |
| B | 0 | 190 | 63426 | 448.2 | 749 | 731 | 139.9 |
| B | 0 | 219 | 39502 | 277.17 | 749 | 731 | 139.9 |
| C | 3 | 233 | 1482321 | 9028.28 | 709 | 712 | 164.1 |
| C | 14 | 238 | 111071 | 672.48 | 709 | 712 | 164.1 |
| C | 13 | 61 | 4991 | 26.07 | 709 | 712 | 164.1 |
| D | 1 | 52 | 684898 | 3896.57 | 738 | 719 | 175.6 |
| D | 12 | 235 | 129375 | 732.73 | 738 | 719 | 175.6 |
| D | 1 | 20 | 123687 | 700.33 | 738 | 719 | 175.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

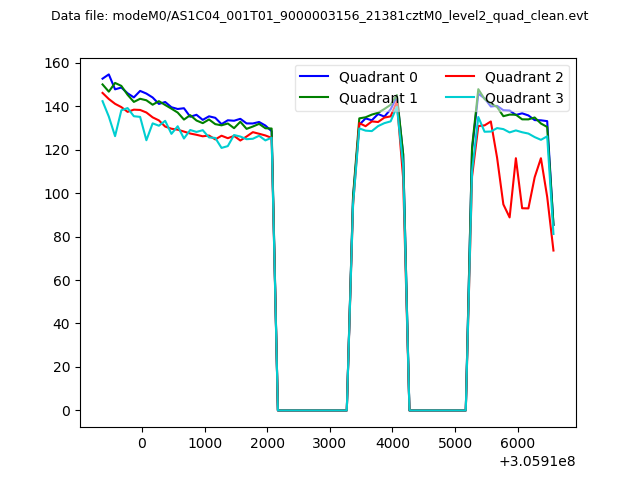

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

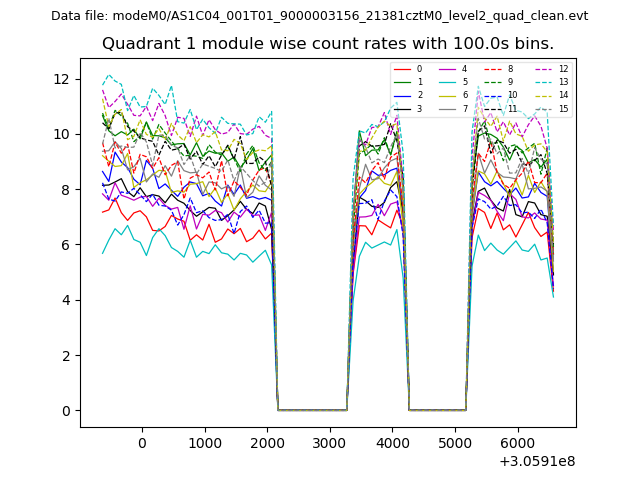

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

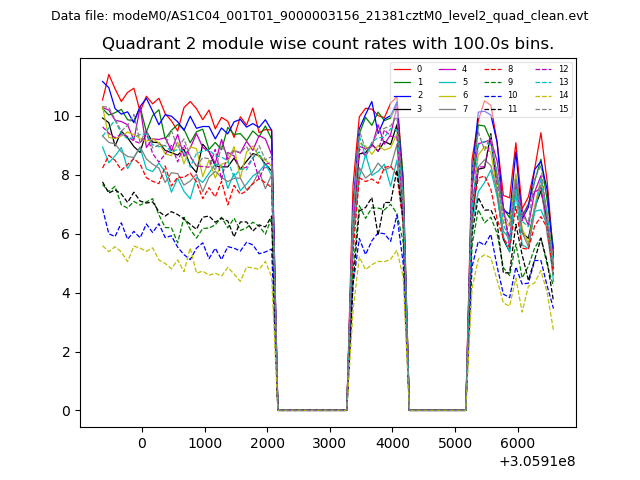

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

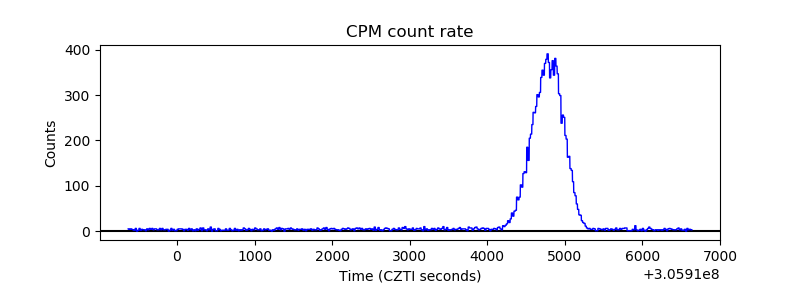

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

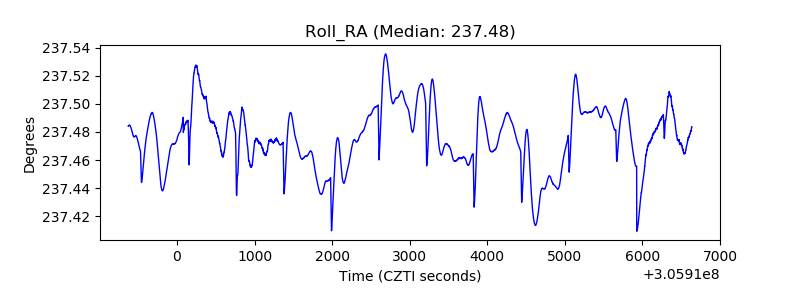

| _Roll_RA |  |

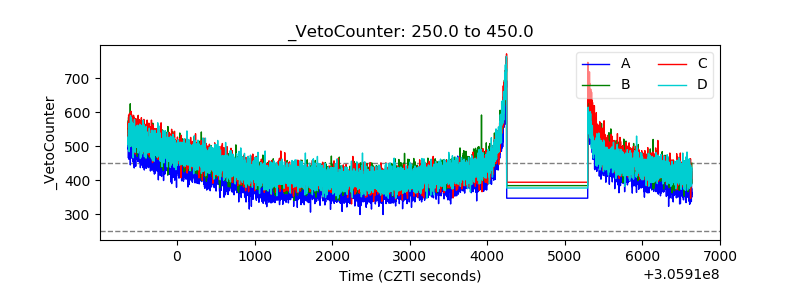

| Veto Counter |  |
