| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C04_001T01_9000003156_21387cztM0_level2.evt | modeM0/AS1C04_001T01_9000003156_21387cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,436,814,720 | 259,309,440 |
| Size | 1.3 GB | 247.3 MB |
| Events in quadrant A | 9,704,355 | 1,675,467 |
| Events in quadrant B | 9,123,182 | 1,709,514 |
| Events in quadrant C | 14,052,583 | 1,574,692 |
| Events in quadrant D | 9,384,150 | 1,618,312 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 41045 | 4 |
| B | 0 | 39403 | 4 |
| C | 0 | 54542 | 4 |
| D | 0 | 41053 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 376 | 0 |
| B | 0 | 376 | 0 |
| C | 0 | 376 | 0 |
| D | 0 | 376 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18515 | 344 | 1.857953% |
| B | 18516 | 227 | 1.225967% |
| C | 18516 | 1545 | 8.344135% |
| D | 18516 | 199 | 1.074746% |

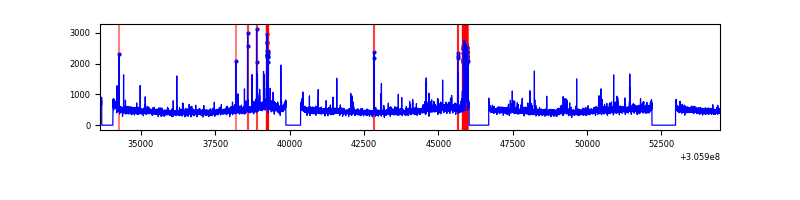

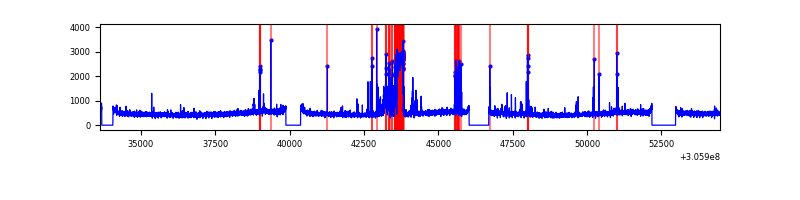

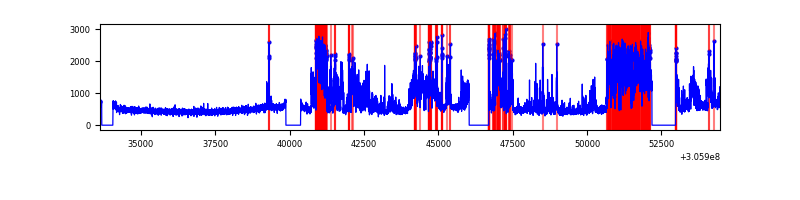

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20840 | 18518 | 277 | 277 | 1.33% | 1.50% |  |
| B | 20841 | 18519 | 103 | 103 | 0.49% | 0.56% |  |
| C | 20841 | 18517 | 729 | 729 | 3.50% | 3.94% |  |
| D | 20841 | 18520 | 156 | 156 | 0.75% | 0.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 1124029 | 2629.01 | 2145 | 2099 | 426.7 |
| A | 5 | 168 | 237177 | 550.86 | 2145 | 2099 | 426.7 |
| A | 15 | 174 | 50977 | 114.54 | 2145 | 2099 | 426.7 |
| B | 5 | 172 | 255038 | 619.06 | 2158 | 2104 | 408.6 |
| B | 3 | 64 | 96568 | 231.2 | 2158 | 2104 | 408.6 |
| B | 0 | 230 | 91632 | 219.12 | 2158 | 2104 | 408.6 |
| C | 3 | 233 | 5687951 | 12009.96 | 2033 | 2039 | 473.4 |
| C | 14 | 238 | 317280 | 665.86 | 2033 | 2039 | 473.4 |
| C | 10 | 91 | 79252 | 163.09 | 2033 | 2039 | 473.4 |
| D | 12 | 235 | 322373 | 628.83 | 2106 | 2044 | 509.4 |
| D | 13 | 153 | 267269 | 520.66 | 2106 | 2044 | 509.4 |
| D | 7 | 38 | 182723 | 354.69 | 2106 | 2044 | 509.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

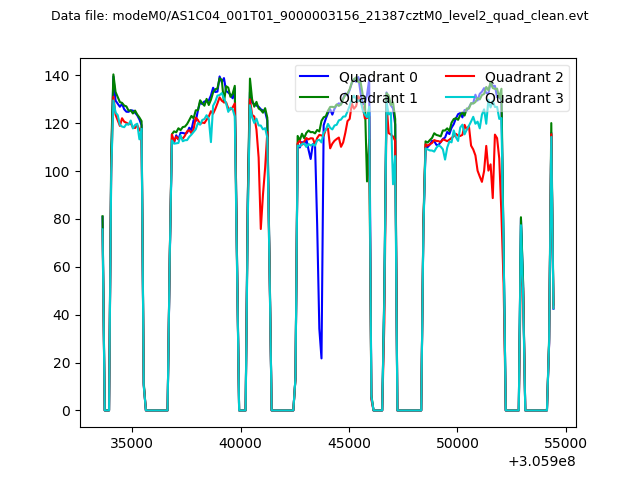

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

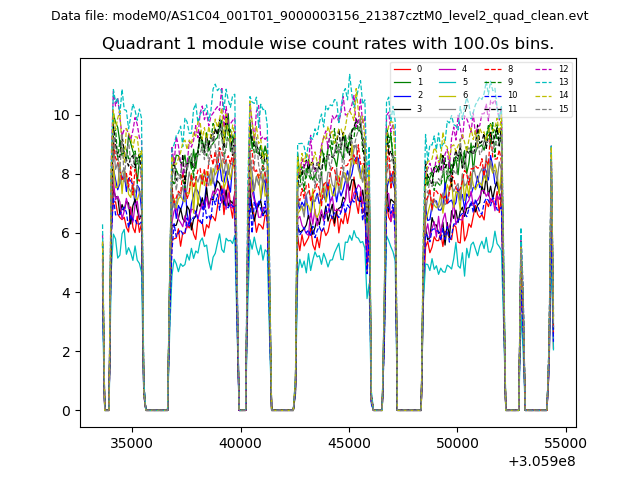

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

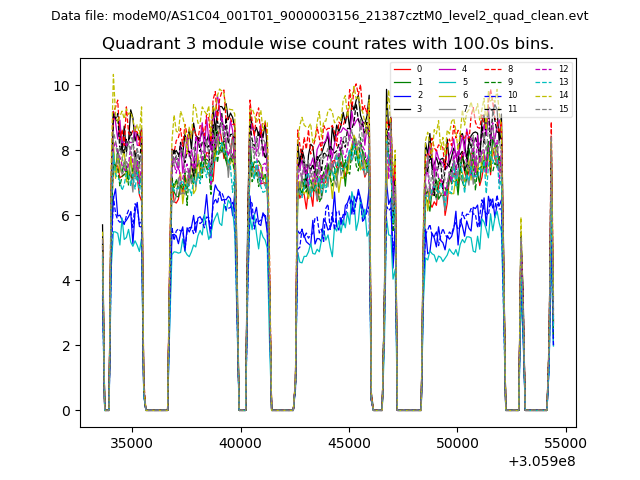

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

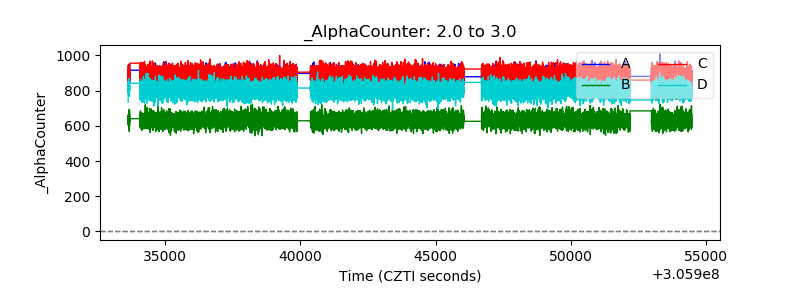

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
