| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C04_001T01_9000003156_21388cztM0_level2.evt | modeM0/AS1C04_001T01_9000003156_21388cztM0_level2_quad_clean.evt |
| Size (bytes) | 562,953,600 | 86,575,680 |
| Size | 536.9 MB | 82.6 MB |
| Events in quadrant A | 3,424,440 | 559,857 |
| Events in quadrant B | 3,142,691 | 570,667 |
| Events in quadrant C | 6,764,940 | 493,752 |
| Events in quadrant D | 3,270,683 | 537,866 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14147 | 1 |
| B | 0 | 13509 | 1 |
| C | 0 | 24630 | 1 |
| D | 0 | 14268 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6582 | 74 | 1.124278% |
| B | 6583 | 50 | 0.759532% |
| C | 6583 | 957 | 14.537445% |
| D | 6583 | 49 | 0.744341% |

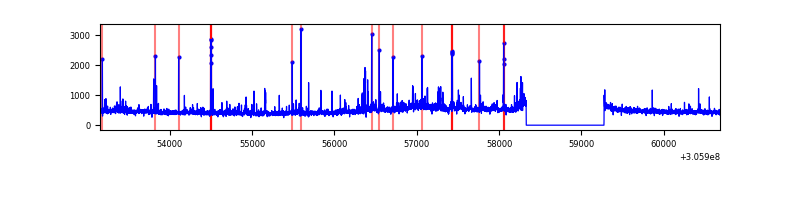

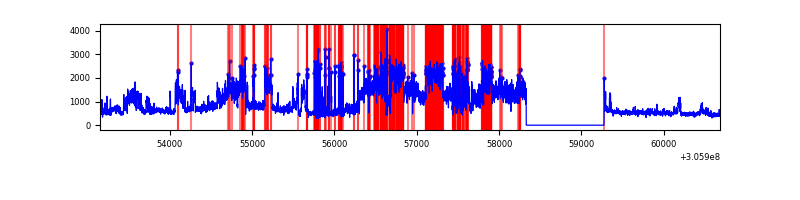

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7527 | 6582 | 26 | 26 | 0.35% | 0.40% |  |
| B | 7528 | 6583 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7528 | 6583 | 536 | 536 | 7.12% | 8.14% |  |
| D | 7528 | 6583 | 22 | 22 | 0.29% | 0.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 263422 | 1686.93 | 778 | 760 | 155.7 |
| A | 5 | 168 | 145724 | 931.02 | 778 | 760 | 155.7 |
| A | 13 | 254 | 9784 | 57.96 | 778 | 760 | 155.7 |
| B | 10 | 249 | 24778 | 163.42 | 778 | 758 | 147.0 |
| B | 0 | 230 | 22538 | 148.18 | 778 | 758 | 147.0 |
| B | 12 | 111 | 17800 | 115.94 | 778 | 758 | 147.0 |
| C | 3 | 233 | 3890095 | 23457.69 | 709 | 712 | 165.8 |
| C | 14 | 238 | 109952 | 658.85 | 709 | 712 | 165.8 |
| C | 13 | 61 | 4891 | 25.2 | 709 | 712 | 165.8 |
| D | 12 | 235 | 187999 | 1026.3 | 755 | 732 | 182.5 |
| D | 15 | 145 | 60076 | 325.23 | 755 | 732 | 182.5 |
| D | 1 | 52 | 57062 | 308.71 | 755 | 732 | 182.5 |

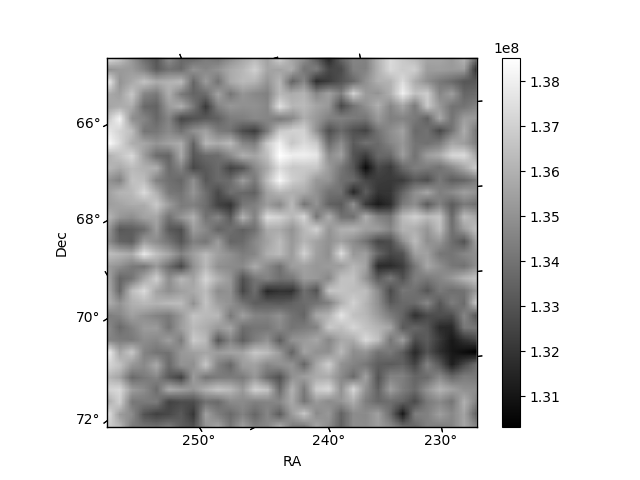

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

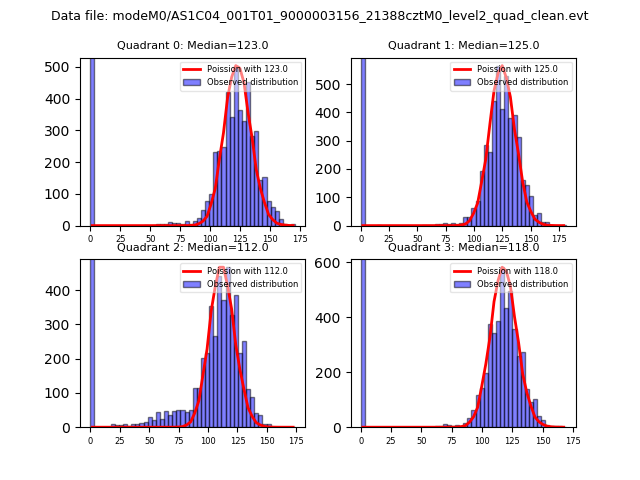

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

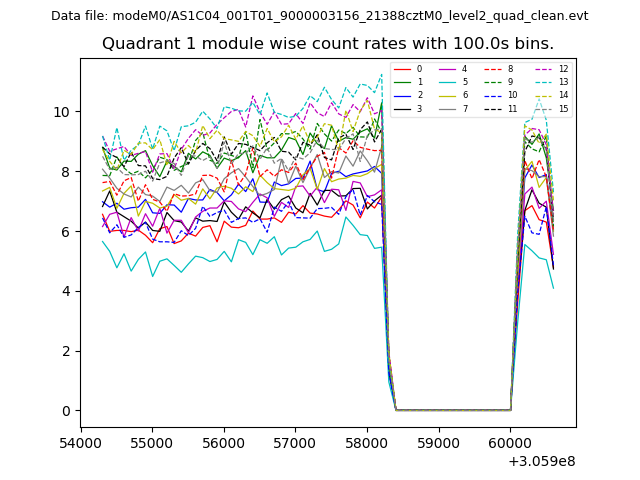

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

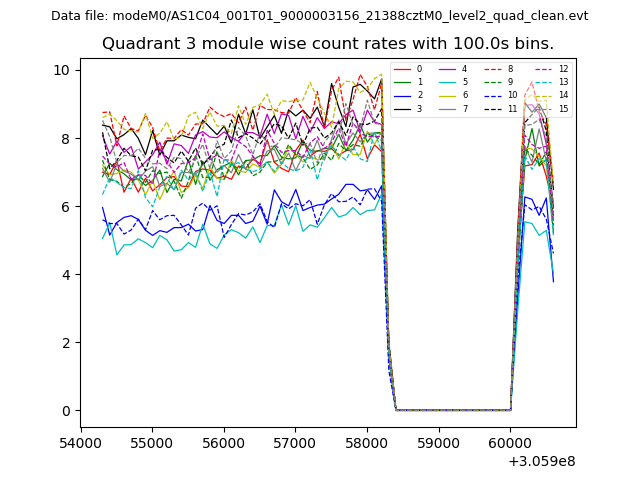

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

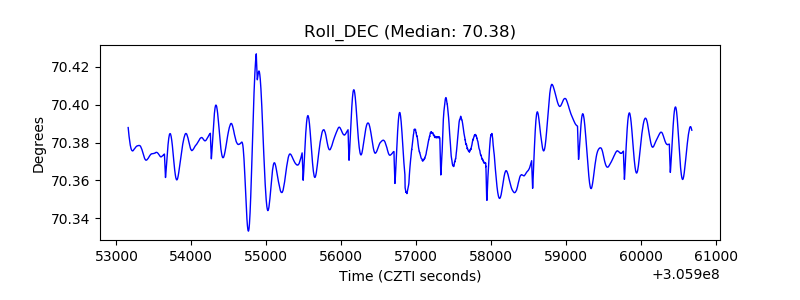

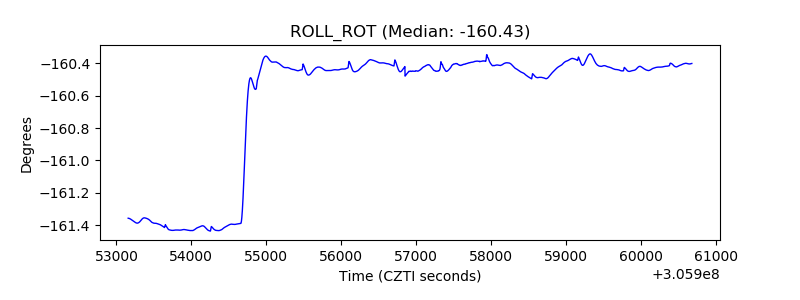

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
