| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C04_010T01_9000003158_21393cztM0_level2.evt | modeM0/AS1C04_010T01_9000003158_21393cztM0_level2_quad_clean.evt |
| Size (bytes) | 858,735,360 | 116,089,920 |
| Size | 819.0 MB | 110.7 MB |
| Events in quadrant A | 5,737,058 | 716,101 |
| Events in quadrant B | 5,683,988 | 723,653 |
| Events in quadrant C | 7,573,542 | 681,713 |
| Events in quadrant D | 6,312,692 | 676,719 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 210 | 0 |
| B | 0 | 210 | 0 |
| C | 0 | 210 | 0 |
| D | 0 | 210 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23028 | 2 |
| B | 0 | 22921 | 2 |
| C | 0 | 29178 | 2 |
| D | 0 | 25119 | 6 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 25 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10355 | 187 | 1.805891% |
| B | 10355 | 181 | 1.747948% |
| C | 10355 | 662 | 6.393047% |
| D | 10355 | 211 | 2.037663% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 12870 | 10355 | 3 | 3 | 0.02% | 0.03% |  |
| B | 12870 | 10355 | 5 | 5 | 0.04% | 0.05% |  |
| C | 12870 | 10355 | 257 | 257 | 2.00% | 2.48% |  |
| D | 12871 | 10356 | 51 | 51 | 0.40% | 0.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 168 | 169526 | 590.38 | 1427 | 1401 | 284.8 |
| A | 5 | 16 | 34167 | 115.06 | 1427 | 1401 | 284.8 |
| A | 13 | 254 | 17101 | 55.13 | 1427 | 1401 | 284.8 |
| B | 0 | 190 | 56012 | 208.95 | 1404 | 1375 | 261.5 |
| B | 0 | 228 | 35529 | 130.62 | 1404 | 1375 | 261.5 |
| B | 0 | 230 | 30176 | 110.14 | 1404 | 1375 | 261.5 |
| C | 3 | 233 | 2160876 | 7065.83 | 1332 | 1344 | 305.6 |
| C | 14 | 238 | 213343 | 693.64 | 1332 | 1344 | 305.6 |
| C | 13 | 61 | 9386 | 26.31 | 1332 | 1344 | 305.6 |
| D | 12 | 235 | 447089 | 1343.44 | 1383 | 1344 | 331.8 |
| D | 1 | 20 | 233352 | 699.25 | 1383 | 1344 | 331.8 |
| D | 7 | 38 | 171002 | 511.33 | 1383 | 1344 | 331.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

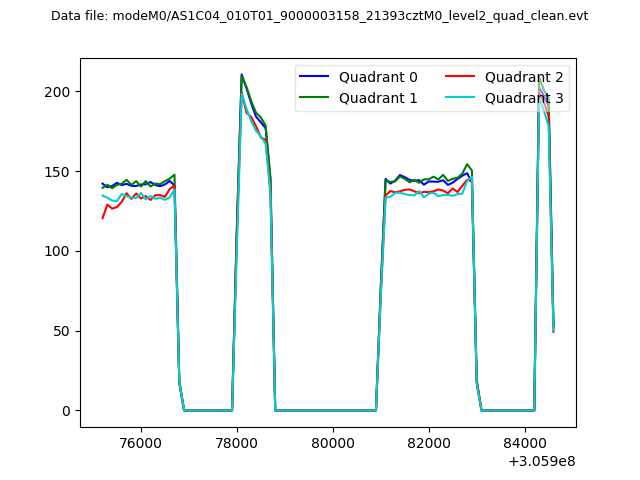

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

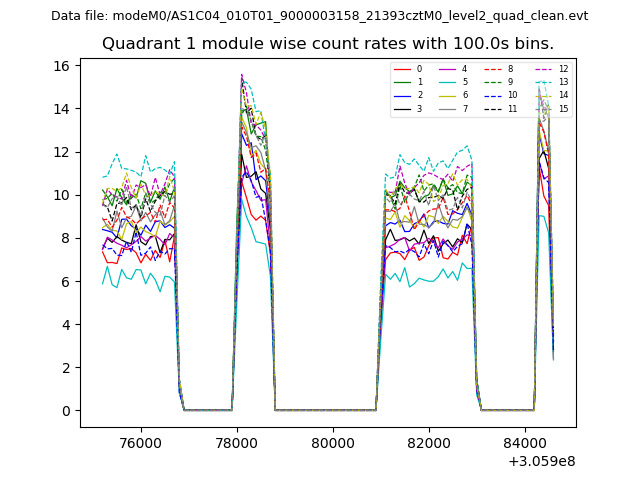

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

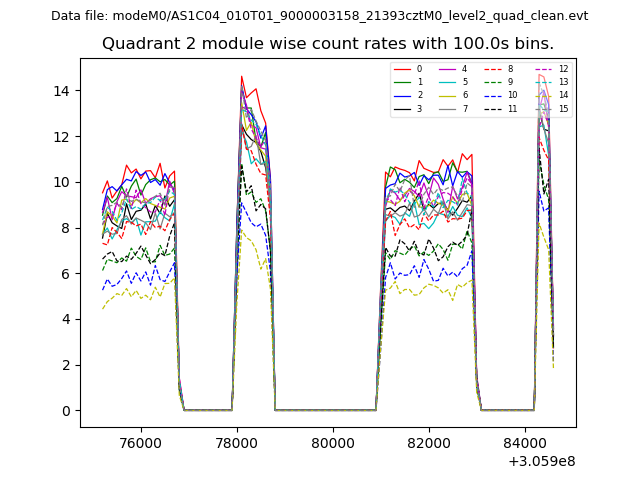

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

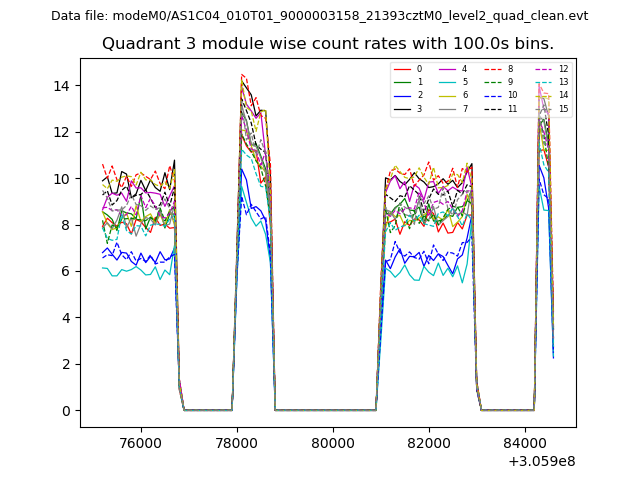

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

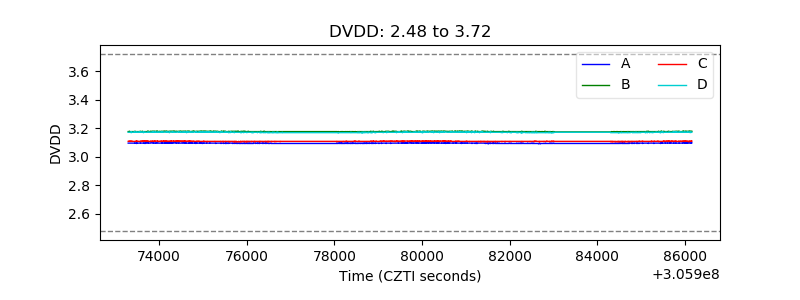

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

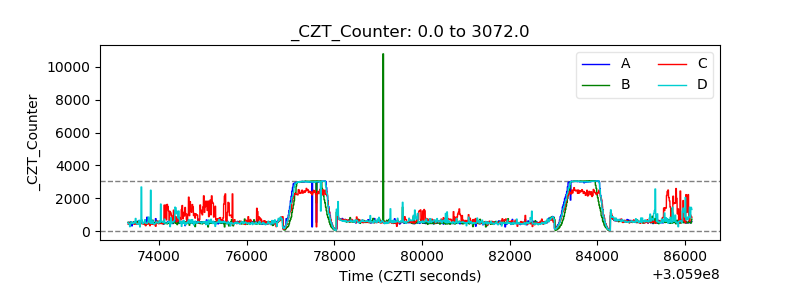

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

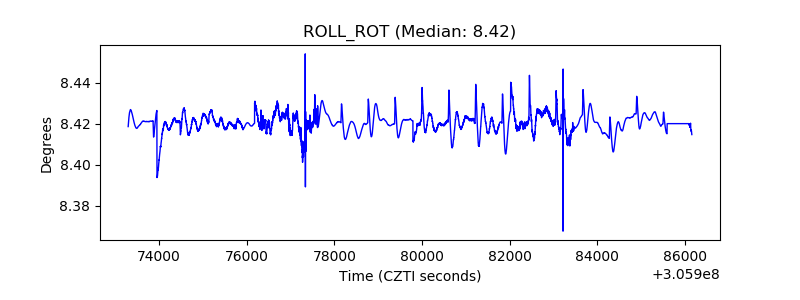

| _ROLL_ROT |  |

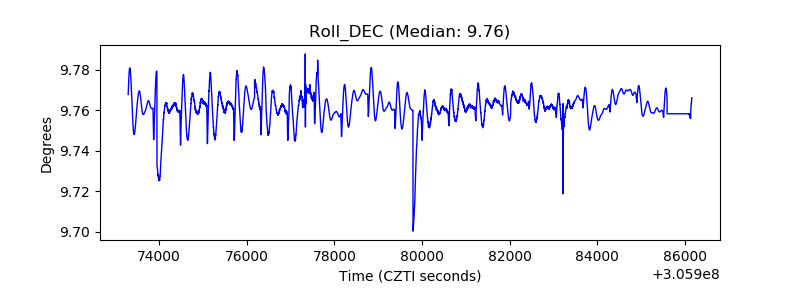

| _Roll_DEC |  |
