| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_140T01_9000003160_21405cztM0_level2.evt | modeM0/AS1T03_140T01_9000003160_21405cztM0_level2_quad_clean.evt |
| Size (bytes) | 563,391,360 | 70,796,160 |
| Size | 537.3 MB | 67.5 MB |
| Events in quadrant A | 3,299,289 | 438,588 |
| Events in quadrant B | 3,335,200 | 442,253 |
| Events in quadrant C | 4,159,482 | 420,695 |
| Events in quadrant D | 5,838,162 | 398,352 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13909 | 2 |
| B | 0 | 13756 | 2 |
| C | 0 | 16521 | 2 |
| D | 0 | 21683 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6360 | 44 | 0.691824% |
| B | 6359 | 57 | 0.896367% |
| C | 6359 | 217 | 3.412486% |
| D | 6359 | 331 | 5.205221% |

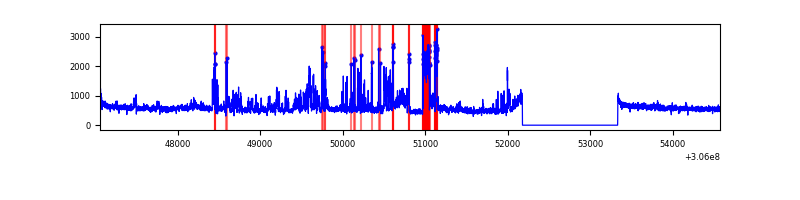

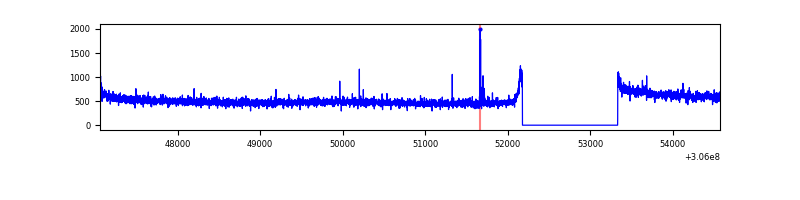

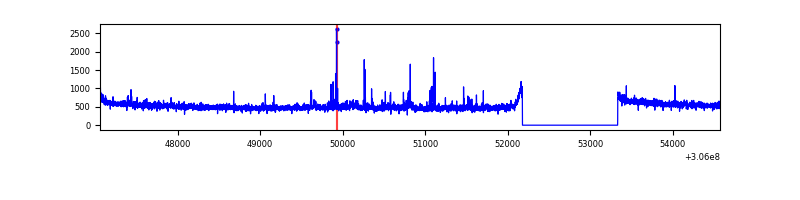

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7515 | 6360 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7514 | 6359 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7514 | 6359 | 98 | 98 | 1.30% | 1.54% |  |
| D | 7514 | 6359 | 338 | 338 | 4.50% | 5.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 168 | 86198 | 514.47 | 830 | 816 | 166.0 |
| A | 13 | 254 | 9643 | 53.19 | 830 | 816 | 166.0 |
| A | 11 | 47 | 8923 | 48.85 | 830 | 816 | 166.0 |
| B | 0 | 245 | 19169 | 118.05 | 828 | 809 | 155.5 |
| B | 0 | 230 | 19043 | 117.24 | 828 | 809 | 155.5 |
| B | 12 | 111 | 18504 | 113.77 | 828 | 809 | 155.5 |
| C | 3 | 233 | 950728 | 5196.98 | 790 | 798 | 182.8 |
| C | 14 | 238 | 125141 | 680.27 | 790 | 798 | 182.8 |
| C | 13 | 61 | 5462 | 25.52 | 790 | 798 | 182.8 |
| D | 12 | 235 | 1569946 | 8263.64 | 794 | 774 | 189.9 |
| D | 1 | 20 | 523664 | 2753.66 | 794 | 774 | 189.9 |
| D | 1 | 52 | 384813 | 2022.44 | 794 | 774 | 189.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

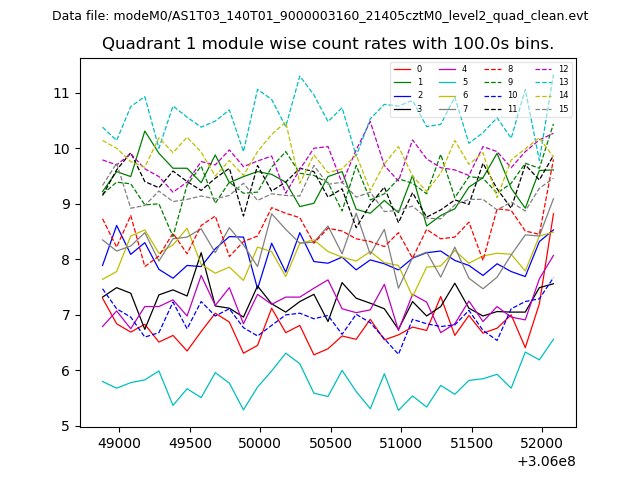

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

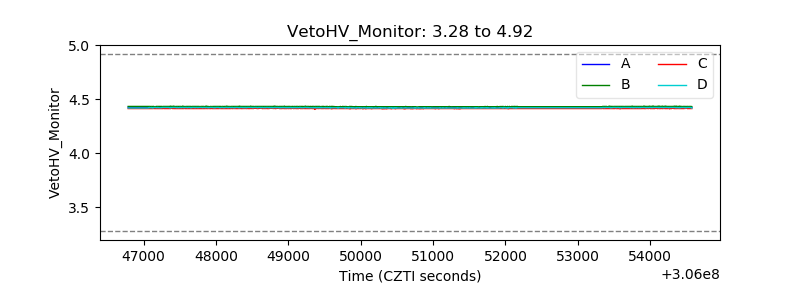

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

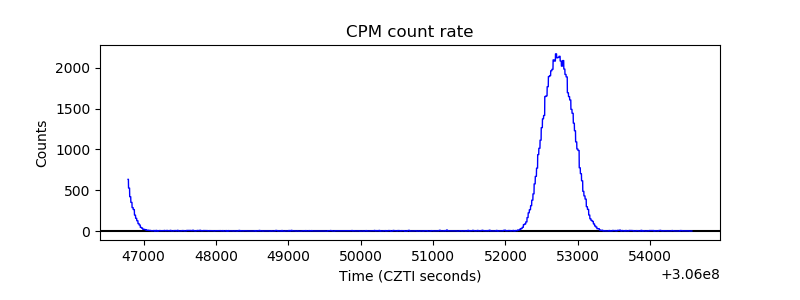

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

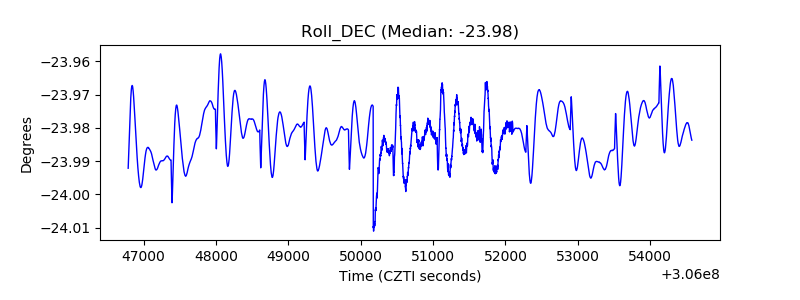

| _Roll_DEC |  |
| _Roll_RA |  |

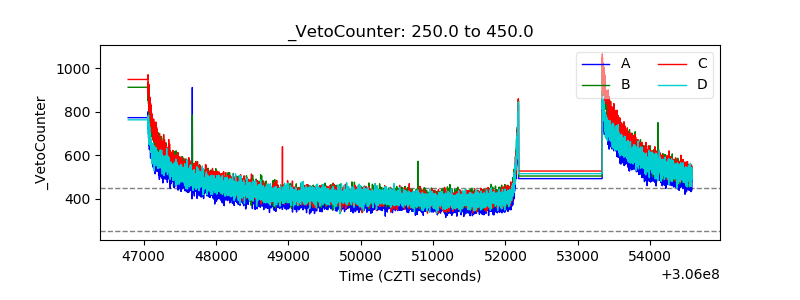

| Veto Counter |  |
