| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_140T01_9000003160_21408cztM0_level2.evt | modeM0/AS1T03_140T01_9000003160_21408cztM0_level2_quad_clean.evt |
| Size (bytes) | 625,492,800 | 104,915,520 |
| Size | 596.5 MB | 100.1 MB |
| Events in quadrant A | 3,539,653 | 740,425 |
| Events in quadrant B | 3,126,426 | 746,832 |
| Events in quadrant C | 3,283,583 | 711,855 |
| Events in quadrant D | 8,610,004 | 581,205 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14746 | 1 |
| B | 0 | 12816 | 3 |
| C | 0 | 13344 | 1 |
| D | 0 | 29597 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5674 | 116 | 2.044413% |
| B | 5673 | 124 | 2.185792% |
| C | 5673 | 147 | 2.591222% |
| D | 5674 | 1773 | 31.247797% |

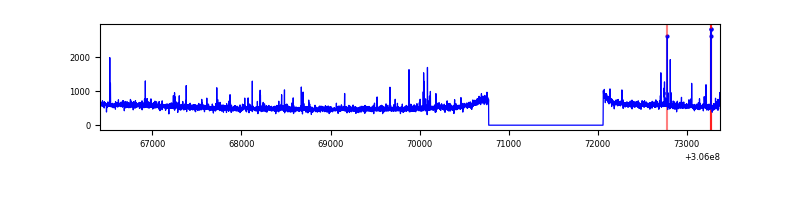

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6959 | 5674 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6958 | 5673 | 4 | 4 | 0.06% | 0.07% |  |
| C | 6958 | 5673 | 3 | 3 | 0.04% | 0.05% |  |
| D | 6959 | 5674 | 1755 | 1755 | 25.22% | 30.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 168 | 473856 | 3047.16 | 782 | 769 | 155.3 |
| A | 11 | 47 | 43148 | 272.96 | 782 | 769 | 155.3 |
| A | 13 | 254 | 9185 | 54.21 | 782 | 769 | 155.3 |
| B | 6 | 36 | 27916 | 187.93 | 766 | 748 | 144.6 |
| B | 0 | 190 | 23184 | 155.2 | 766 | 748 | 144.6 |
| B | 0 | 230 | 21739 | 145.2 | 766 | 748 | 144.6 |
| C | 3 | 233 | 288620 | 1696.39 | 735 | 742 | 169.7 |
| C | 14 | 238 | 118519 | 694.03 | 735 | 742 | 169.7 |
| C | 0 | 236 | 9388 | 50.95 | 735 | 742 | 169.7 |
| D | 12 | 235 | 4312631 | 26213.1 | 681 | 664 | 164.5 |
| D | 1 | 52 | 882224 | 5359.14 | 681 | 664 | 164.5 |
| D | 7 | 238 | 282897 | 1715.74 | 681 | 664 | 164.5 |

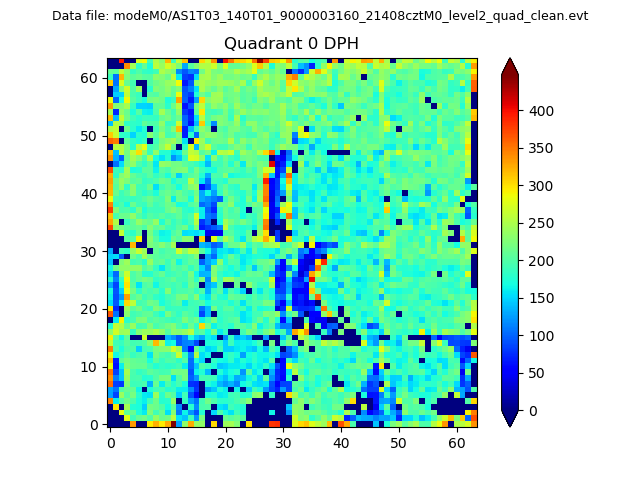

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

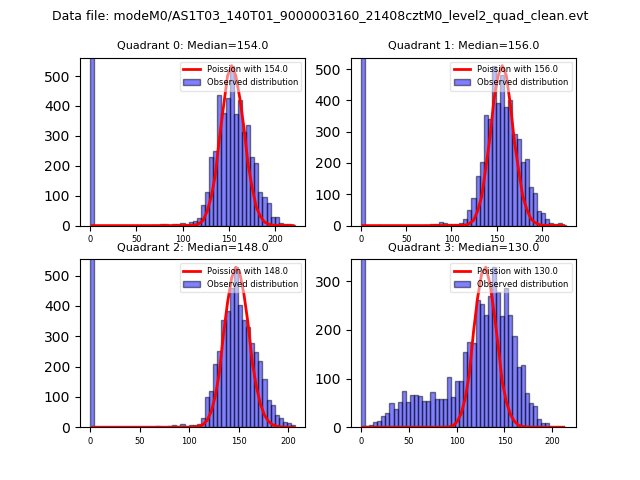

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

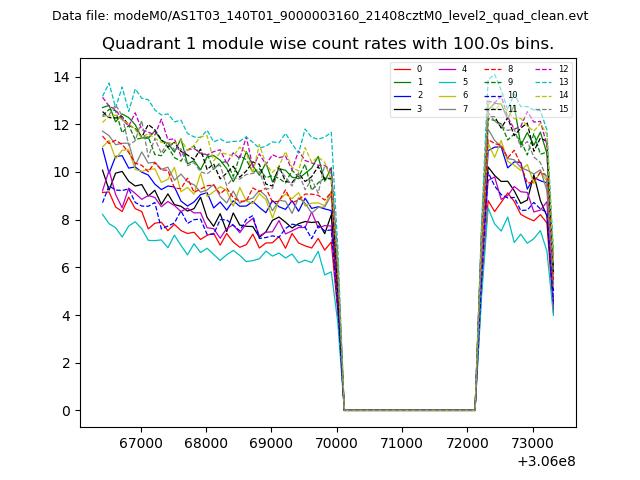

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

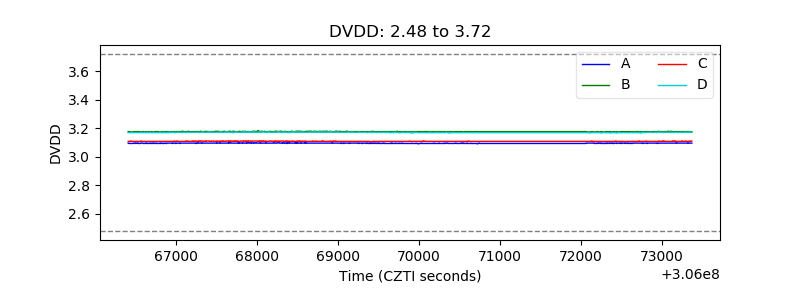

| D_VDD |  |

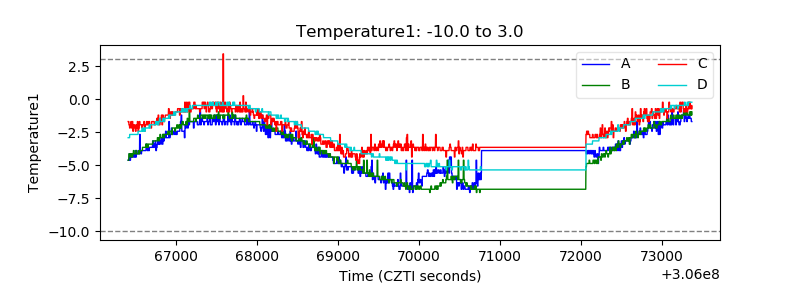

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

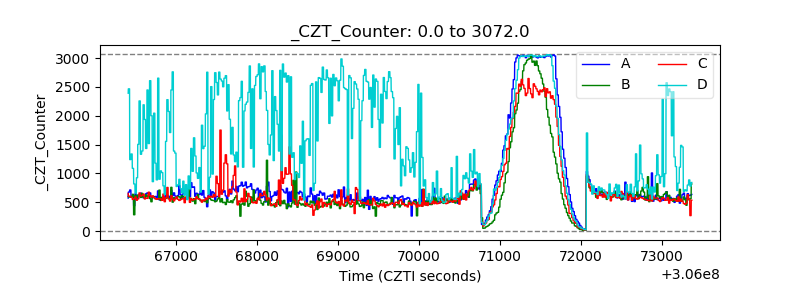

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

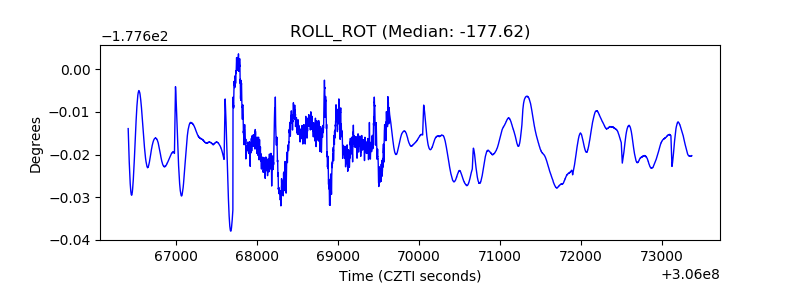

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
