| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_140T01_9000003160_21416cztM0_level2.evt | modeM0/AS1T03_140T01_9000003160_21416cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,341,480,960 | 234,000,000 |
| Size | 1.2 GB | 223.2 MB |
| Events in quadrant A | 9,238,131 | 1,474,603 |
| Events in quadrant B | 9,263,796 | 1,487,052 |
| Events in quadrant C | 9,459,594 | 1,434,052 |
| Events in quadrant D | 11,387,708 | 1,388,652 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 388 | 0 |
| B | 0 | 388 | 0 |
| C | 0 | 388 | 0 |
| D | 0 | 388 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 39092 | 4 |
| B | 0 | 39709 | 4 |
| C | 0 | 40380 | 4 |
| D | 0 | 46836 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18893 | 101 | 0.534590% |
| B | 18894 | 174 | 0.920927% |
| C | 18894 | 274 | 1.450196% |
| D | 18894 | 389 | 2.058855% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

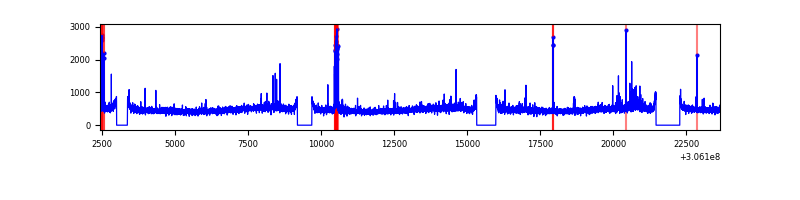

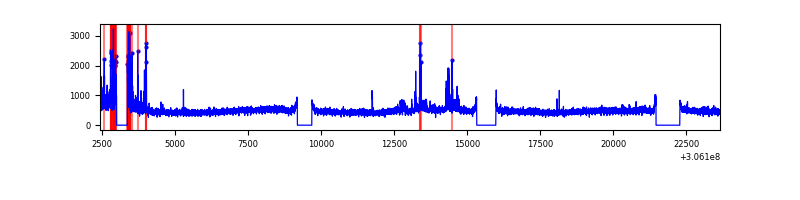

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 21228 | 18894 | 0 | 0 | 0.00% | 0.00% |  |
| B | 21229 | 18895 | 40 | 40 | 0.19% | 0.21% |  |
| C | 21229 | 18896 | 49 | 49 | 0.23% | 0.26% |  |
| D | 21229 | 18895 | 214 | 214 | 1.01% | 1.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 168 | 394857 | 865.55 | 2262 | 2217 | 453.6 |
| A | 11 | 47 | 99711 | 214.92 | 2262 | 2217 | 453.6 |
| A | 13 | 254 | 26171 | 52.8 | 2262 | 2217 | 453.6 |
| B | 0 | 228 | 152077 | 345.23 | 2259 | 2200 | 434.1 |
| B | 0 | 230 | 79765 | 178.66 | 2259 | 2200 | 434.1 |
| B | 0 | 189 | 78180 | 175.01 | 2259 | 2200 | 434.1 |
| C | 3 | 233 | 651683 | 1291.83 | 2155 | 2172 | 502.8 |
| C | 14 | 238 | 338462 | 668.86 | 2155 | 2172 | 502.8 |
| C | 10 | 91 | 34976 | 65.24 | 2155 | 2172 | 502.8 |
| D | 1 | 52 | 1656754 | 3096.03 | 2180 | 2113 | 534.4 |
| D | 12 | 235 | 566617 | 1056.25 | 2180 | 2113 | 534.4 |
| D | 14 | 35 | 276759 | 513.9 | 2180 | 2113 | 534.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

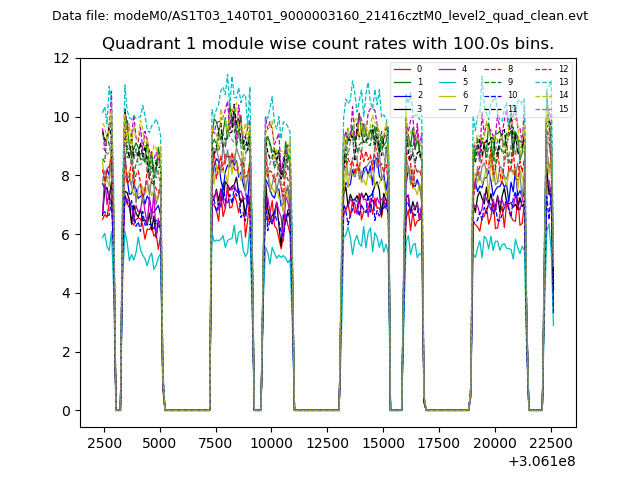

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

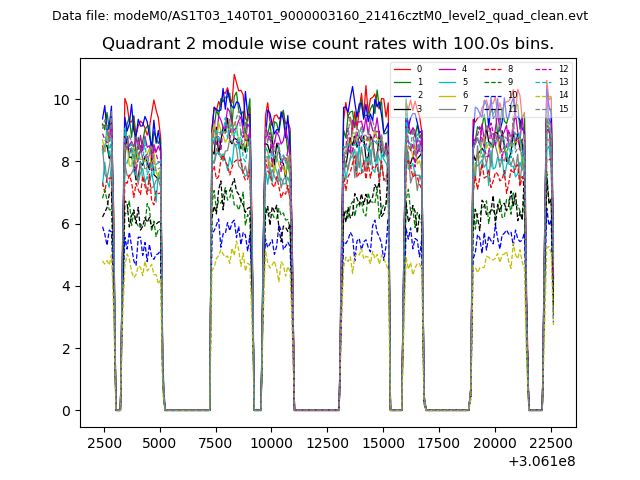

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

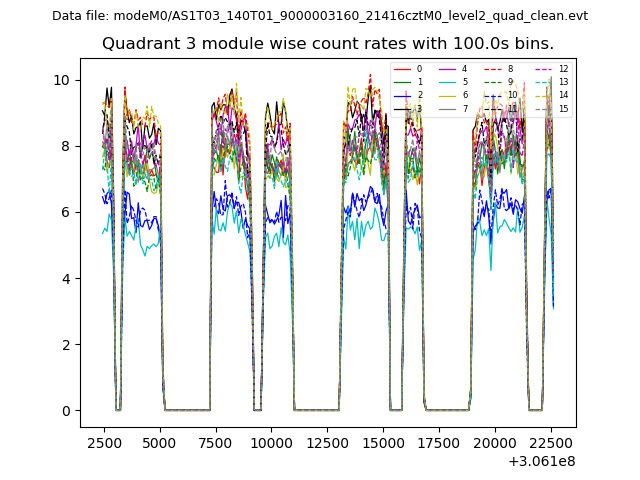

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

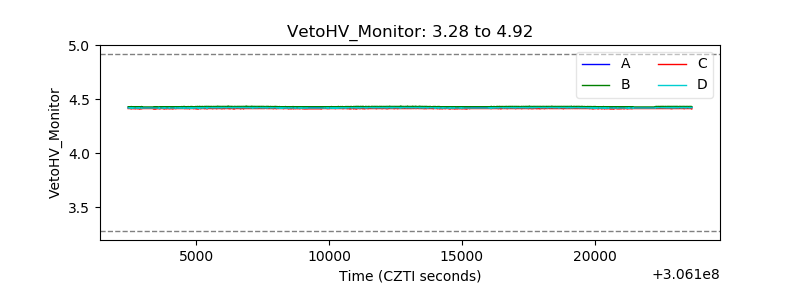

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

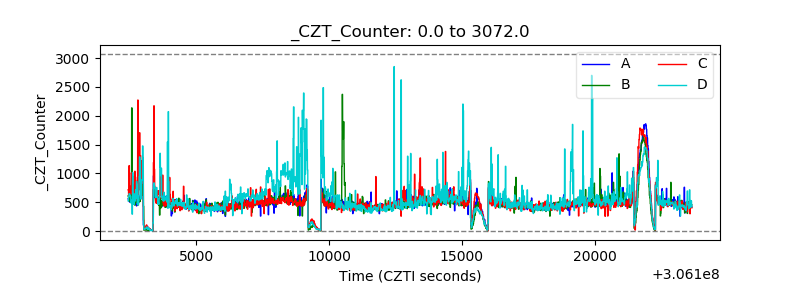

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

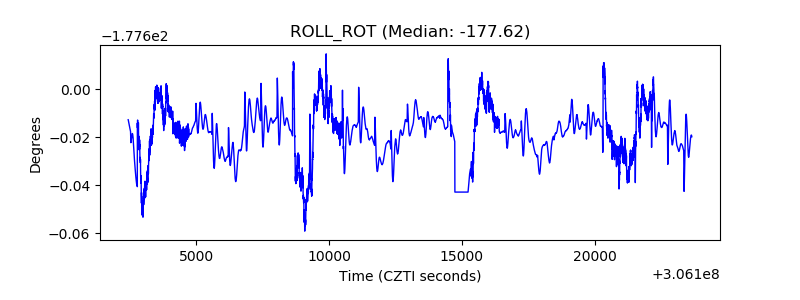

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
