| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_140T01_9000003160_21419cztM0_level2.evt | modeM0/AS1T03_140T01_9000003160_21419cztM0_level2_quad_clean.evt |
| Size (bytes) | 443,842,560 | 66,536,640 |
| Size | 423.3 MB | 63.5 MB |
| Events in quadrant A | 3,270,212 | 394,989 |
| Events in quadrant B | 3,228,339 | 401,760 |
| Events in quadrant C | 3,235,872 | 389,472 |
| Events in quadrant D | 3,272,552 | 381,911 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13435 | 2 |
| B | 0 | 13486 | 2 |
| C | 0 | 13383 | 2 |
| D | 0 | 13693 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6398 | 37 | 0.578306% |
| B | 6398 | 52 | 0.812754% |
| C | 6398 | 83 | 1.297280% |
| D | 6398 | 46 | 0.718975% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7498 | 6398 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7498 | 6398 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7498 | 6398 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7498 | 6398 | 12 | 12 | 0.16% | 0.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 168 | 113723 | 696.33 | 812 | 797 | 162.2 |
| A | 11 | 47 | 21914 | 130.21 | 812 | 797 | 162.2 |
| A | 13 | 254 | 8899 | 49.96 | 812 | 797 | 162.2 |
| B | 0 | 230 | 29397 | 186.49 | 813 | 793 | 153.4 |
| B | 12 | 111 | 18355 | 114.5 | 813 | 793 | 153.4 |
| B | 11 | 111 | 15962 | 98.9 | 813 | 793 | 153.4 |
| C | 14 | 238 | 122497 | 671.39 | 779 | 784 | 181.3 |
| C | 10 | 91 | 74901 | 408.84 | 779 | 784 | 181.3 |
| C | 13 | 61 | 5460 | 25.79 | 779 | 784 | 181.3 |
| D | 12 | 235 | 96685 | 501.73 | 789 | 766 | 191.2 |
| D | 14 | 35 | 64832 | 335.11 | 789 | 766 | 191.2 |
| D | 13 | 153 | 32109 | 163.95 | 789 | 766 | 191.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

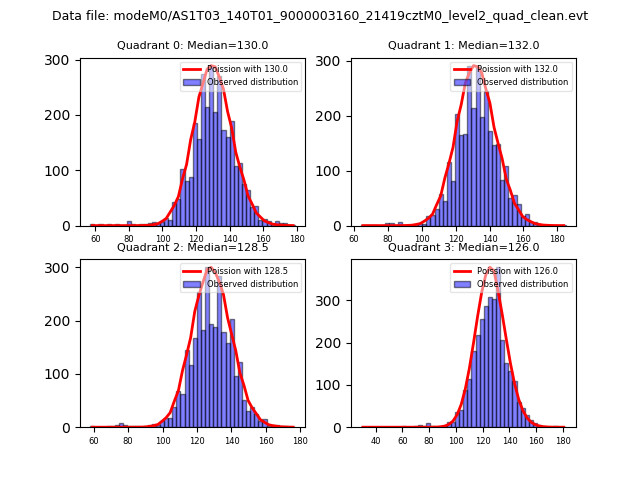

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

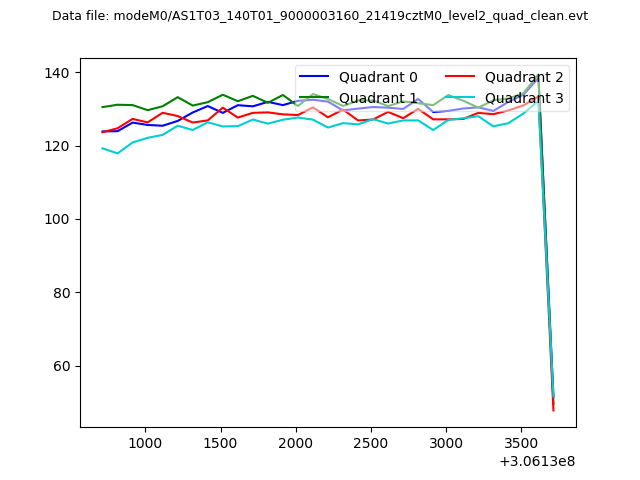

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

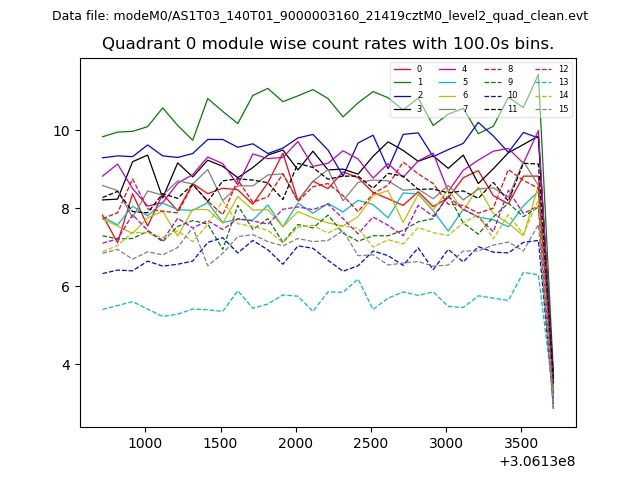

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

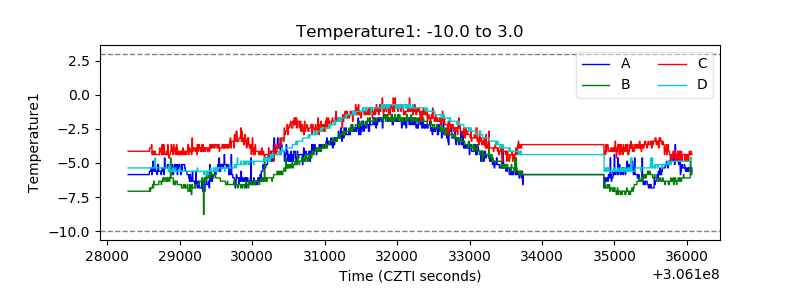

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
