| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_140T01_9000003160_21420cztM0_level2.evt | modeM0/AS1T03_140T01_9000003160_21420cztM0_level2_quad_clean.evt |
| Size (bytes) | 492,701,760 | 73,198,080 |
| Size | 469.9 MB | 69.8 MB |
| Events in quadrant A | 3,425,902 | 454,907 |
| Events in quadrant B | 3,326,010 | 460,958 |
| Events in quadrant C | 3,289,812 | 447,133 |
| Events in quadrant D | 4,450,881 | 412,221 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13999 | 2 |
| B | 0 | 13762 | 2 |
| C | 0 | 13728 | 2 |
| D | 0 | 17252 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 1 |
| C | 0 | 20 | 1 |
| D | 0 | 21 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6322 | 41 | 0.648529% |
| B | 6322 | 60 | 0.949067% |
| C | 6322 | 96 | 1.518507% |
| D | 6322 | 318 | 5.030054% |

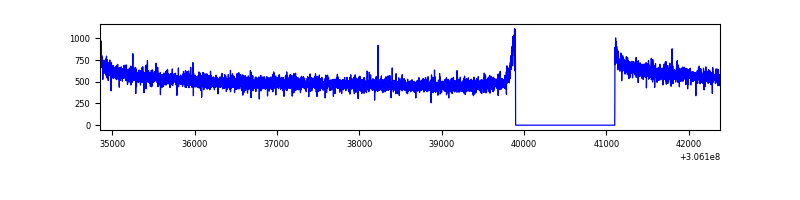

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7527 | 6322 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7527 | 6322 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7527 | 6322 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7527 | 6322 | 297 | 297 | 3.95% | 4.70% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 168 | 119128 | 703.69 | 848 | 833 | 168.1 |
| A | 11 | 47 | 36049 | 209.49 | 848 | 833 | 168.1 |
| A | 13 | 254 | 8624 | 46.35 | 848 | 833 | 168.1 |
| B | 12 | 111 | 18357 | 112.01 | 843 | 823 | 156.5 |
| B | 11 | 111 | 16197 | 98.21 | 843 | 823 | 156.5 |
| B | 14 | 111 | 14189 | 85.38 | 843 | 823 | 156.5 |
| C | 14 | 238 | 129310 | 684.09 | 810 | 817 | 187.8 |
| C | 13 | 61 | 5729 | 26.15 | 810 | 817 | 187.8 |
| C | 10 | 91 | 2108 | 6.87 | 810 | 817 | 187.8 |
| D | 13 | 153 | 617575 | 3207.19 | 805 | 783 | 192.3 |
| D | 1 | 52 | 331578 | 1720.07 | 805 | 783 | 192.3 |
| D | 12 | 235 | 205901 | 1066.57 | 805 | 783 | 192.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

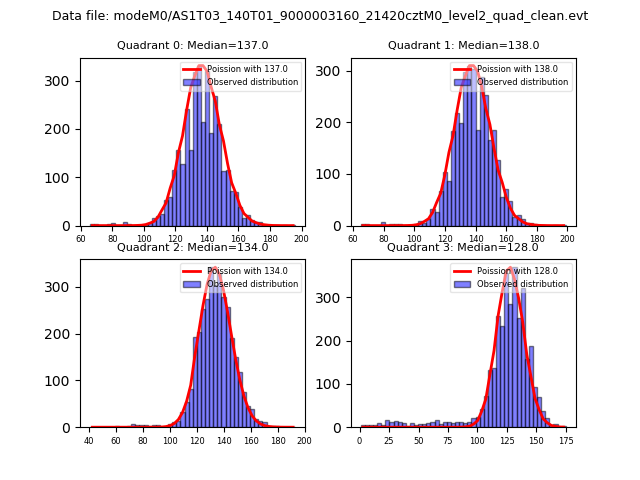

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

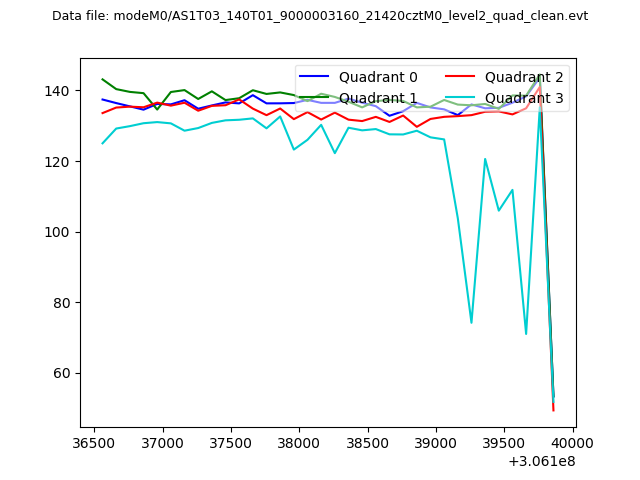

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

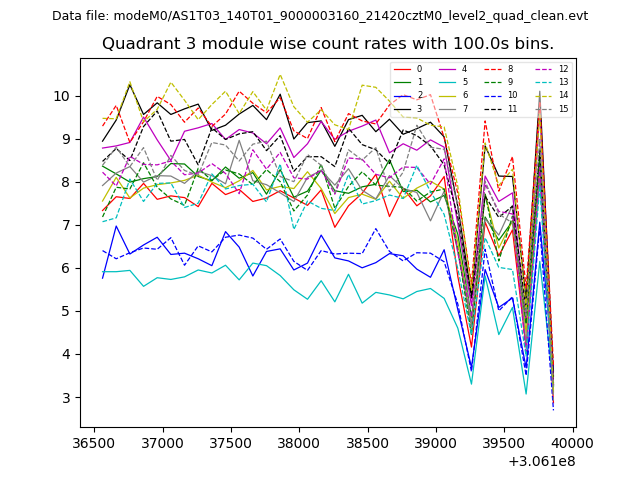

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

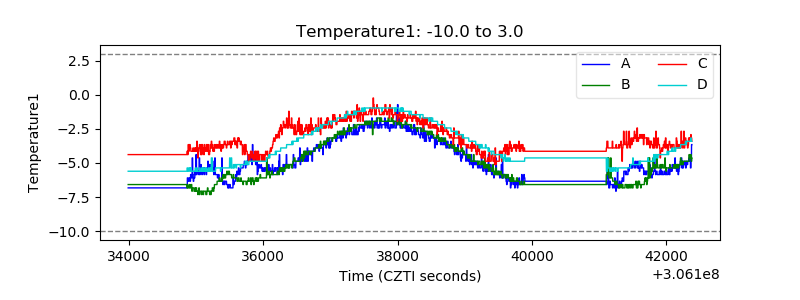

| Temperature 1 |  |

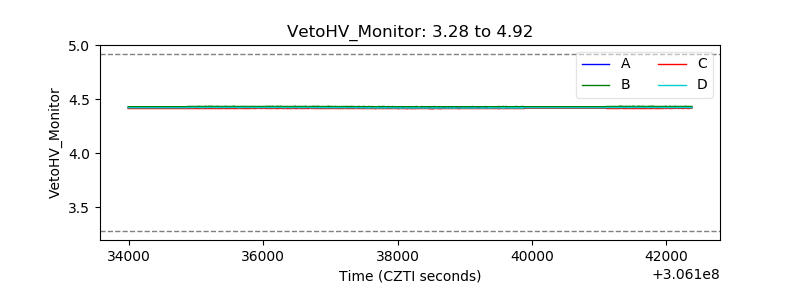

| Veto HV Monitor |  |
| Veto LLD |  |

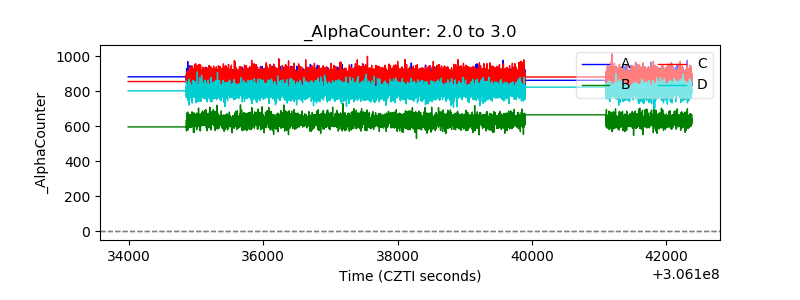

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
