| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_140T01_9000003160_21435cztM0_level2.evt | modeM0/AS1T03_140T01_9000003160_21435cztM0_level2_quad_clean.evt |
| Size (bytes) | 481,135,680 | 78,595,200 |
| Size | 458.8 MB | 75.0 MB |
| Events in quadrant A | 3,364,074 | 493,500 |
| Events in quadrant B | 3,441,837 | 500,835 |
| Events in quadrant C | 3,369,914 | 483,713 |
| Events in quadrant D | 3,967,805 | 462,267 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13850 | 2 |
| B | 0 | 14149 | 2 |
| C | 0 | 13985 | 2 |
| D | 0 | 15837 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6291 | 47 | 0.747099% |
| B | 6292 | 72 | 1.144310% |
| C | 6292 | 118 | 1.875397% |
| D | 6292 | 189 | 3.003814% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7536 | 6291 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7537 | 6292 | 6 | 6 | 0.08% | 0.10% |  |
| C | 7537 | 6292 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7537 | 6292 | 130 | 130 | 1.72% | 2.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 16091 | 89.1 | 869 | 857 | 171.0 |
| A | 13 | 254 | 9438 | 50.19 | 869 | 857 | 171.0 |
| A | 0 | 226 | 7587 | 39.36 | 869 | 857 | 171.0 |
| B | 3 | 64 | 25761 | 157.08 | 861 | 845 | 158.6 |
| B | 12 | 111 | 18311 | 110.11 | 861 | 845 | 158.6 |
| B | 0 | 230 | 16988 | 101.77 | 861 | 845 | 158.6 |
| C | 14 | 238 | 134953 | 705.85 | 829 | 838 | 190.0 |
| C | 13 | 61 | 5782 | 26.02 | 829 | 838 | 190.0 |
| C | 0 | 236 | 2644 | 9.51 | 829 | 838 | 190.0 |
| D | 7 | 38 | 367043 | 1810.56 | 837 | 813 | 202.3 |
| D | 12 | 235 | 212719 | 1047.61 | 837 | 813 | 202.3 |
| D | 14 | 34 | 83658 | 409.57 | 837 | 813 | 202.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

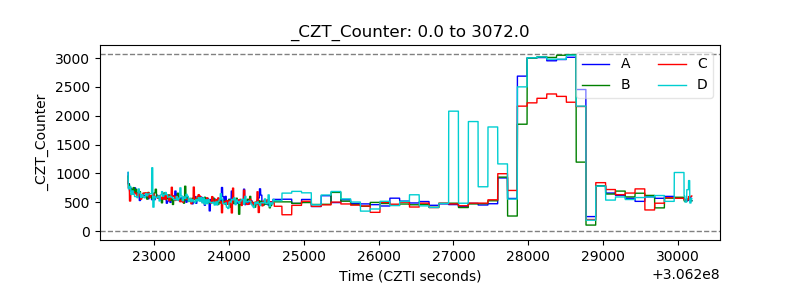

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

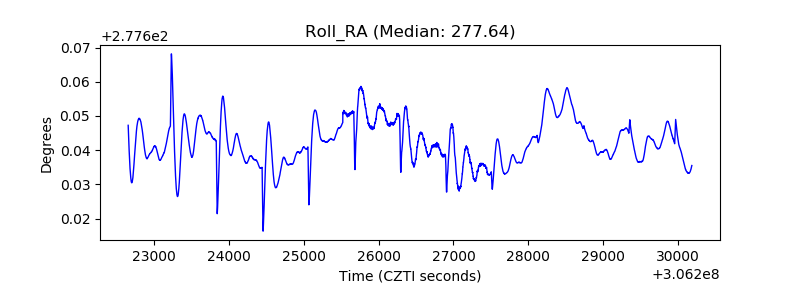

| _ROLL_ROT |  |

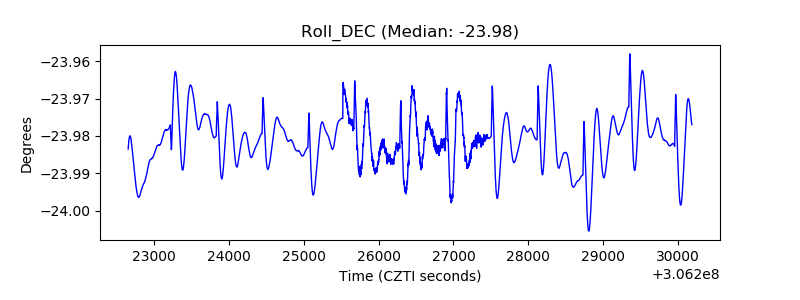

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
