| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_140T01_9000003160_21437cztM0_level2.evt | modeM0/AS1T03_140T01_9000003160_21437cztM0_level2_quad_clean.evt |
| Size (bytes) | 454,616,640 | 104,135,040 |
| Size | 433.6 MB | 99.3 MB |
| Events in quadrant A | 3,114,145 | 705,256 |
| Events in quadrant B | 3,264,174 | 707,526 |
| Events in quadrant C | 3,145,772 | 678,859 |
| Events in quadrant D | 3,852,242 | 658,739 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12835 | 1 |
| B | 0 | 13279 | 1 |
| C | 0 | 12878 | 1 |
| D | 0 | 15428 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5775 | 107 | 1.852814% |
| B | 5775 | 123 | 2.129870% |
| C | 5776 | 127 | 2.198753% |
| D | 5776 | 160 | 2.770083% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7065 | 5775 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7065 | 5775 | 13 | 13 | 0.18% | 0.23% |  |
| C | 7066 | 5776 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7066 | 5776 | 62 | 62 | 0.88% | 1.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 8664 | 48.93 | 807 | 794 | 160.8 |
| A | 0 | 226 | 7089 | 39.14 | 807 | 794 | 160.8 |
| A | 3 | 137 | 6234 | 33.82 | 807 | 794 | 160.8 |
| B | 0 | 190 | 63237 | 418.77 | 791 | 774 | 149.2 |
| B | 3 | 64 | 47595 | 313.9 | 791 | 774 | 149.2 |
| B | 0 | 197 | 19532 | 125.76 | 791 | 774 | 149.2 |
| C | 14 | 238 | 121742 | 693.64 | 760 | 768 | 174.4 |
| C | 3 | 233 | 61450 | 347.94 | 760 | 768 | 174.4 |
| C | 13 | 61 | 5551 | 27.42 | 760 | 768 | 174.4 |
| D | 12 | 235 | 309645 | 1667.21 | 779 | 758 | 185.3 |
| D | 7 | 38 | 175700 | 944.24 | 779 | 758 | 185.3 |
| D | 13 | 153 | 133972 | 719.02 | 779 | 758 | 185.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

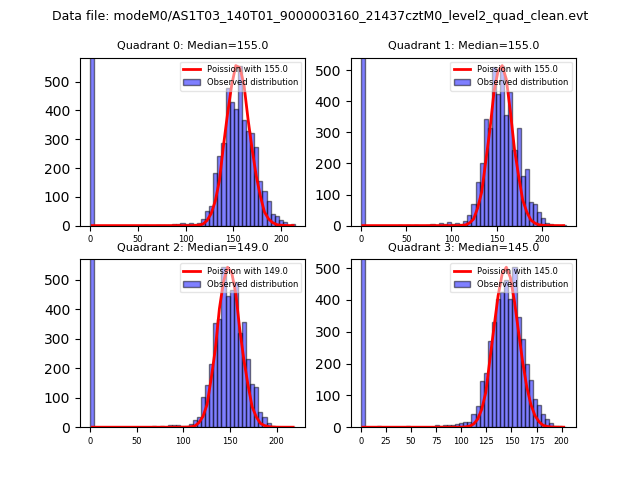

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

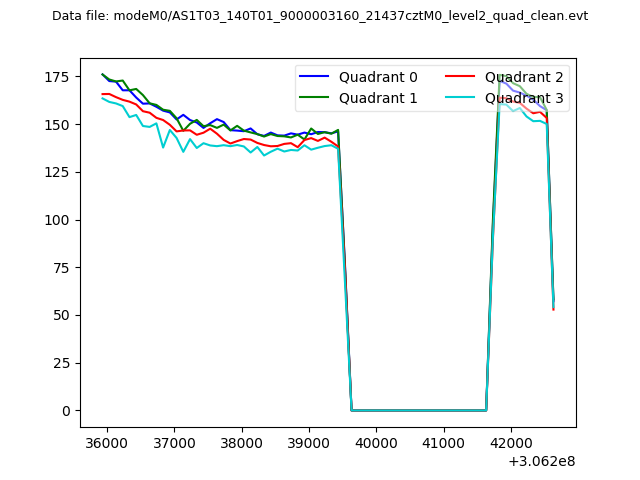

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

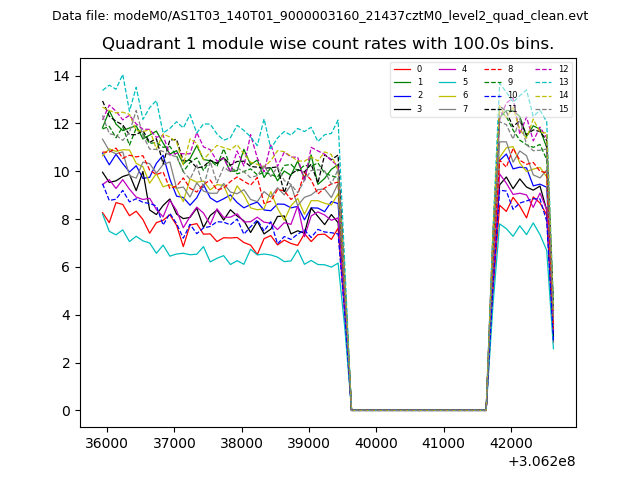

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

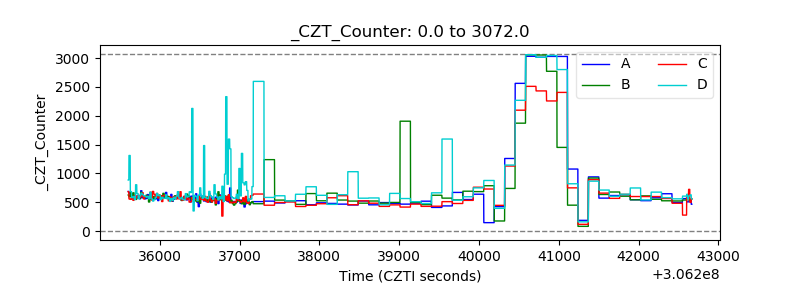

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

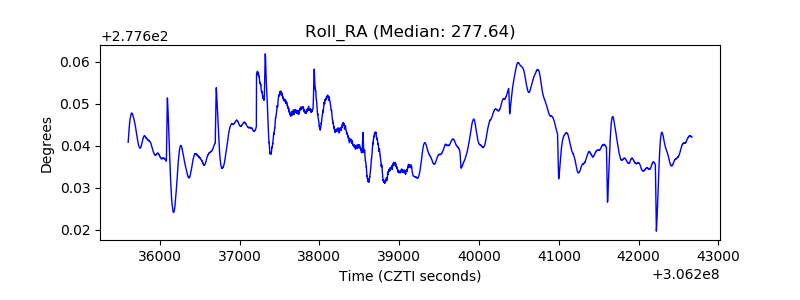

| _Roll_RA |  |
| Veto Counter |  |
