| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_140T01_9000003160_21442cztM0_level2.evt | modeM0/AS1T03_140T01_9000003160_21442cztM0_level2_quad_clean.evt |
| Size (bytes) | 648,901,440 | 108,028,800 |
| Size | 618.8 MB | 103.0 MB |
| Events in quadrant A | 3,650,984 | 710,135 |
| Events in quadrant B | 3,789,668 | 717,654 |
| Events in quadrant C | 3,698,480 | 693,695 |
| Events in quadrant D | 7,996,034 | 618,933 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15941 | 2 |
| B | 0 | 16256 | 2 |
| C | 0 | 16016 | 2 |
| D | 0 | 29071 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7634 | 65 | 0.851454% |
| B | 7634 | 97 | 1.270631% |
| C | 7633 | 118 | 1.545919% |
| D | 7634 | 1075 | 14.081740% |

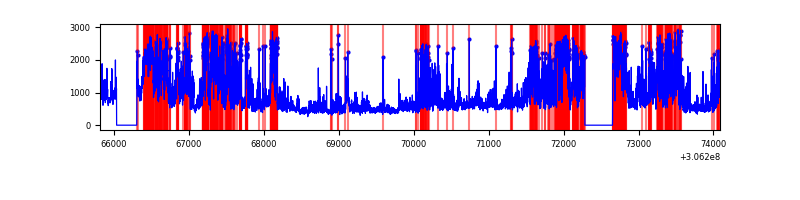

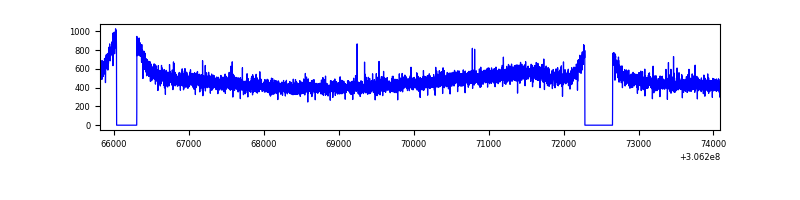

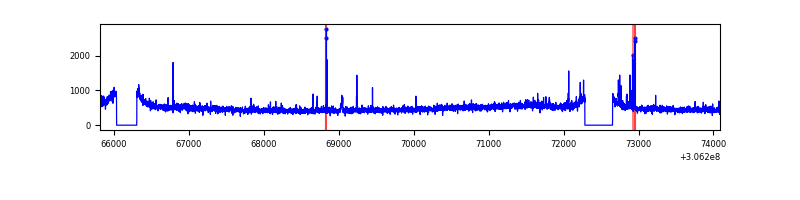

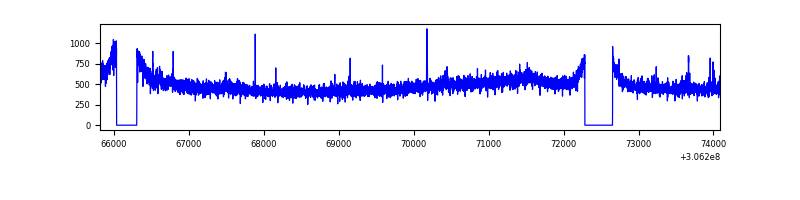

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8274 | 7635 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8274 | 7635 | 5 | 5 | 0.06% | 0.07% |  |
| C | 8273 | 7634 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8274 | 7634 | 935 | 935 | 11.30% | 12.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 13779 | 67.22 | 943 | 923 | 191.3 |
| A | 8 | 6 | 8577 | 40.02 | 943 | 923 | 191.3 |
| A | 0 | 226 | 8087 | 37.46 | 943 | 923 | 191.3 |
| B | 0 | 230 | 43846 | 235.15 | 936 | 909 | 182.6 |
| B | 12 | 111 | 21795 | 114.38 | 936 | 909 | 182.6 |
| B | 11 | 111 | 18800 | 97.98 | 936 | 909 | 182.6 |
| C | 14 | 238 | 138345 | 649.92 | 895 | 902 | 211.5 |
| C | 3 | 233 | 68254 | 318.48 | 895 | 902 | 211.5 |
| C | 13 | 61 | 6257 | 25.32 | 895 | 902 | 211.5 |
| D | 12 | 235 | 2717455 | 12828.69 | 867 | 840 | 211.8 |
| D | 1 | 20 | 1075889 | 5076.71 | 867 | 840 | 211.8 |
| D | 1 | 52 | 363374 | 1712.0 | 867 | 840 | 211.8 |

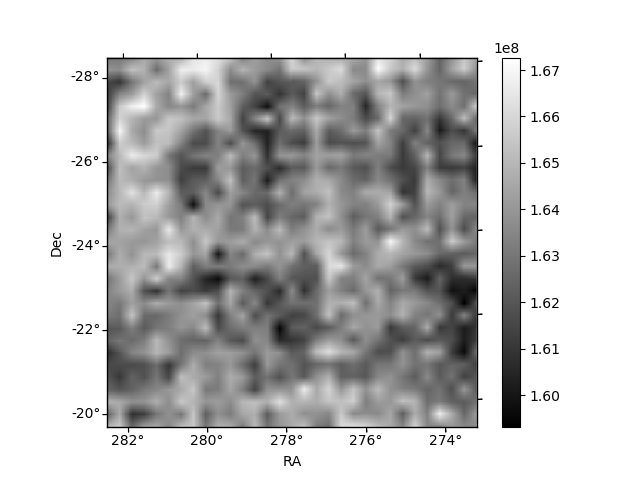

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

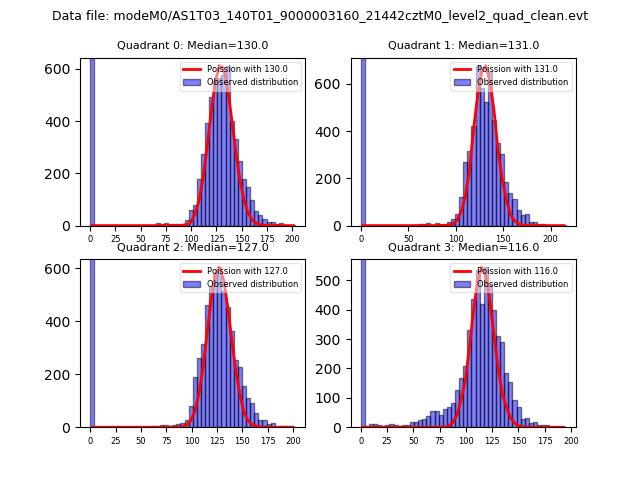

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

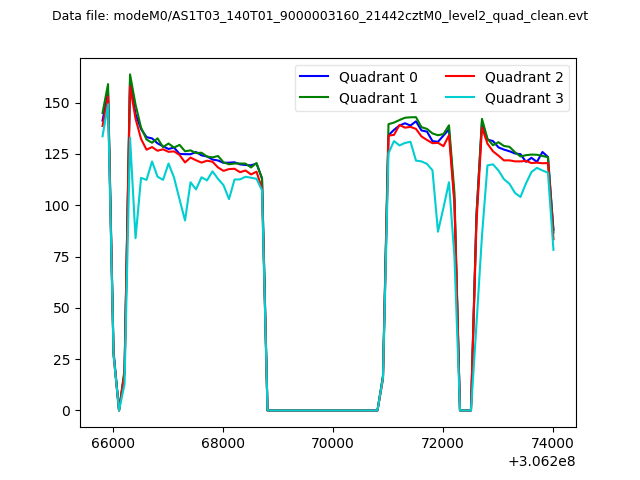

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

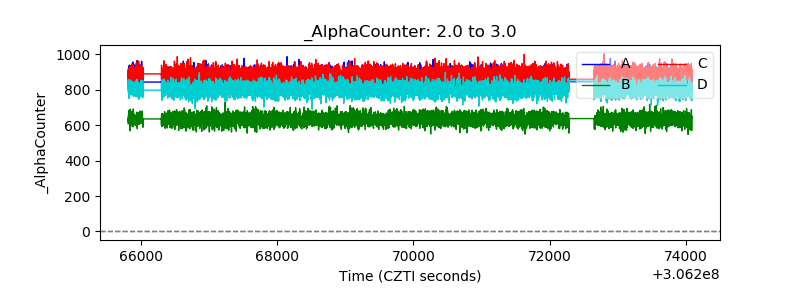

| Alpha Counter |  |

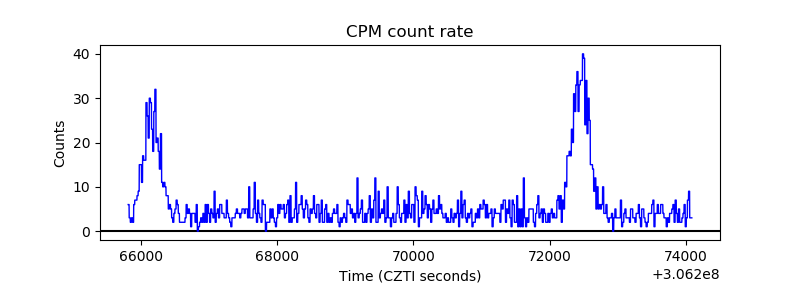

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
