| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_117T01_9000003166_21453cztM0_level2.evt | modeM0/AS1A05_117T01_9000003166_21453cztM0_level2_quad_clean.evt |
| Size (bytes) | 302,368,320 | 60,272,640 |
| Size | 288.4 MB | 57.5 MB |
| Events in quadrant A | 2,018,907 | 394,475 |
| Events in quadrant B | 2,036,785 | 396,105 |
| Events in quadrant C | 2,366,914 | 378,086 |
| Events in quadrant D | 2,464,166 | 376,659 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 82 | 0 |
| B | 0 | 82 | 0 |
| C | 0 | 82 | 0 |
| D | 0 | 82 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8414 | 2 |
| B | 0 | 8397 | 2 |
| C | 0 | 9435 | 2 |
| D | 0 | 9874 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3960 | 107 | 2.702020% |
| B | 3960 | 106 | 2.676768% |
| C | 3960 | 158 | 3.989899% |
| D | 3960 | 106 | 2.676768% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

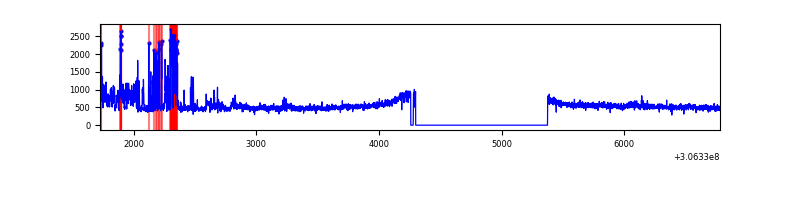

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5055 | 3960 | 0 | 0 | 0.00% | 0.00% |  |
| B | 5055 | 3960 | 0 | 0 | 0.00% | 0.00% |  |
| C | 5055 | 3960 | 49 | 49 | 0.97% | 1.24% |  |
| D | 5055 | 3960 | 27 | 27 | 0.53% | 0.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 47 | 31438 | 296.28 | 515 | 506 | 104.4 |
| A | 13 | 254 | 6033 | 52.94 | 515 | 506 | 104.4 |
| A | 0 | 226 | 4434 | 37.62 | 515 | 506 | 104.4 |
| B | 3 | 64 | 22950 | 228.16 | 509 | 497 | 98.4 |
| B | 0 | 230 | 17457 | 172.34 | 509 | 497 | 98.4 |
| B | 12 | 111 | 11809 | 114.95 | 509 | 497 | 98.4 |
| C | 3 | 233 | 386415 | 3362.12 | 488 | 491 | 114.8 |
| C | 14 | 238 | 77645 | 672.16 | 488 | 491 | 114.8 |
| C | 13 | 61 | 3360 | 24.99 | 488 | 491 | 114.8 |
| D | 14 | 34 | 113053 | 930.66 | 501 | 489 | 121.0 |
| D | 1 | 52 | 107889 | 887.97 | 501 | 489 | 121.0 |
| D | 12 | 235 | 80823 | 664.19 | 501 | 489 | 121.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

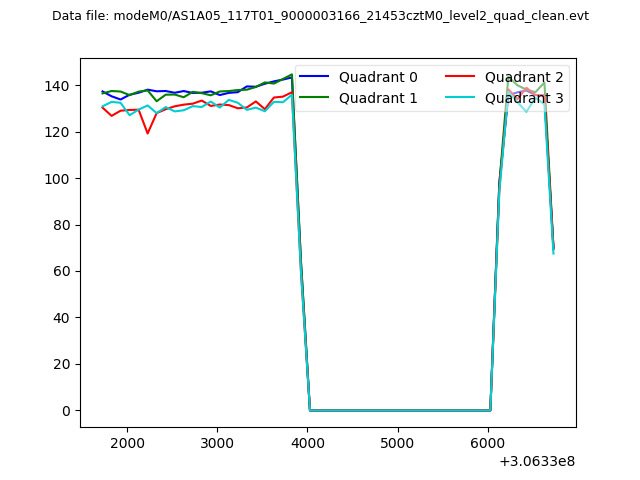

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

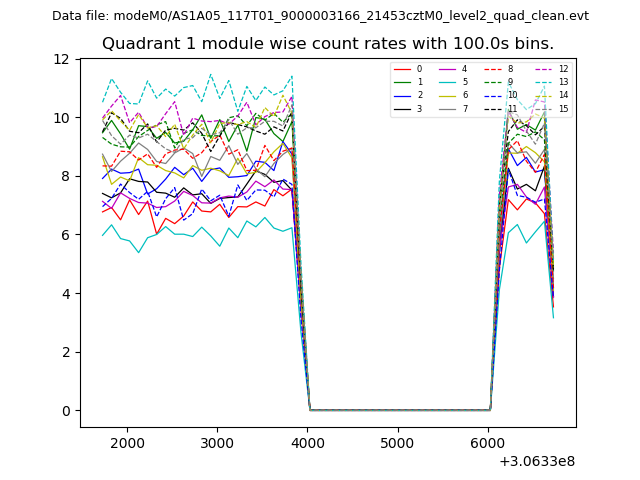

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

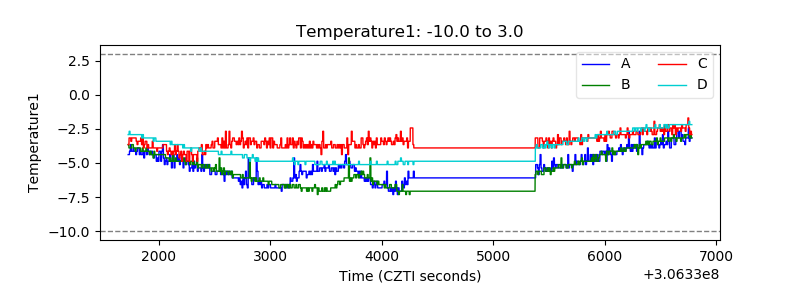

| Temperature 1 |  |

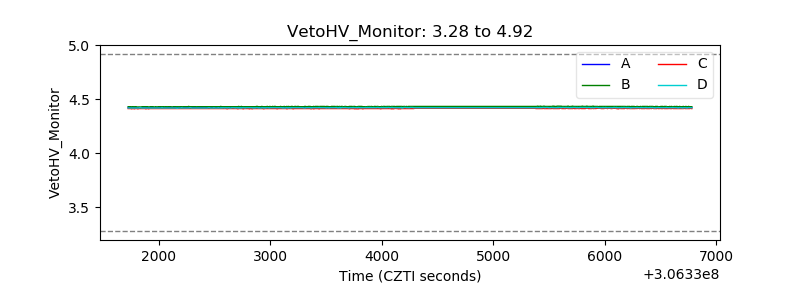

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

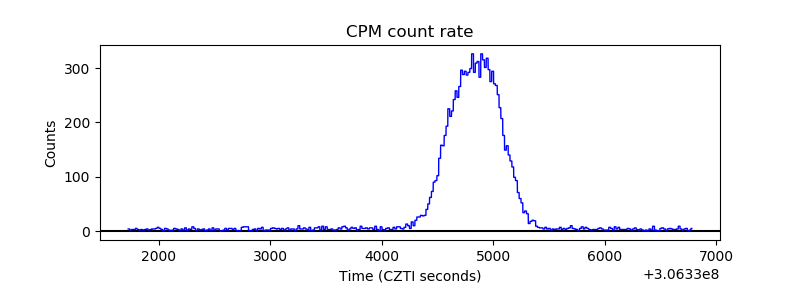

| _CPM_Rate |  |

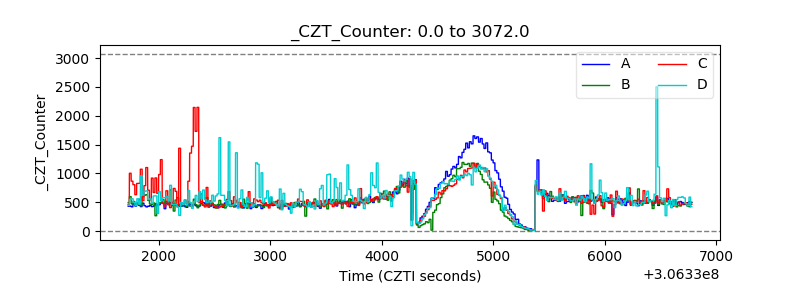

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

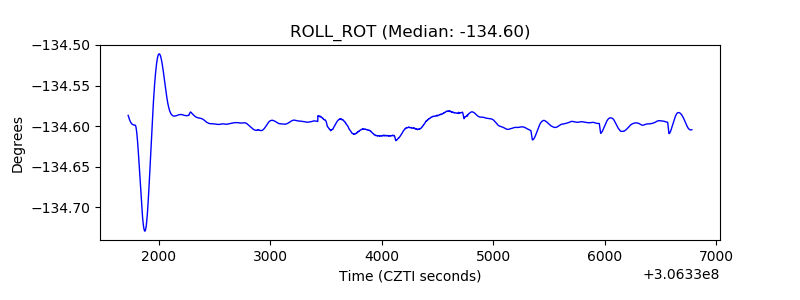

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
