| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_009T05_9000003164_21451cztM0_level2.evt | modeM0/AS1A06_009T05_9000003164_21451cztM0_level2_quad_clean.evt |
| Size (bytes) | 118,166,400 | 25,773,120 |
| Size | 112.7 MB | 24.6 MB |
| Events in quadrant A | 909,726 | 175,197 |
| Events in quadrant B | 795,965 | 179,656 |
| Events in quadrant C | 802,505 | 166,394 |
| Events in quadrant D | 979,561 | 161,299 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3745 | 1 |
| B | 0 | 3314 | 1 |
| C | 0 | 3347 | 1 |
| D | 0 | 3909 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1299 | 10 | 0.769823% |
| B | 1299 | 9 | 0.692841% |
| C | 1299 | 23 | 1.770593% |
| D | 1298 | 39 | 3.004622% |

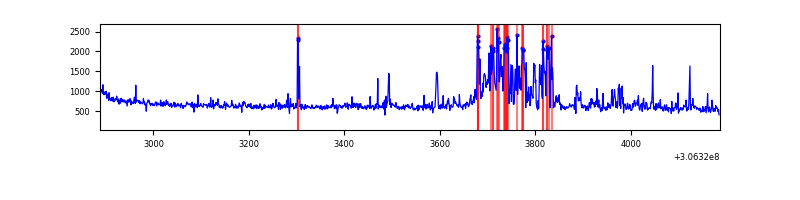

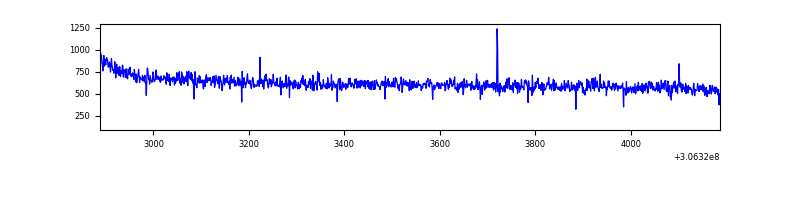

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1299 | 1299 | 0 | 0 | 0.00% | 0.00% |  |
| B | 1299 | 1299 | 0 | 0 | 0.00% | 0.00% |  |
| C | 1299 | 1299 | 0 | 0 | 0.00% | 0.00% |  |
| D | 1298 | 1298 | 28 | 28 | 2.16% | 2.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 47 | 103208 | 2431.65 | 208 | 205 | 42.4 |
| A | 8 | 205 | 3343 | 74.08 | 208 | 205 | 42.4 |
| A | 0 | 226 | 1846 | 38.74 | 208 | 205 | 42.4 |
| B | 0 | 229 | 4688 | 113.92 | 202 | 198 | 39.4 |
| B | 12 | 111 | 4181 | 101.06 | 202 | 198 | 39.4 |
| B | 11 | 111 | 3872 | 93.22 | 202 | 198 | 39.4 |
| C | 14 | 238 | 32187 | 705.67 | 194 | 195 | 45.3 |
| C | 3 | 233 | 11109 | 240.74 | 194 | 195 | 45.3 |
| C | 13 | 61 | 1329 | 25.01 | 194 | 195 | 45.3 |
| D | 1 | 20 | 105049 | 2138.77 | 199 | 193 | 49.0 |
| D | 14 | 34 | 75446 | 1534.95 | 199 | 193 | 49.0 |
| D | 14 | 35 | 22823 | 461.59 | 199 | 193 | 49.0 |

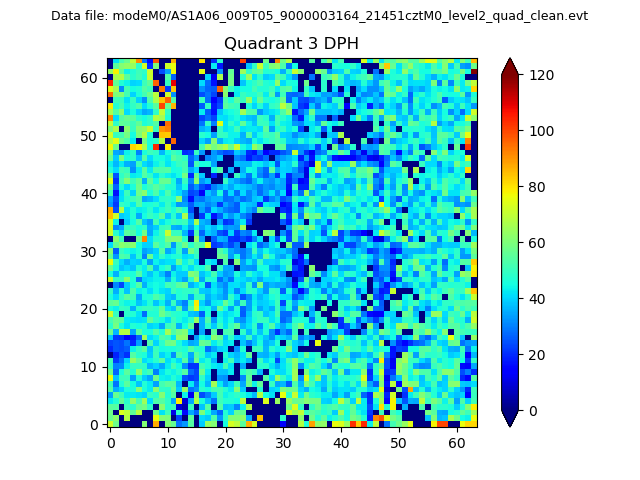

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

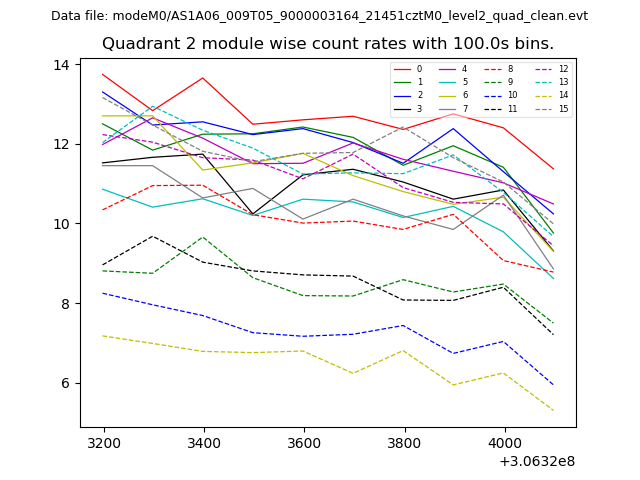

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

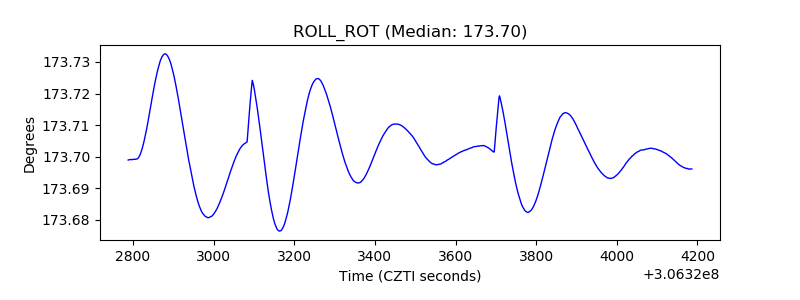

| _ROLL_ROT |  |

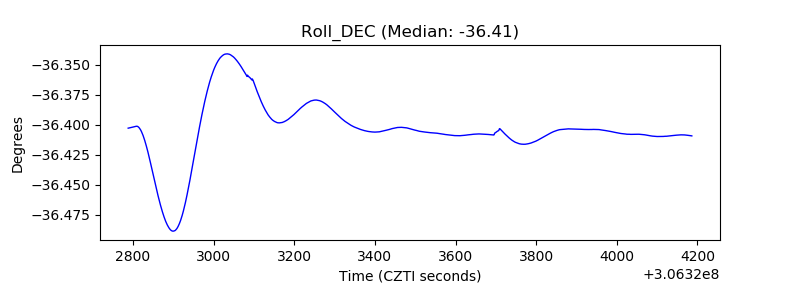

| _Roll_DEC |  |
| _Roll_RA |  |

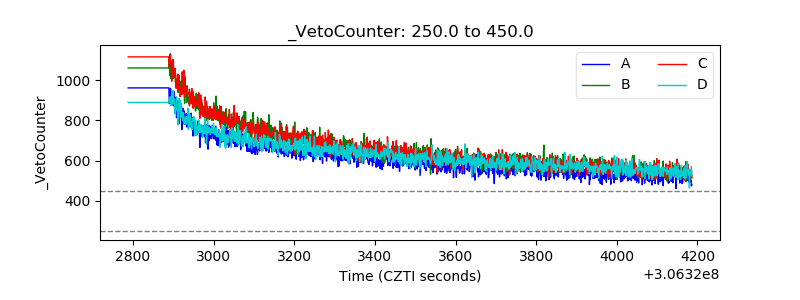

| Veto Counter |  |
