| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_138T01_9000003162_21451cztM0_level2.evt | modeM0/AS1T03_138T01_9000003162_21451cztM0_level2_quad_clean.evt |
| Size (bytes) | 373,648,320 | 67,173,120 |
| Size | 356.3 MB | 64.1 MB |
| Events in quadrant A | 2,700,410 | 433,720 |
| Events in quadrant B | 2,708,340 | 440,737 |
| Events in quadrant C | 2,698,642 | 409,843 |
| Events in quadrant D | 2,874,725 | 405,321 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10916 | 1 |
| B | 0 | 10865 | 1 |
| C | 0 | 10809 | 1 |
| D | 0 | 11464 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 98 | 0 |
| B | 0 | 98 | 0 |
| C | 0 | 98 | 0 |
| D | 0 | 98 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4907 | 75 | 1.528429% |
| B | 4907 | 83 | 1.691461% |
| C | 4907 | 94 | 1.915631% |
| D | 4907 | 63 | 1.283880% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4906 | 4906 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4906 | 4906 | 0 | 0 | 0.00% | 0.00% |  |
| C | 4906 | 4906 | 1 | 1 | 0.02% | 0.02% |  |
| D | 4906 | 4906 | 15 | 15 | 0.31% | 0.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 47 | 38885 | 279.83 | 690 | 678 | 136.5 |
| A | 13 | 254 | 7310 | 48.57 | 690 | 678 | 136.5 |
| A | 0 | 226 | 5842 | 37.82 | 690 | 678 | 136.5 |
| B | 0 | 229 | 22620 | 171.11 | 682 | 667 | 128.3 |
| B | 0 | 197 | 18982 | 142.75 | 682 | 667 | 128.3 |
| B | 12 | 111 | 14949 | 111.32 | 682 | 667 | 128.3 |
| C | 14 | 238 | 105117 | 695.17 | 649 | 654 | 150.3 |
| C | 3 | 233 | 58076 | 382.13 | 649 | 654 | 150.3 |
| C | 13 | 61 | 4414 | 25.02 | 649 | 654 | 150.3 |
| D | 14 | 35 | 126277 | 793.41 | 661 | 646 | 158.3 |
| D | 12 | 235 | 89778 | 562.9 | 661 | 646 | 158.3 |
| D | 1 | 20 | 65535 | 409.8 | 661 | 646 | 158.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

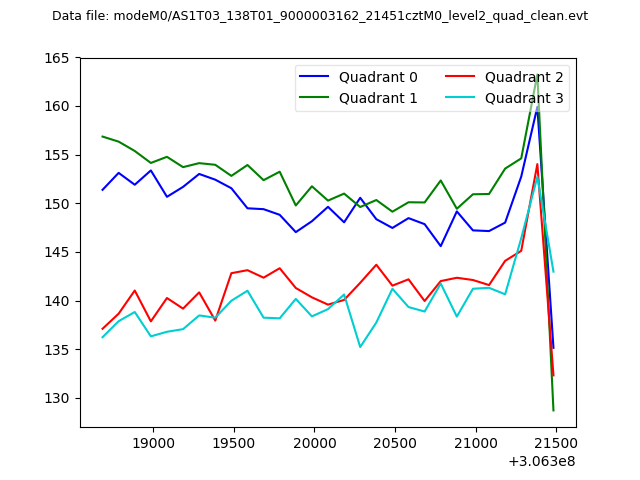

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

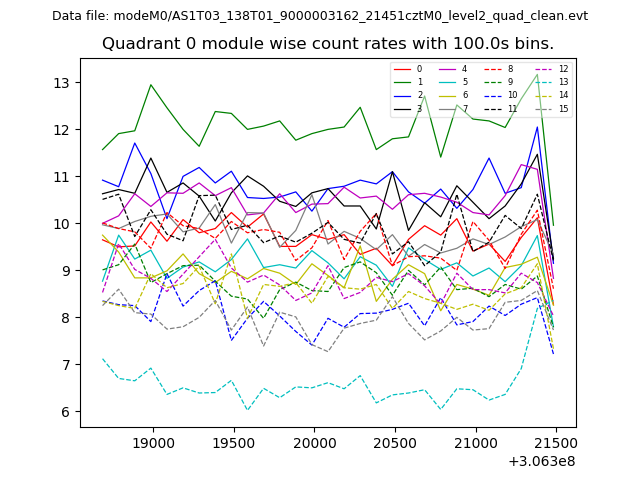

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

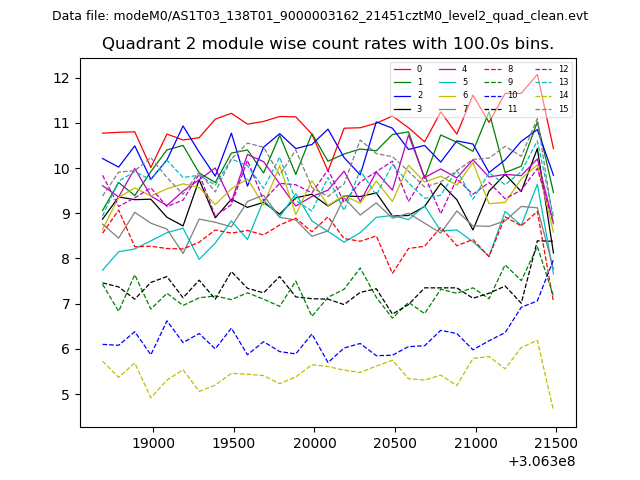

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

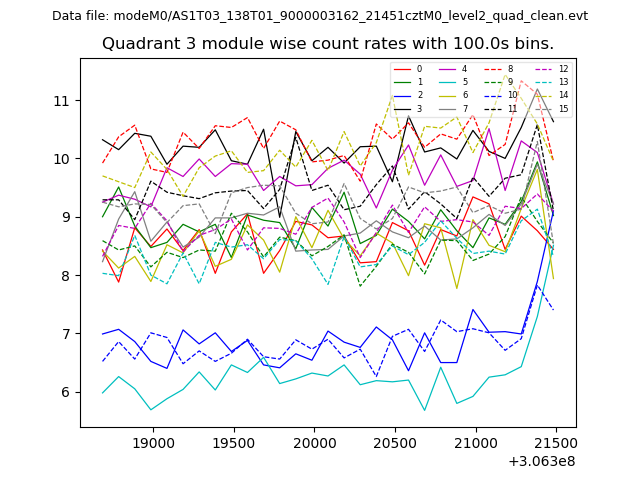

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

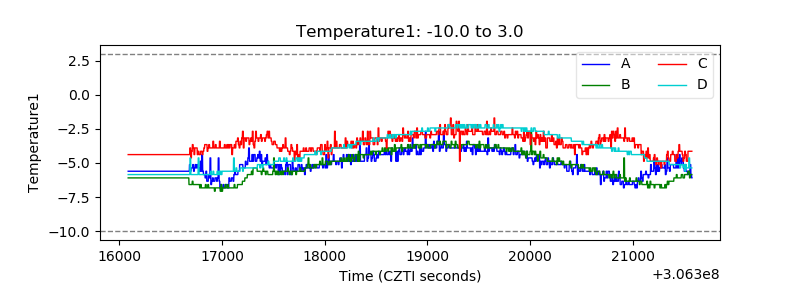

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

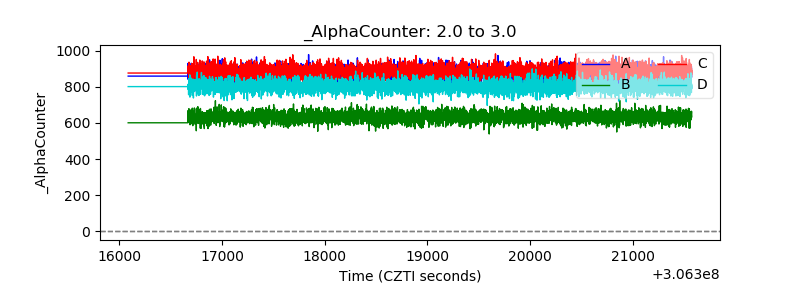

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

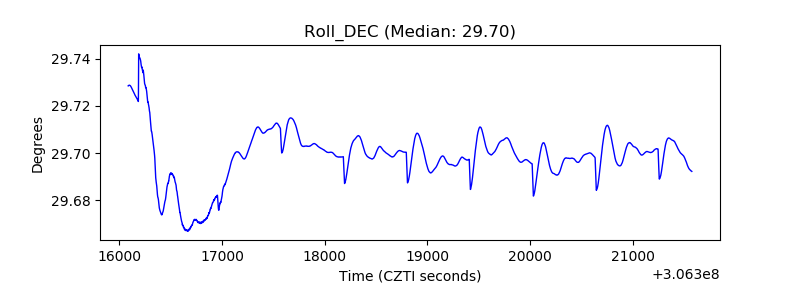

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
