| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_005T09_9000003168_21463cztM0_level2.evt | modeM0/AS1A06_005T09_9000003168_21463cztM0_level2_quad_clean.evt |
| Size (bytes) | 480,242,880 | 75,873,600 |
| Size | 458.0 MB | 72.4 MB |
| Events in quadrant A | 3,119,633 | 470,386 |
| Events in quadrant B | 3,315,642 | 484,521 |
| Events in quadrant C | 3,266,351 | 465,938 |
| Events in quadrant D | 4,415,305 | 437,275 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13105 | 2 |
| B | 0 | 13643 | 2 |
| C | 0 | 13534 | 2 |
| D | 0 | 17183 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6294 | 18 | 0.285987% |
| B | 6294 | 42 | 0.667302% |
| C | 6294 | 52 | 0.826184% |
| D | 6294 | 251 | 3.987925% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7479 | 6294 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7479 | 6294 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7479 | 6294 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7479 | 6294 | 228 | 228 | 3.05% | 3.62% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 8429 | 47.29 | 808 | 793 | 161.5 |
| A | 0 | 226 | 6733 | 36.78 | 808 | 793 | 161.5 |
| A | 3 | 137 | 6526 | 35.5 | 808 | 793 | 161.5 |
| B | 0 | 197 | 53368 | 344.97 | 815 | 799 | 152.4 |
| B | 0 | 190 | 27592 | 175.82 | 815 | 799 | 152.4 |
| B | 0 | 230 | 25367 | 161.22 | 815 | 799 | 152.4 |
| C | 14 | 238 | 125119 | 680.13 | 791 | 798 | 182.8 |
| C | 3 | 233 | 36313 | 194.29 | 791 | 798 | 182.8 |
| C | 10 | 23 | 24089 | 127.42 | 791 | 798 | 182.8 |
| D | 13 | 174 | 557032 | 2981.23 | 781 | 761 | 186.6 |
| D | 1 | 52 | 381922 | 2042.76 | 781 | 761 | 186.6 |
| D | 1 | 20 | 266679 | 1425.14 | 781 | 761 | 186.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

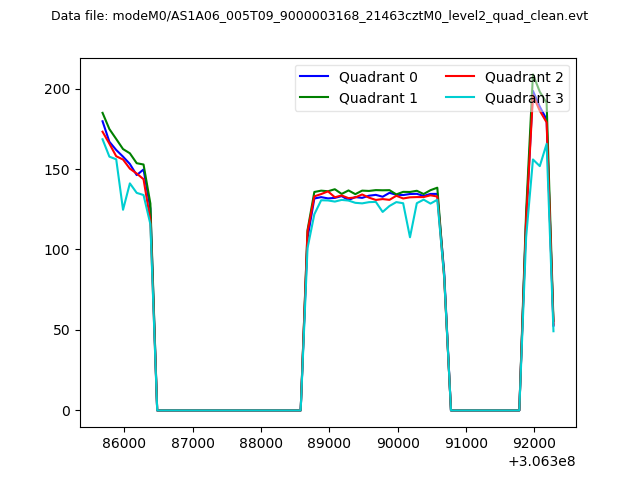

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

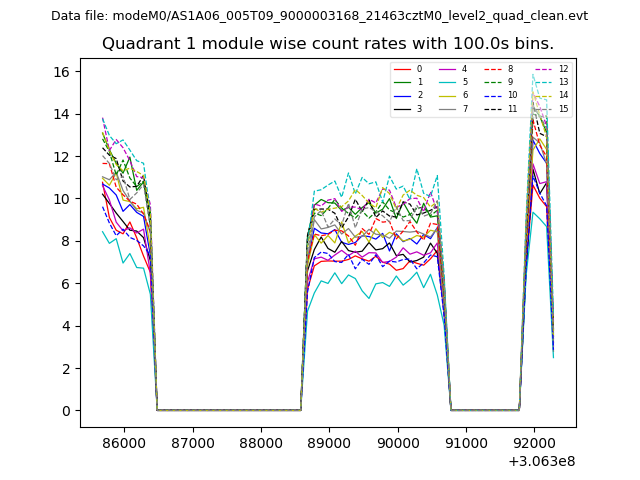

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

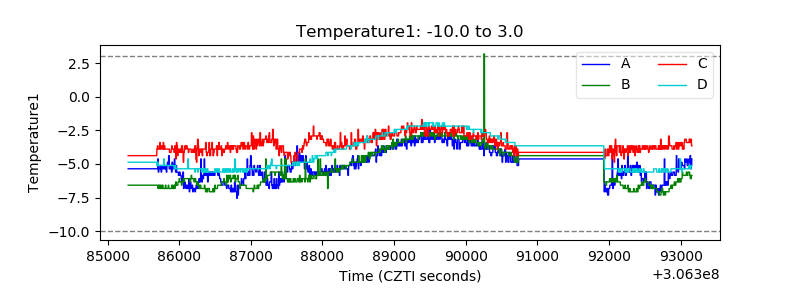

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

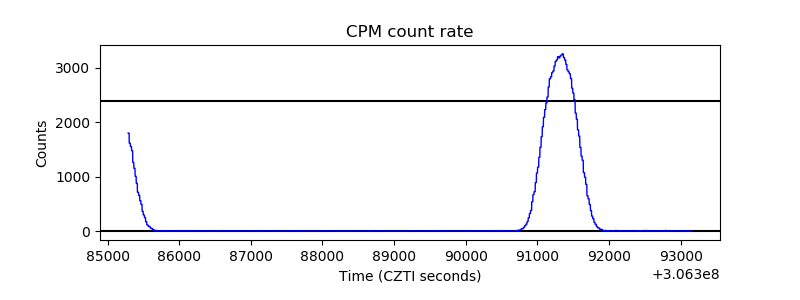

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

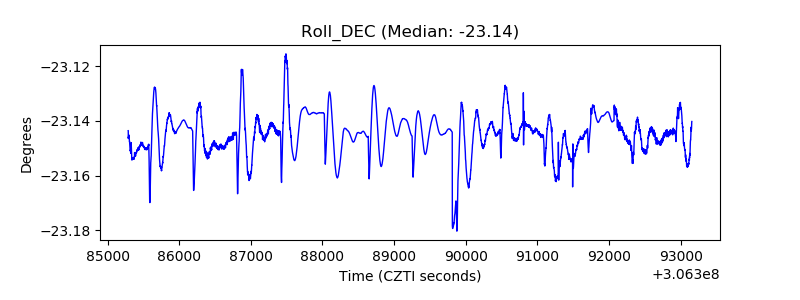

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
