| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_005T09_9000003168_21644cztM0_level2.evt | modeM0/AS1A06_005T09_9000003168_21644cztM0_level2_quad_clean.evt |
| Size (bytes) | 419,068,800 | 72,786,240 |
| Size | 399.7 MB | 69.4 MB |
| Events in quadrant A | 2,828,158 | 451,170 |
| Events in quadrant B | 3,156,137 | 461,376 |
| Events in quadrant C | 3,141,587 | 439,220 |
| Events in quadrant D | 3,154,793 | 430,481 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 125 | 3 |
| B | 0 | 126 | 4 |
| C | 0 | 127 | 3 |
| D | 0 | 126 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12715 | 265 |
| B | 0 | 13368 | 300 |
| C | 0 | 13511 | 266 |
| D | 0 | 13810 | 291 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6033 | 217 | 3.596884% |
| B | 6034 | 272 | 4.507789% |
| C | 6031 | 323 | 5.355662% |
| D | 6038 | 232 | 3.842332% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6109 | 6036 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6105 | 6037 | 23 | 23 | 0.38% | 0.38% |  |
| C | 6101 | 6036 | 78 | 78 | 1.28% | 1.29% |  |
| D | 6109 | 6041 | 51 | 51 | 0.83% | 0.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 8990 | 55.11 | 733 | 715 | 150.1 |
| A | 0 | 226 | 6383 | 37.75 | 733 | 715 | 150.1 |
| A | 3 | 137 | 6365 | 37.63 | 733 | 715 | 150.1 |
| B | 0 | 229 | 66440 | 467.51 | 730 | 710 | 140.6 |
| B | 3 | 64 | 59812 | 420.37 | 730 | 710 | 140.6 |
| B | 0 | 189 | 55988 | 393.17 | 730 | 710 | 140.6 |
| C | 3 | 233 | 257263 | 1552.26 | 702 | 704 | 165.3 |
| C | 14 | 238 | 109340 | 657.28 | 702 | 704 | 165.3 |
| C | 10 | 23 | 22341 | 130.91 | 702 | 704 | 165.3 |
| D | 13 | 153 | 146069 | 837.22 | 712 | 691 | 173.6 |
| D | 1 | 52 | 132502 | 759.09 | 712 | 691 | 173.6 |
| D | 2 | 136 | 64254 | 366.05 | 712 | 691 | 173.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

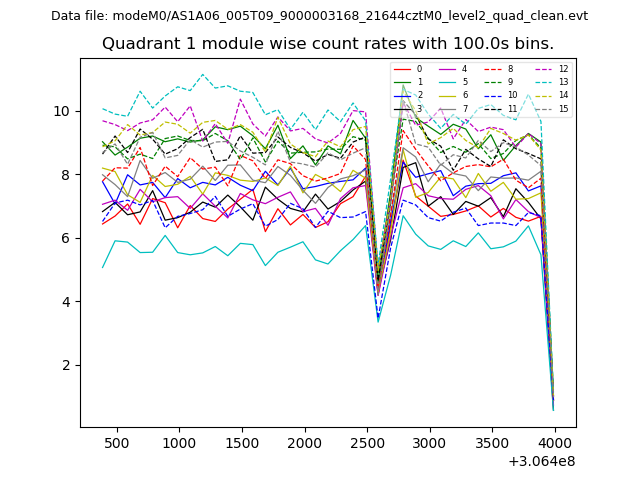

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

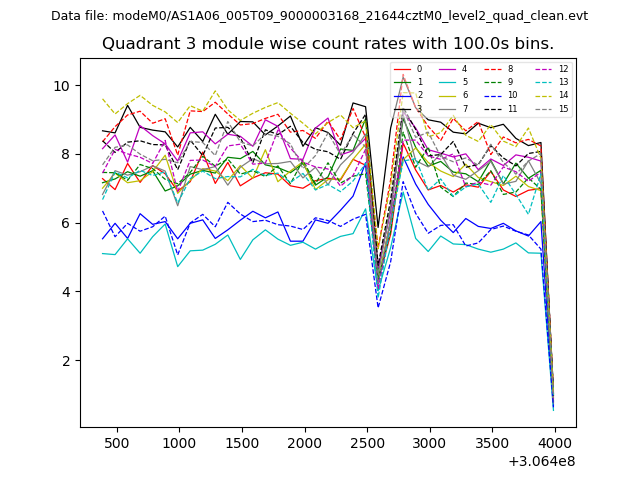

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

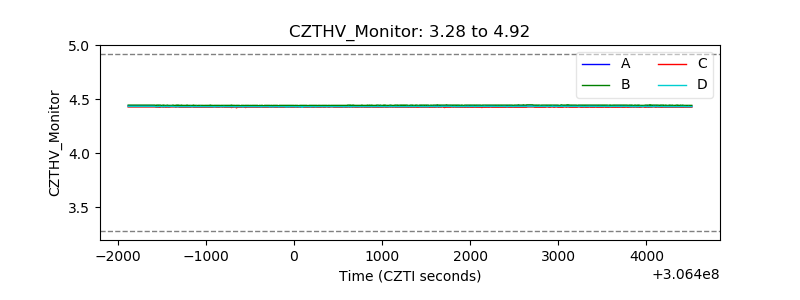

| CZT HV Monitor |  |

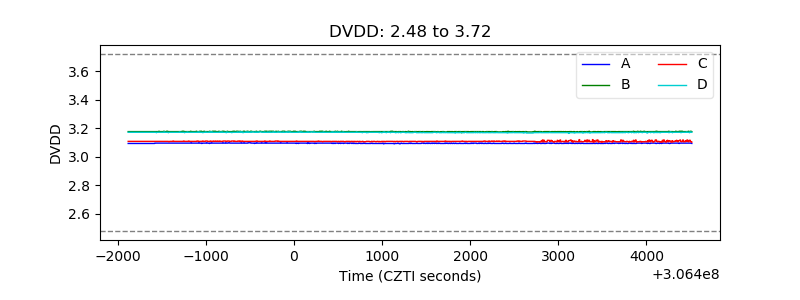

| D_VDD |  |

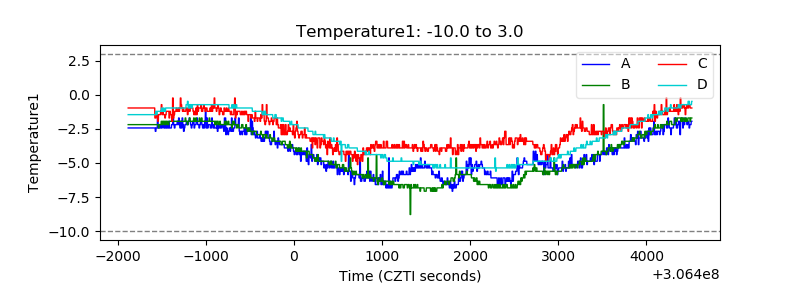

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

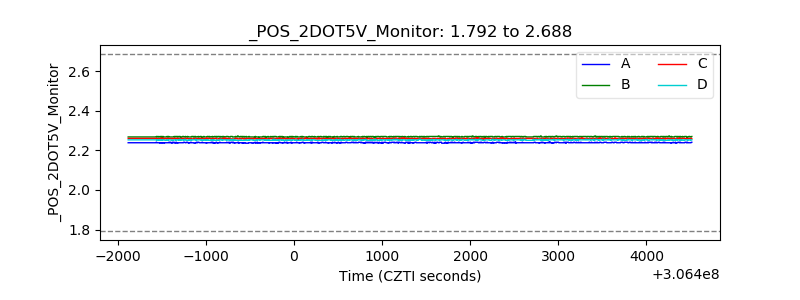

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

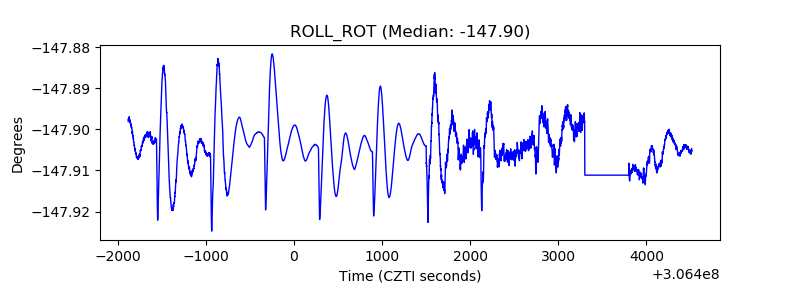

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

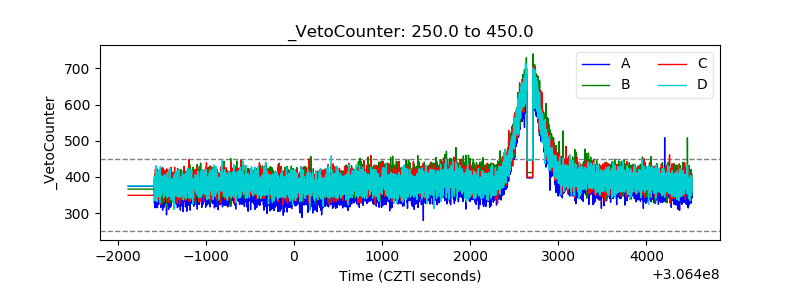

| Veto Counter |  |
