| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_009T02_9000003170_21474cztM0_level2.evt | modeM0/AS1A06_009T02_9000003170_21474cztM0_level2_quad_clean.evt |
| Size (bytes) | 843,511,680 | 135,262,080 |
| Size | 804.4 MB | 129.0 MB |
| Events in quadrant A | 5,112,627 | 847,514 |
| Events in quadrant B | 5,615,370 | 854,460 |
| Events in quadrant C | 5,379,977 | 830,117 |
| Events in quadrant D | 8,681,441 | 790,415 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 228 | 0 |
| B | 0 | 228 | 0 |
| C | 0 | 228 | 0 |
| D | 0 | 228 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22634 | 2 |
| B | 0 | 24000 | 2 |
| C | 0 | 23287 | 2 |
| D | 0 | 33257 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 11180 | 41 | 0.366726% |
| B | 11180 | 78 | 0.697674% |
| C | 11180 | 100 | 0.894454% |
| D | 11179 | 596 | 5.331425% |

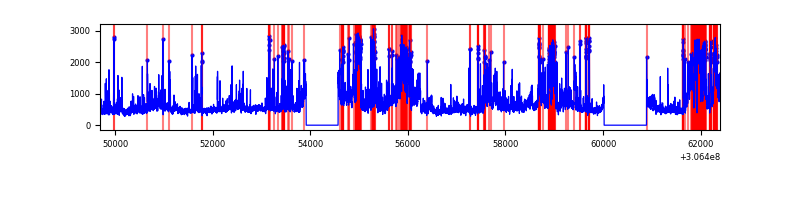

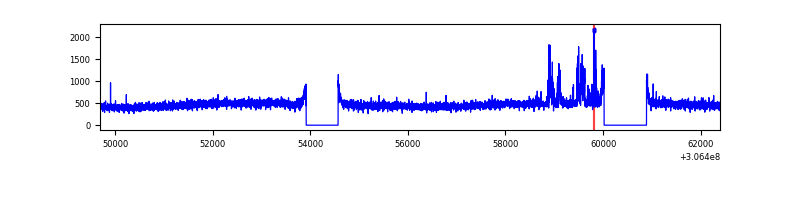

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 12705 | 11181 | 0 | 0 | 0.00% | 0.00% |  |
| B | 12705 | 11181 | 11 | 11 | 0.09% | 0.10% |  |
| C | 12705 | 11180 | 2 | 2 | 0.02% | 0.02% |  |
| D | 12704 | 11180 | 554 | 554 | 4.36% | 4.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 16998 | 58.91 | 1324 | 1295 | 266.5 |
| A | 0 | 226 | 11222 | 37.24 | 1324 | 1295 | 266.5 |
| A | 3 | 137 | 11043 | 36.57 | 1324 | 1295 | 266.5 |
| B | 0 | 228 | 171928 | 675.93 | 1323 | 1292 | 252.4 |
| B | 0 | 230 | 80310 | 313.01 | 1323 | 1292 | 252.4 |
| B | 0 | 190 | 61942 | 240.25 | 1323 | 1292 | 252.4 |
| C | 3 | 233 | 230033 | 770.98 | 1269 | 1276 | 296.7 |
| C | 14 | 238 | 200407 | 671.13 | 1269 | 1276 | 296.7 |
| C | 13 | 61 | 9012 | 26.07 | 1269 | 1276 | 296.7 |
| D | 1 | 20 | 2472936 | 7997.34 | 1265 | 1227 | 309.1 |
| D | 13 | 174 | 635585 | 2052.5 | 1265 | 1227 | 309.1 |
| D | 1 | 52 | 335048 | 1080.09 | 1265 | 1227 | 309.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

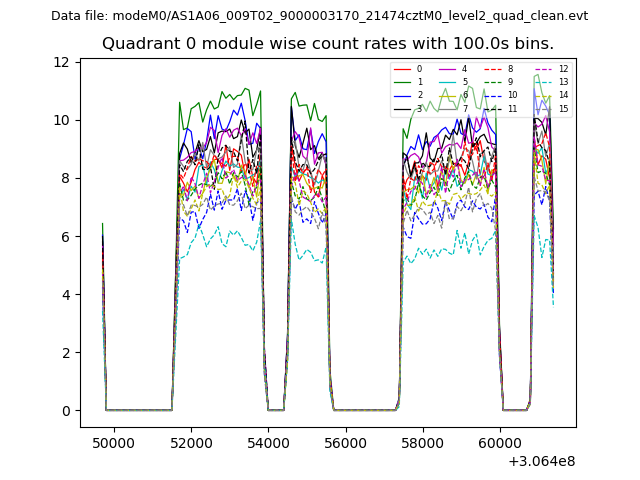

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

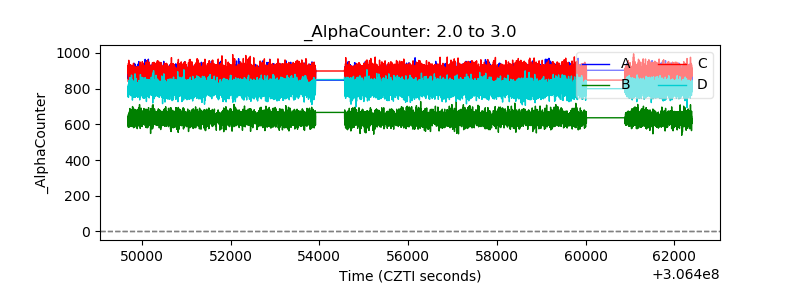

| Alpha Counter |  |
| _CPM_Rate |  |

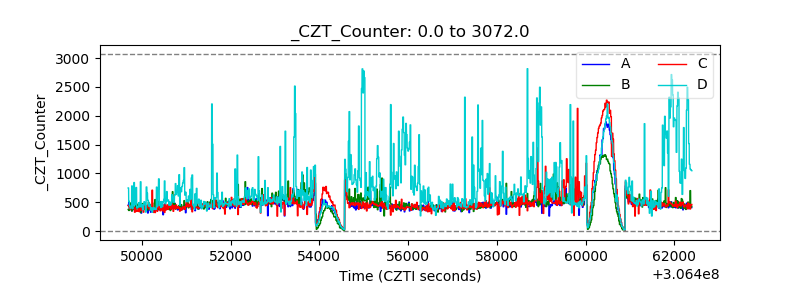

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

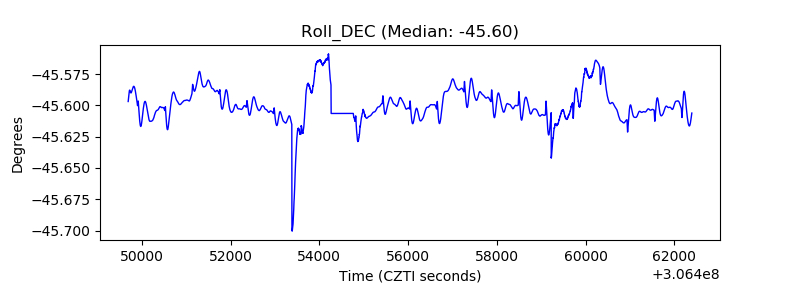

| _Roll_DEC |  |
| _Roll_RA |  |

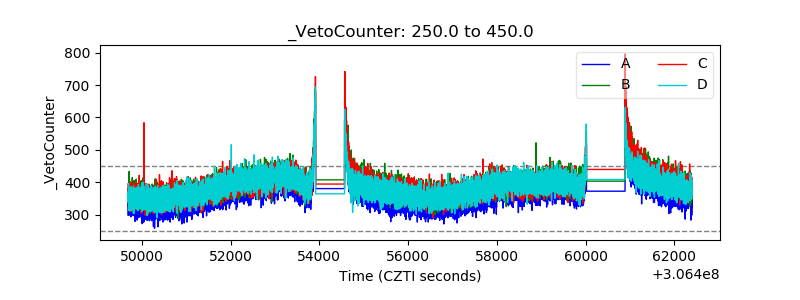

| Veto Counter |  |
