| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_009T02_9000003170_21475cztM0_level2.evt | modeM0/AS1A06_009T02_9000003170_21475cztM0_level2_quad_clean.evt |
| Size (bytes) | 246,484,800 | 26,072,640 |
| Size | 235.1 MB | 24.9 MB |
| Events in quadrant A | 1,331,576 | 145,550 |
| Events in quadrant B | 1,392,338 | 150,460 |
| Events in quadrant C | 1,377,447 | 143,157 |
| Events in quadrant D | 3,158,887 | 136,592 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 58 | 0 |
| B | 0 | 58 | 0 |
| C | 0 | 58 | 0 |
| D | 0 | 58 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6040 | 1 |
| B | 0 | 6116 | 1 |
| C | 0 | 6062 | 1 |
| D | 0 | 11443 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2994 | 3 | 0.100200% |
| B | 2994 | 6 | 0.200401% |
| C | 2994 | 18 | 0.601202% |
| D | 2994 | 300 | 10.020040% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2994 | 2994 | 0 | 0 | 0.00% | 0.00% |  |
| B | 2994 | 2994 | 0 | 0 | 0.00% | 0.00% |  |
| C | 2994 | 2994 | 0 | 0 | 0.00% | 0.00% |  |

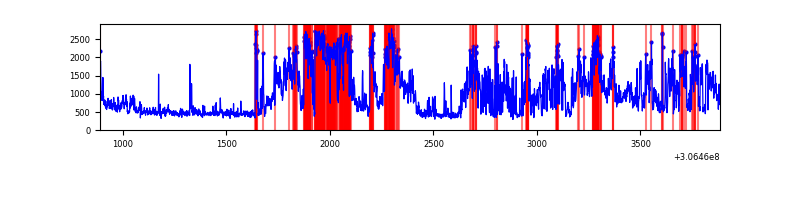

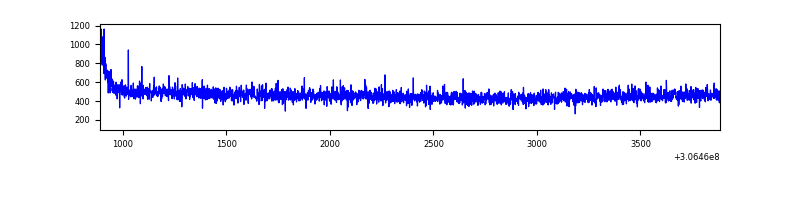

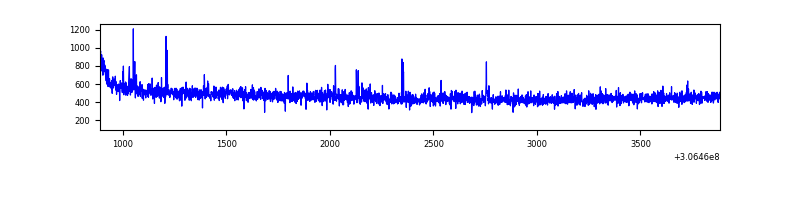

| D | 2994 | 2994 | 307 | 307 | 10.25% | 10.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 4252 | 55.7 | 345 | 337 | 70.3 |
| A | 3 | 137 | 2916 | 36.69 | 345 | 337 | 70.3 |
| A | 0 | 226 | 2867 | 36.0 | 345 | 337 | 70.3 |
| B | 0 | 230 | 13769 | 198.16 | 349 | 340 | 67.8 |
| B | 12 | 111 | 8091 | 114.37 | 349 | 340 | 67.8 |
| B | 11 | 111 | 6945 | 97.46 | 349 | 340 | 67.8 |
| C | 14 | 238 | 54369 | 673.81 | 336 | 338 | 80.2 |
| C | 3 | 233 | 10831 | 130.86 | 336 | 338 | 80.2 |
| C | 13 | 61 | 2437 | 26.18 | 336 | 338 | 80.2 |
| D | 1 | 20 | 1790901 | 22399.11 | 327 | 318 | 79.9 |
| D | 13 | 174 | 68177 | 848.88 | 327 | 318 | 79.9 |
| D | 13 | 153 | 32124 | 397.87 | 327 | 318 | 79.9 |

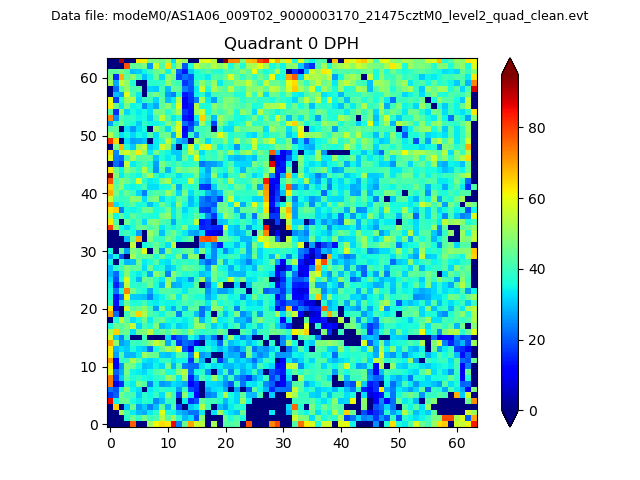

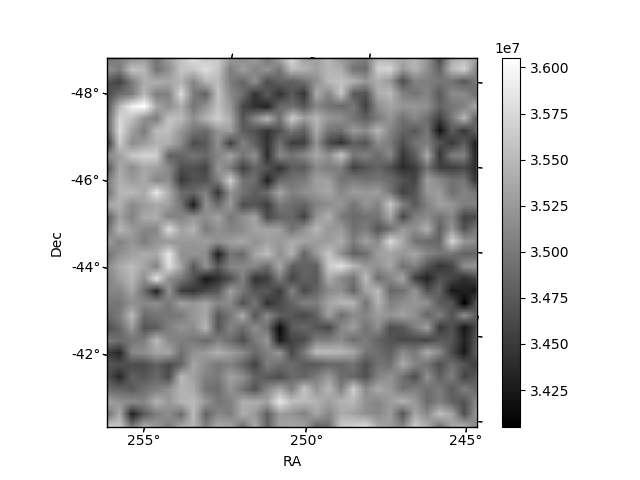

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

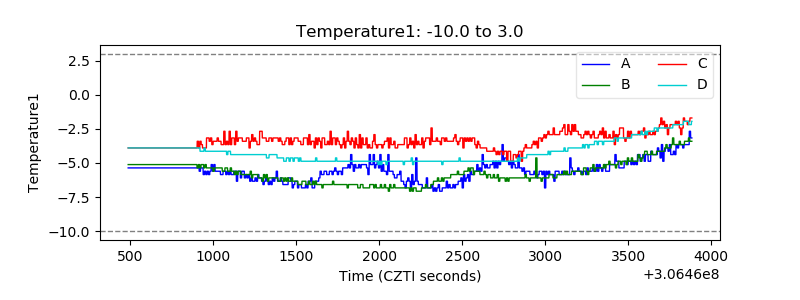

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

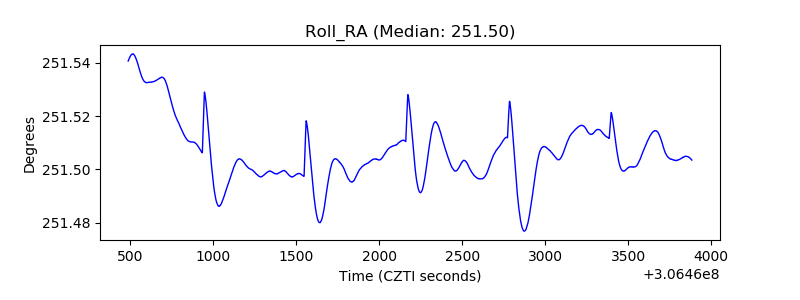

| _Roll_RA |  |

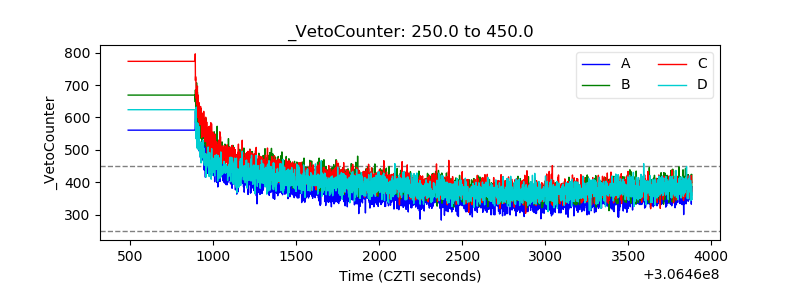

| Veto Counter |  |
