| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_138T02_9000003172_21477cztM0_level2.evt | modeM0/AS1T03_138T02_9000003172_21477cztM0_level2_quad_clean.evt |
| Size (bytes) | 336,081,600 | 60,609,600 |
| Size | 320.5 MB | 57.8 MB |
| Events in quadrant A | 2,294,641 | 380,962 |
| Events in quadrant B | 2,386,794 | 390,401 |
| Events in quadrant C | 2,305,643 | 364,400 |
| Events in quadrant D | 2,855,368 | 353,475 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9951 | 0 |
| B | 0 | 10190 | 0 |
| C | 0 | 9975 | 0 |
| D | 0 | 11701 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4924 | 4 | 0.081235% |
| B | 4924 | 13 | 0.264013% |
| C | 4924 | 17 | 0.345248% |
| D | 4924 | 52 | 1.056052% |

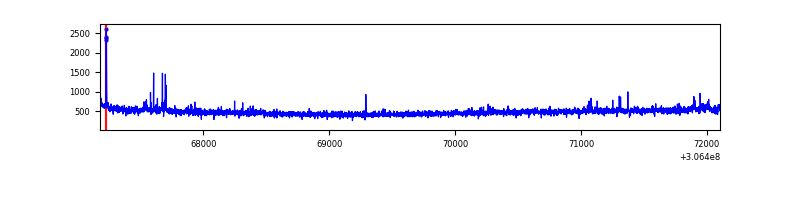

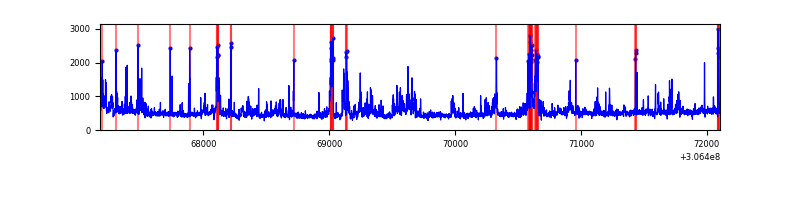

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4924 | 4924 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4924 | 4924 | 4 | 4 | 0.08% | 0.08% |  |
| C | 4924 | 4924 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4924 | 4924 | 53 | 53 | 1.08% | 1.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 7069 | 53.99 | 595 | 583 | 120.1 |
| A | 0 | 226 | 5274 | 39.05 | 595 | 583 | 120.1 |
| A | 3 | 137 | 4844 | 35.47 | 595 | 583 | 120.1 |
| B | 0 | 230 | 19564 | 166.95 | 593 | 577 | 113.7 |
| B | 0 | 197 | 14323 | 120.87 | 593 | 577 | 113.7 |
| B | 12 | 111 | 13585 | 114.38 | 593 | 577 | 113.7 |
| C | 14 | 238 | 89474 | 665.48 | 567 | 571 | 133.6 |
| C | 13 | 61 | 4063 | 26.14 | 567 | 571 | 133.6 |
| C | 3 | 233 | 2188 | 12.1 | 567 | 571 | 133.6 |
| D | 1 | 20 | 314121 | 2265.08 | 571 | 555 | 138.4 |
| D | 13 | 174 | 123159 | 885.64 | 571 | 555 | 138.4 |
| D | 7 | 38 | 60020 | 429.55 | 571 | 555 | 138.4 |

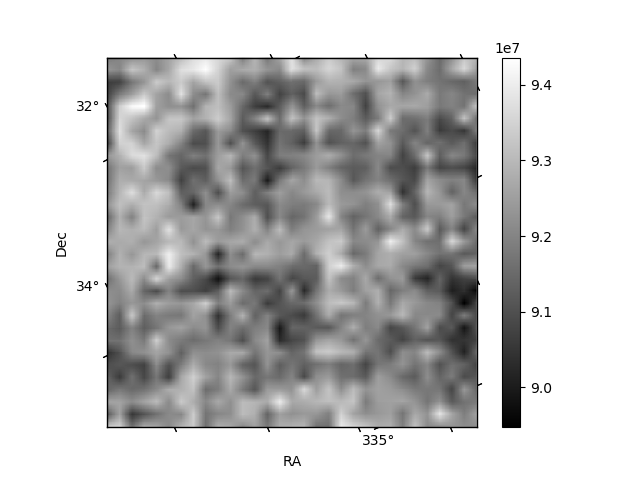

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

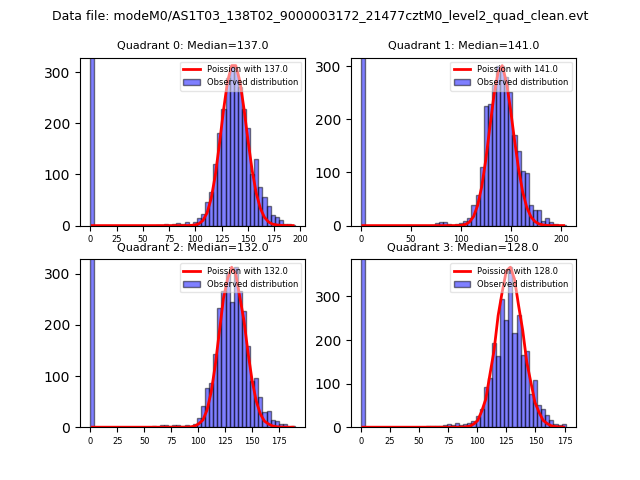

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

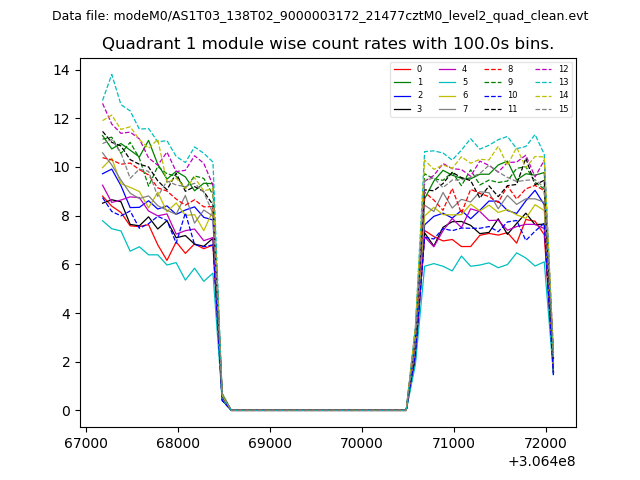

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

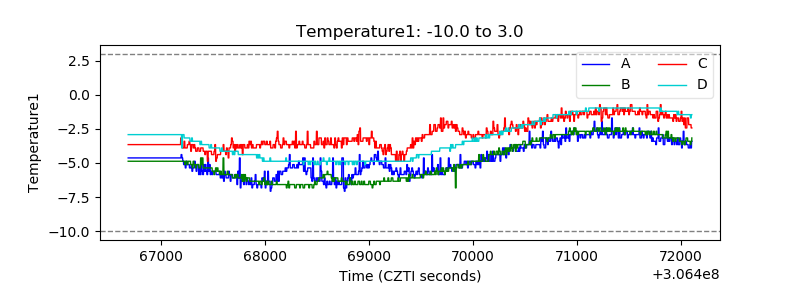

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

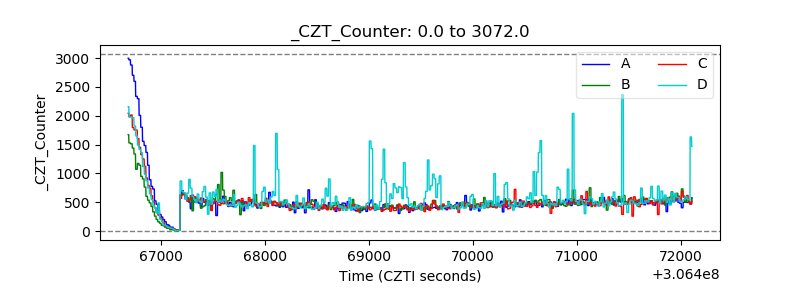

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

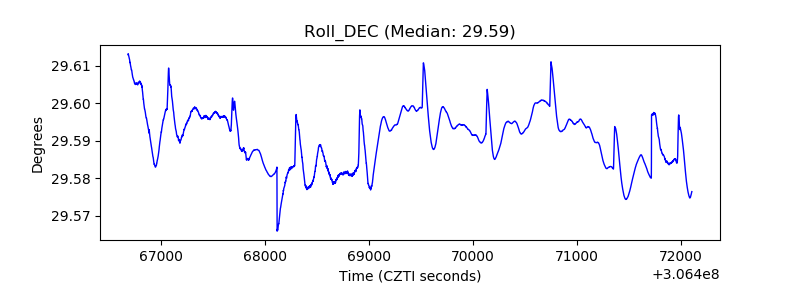

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
